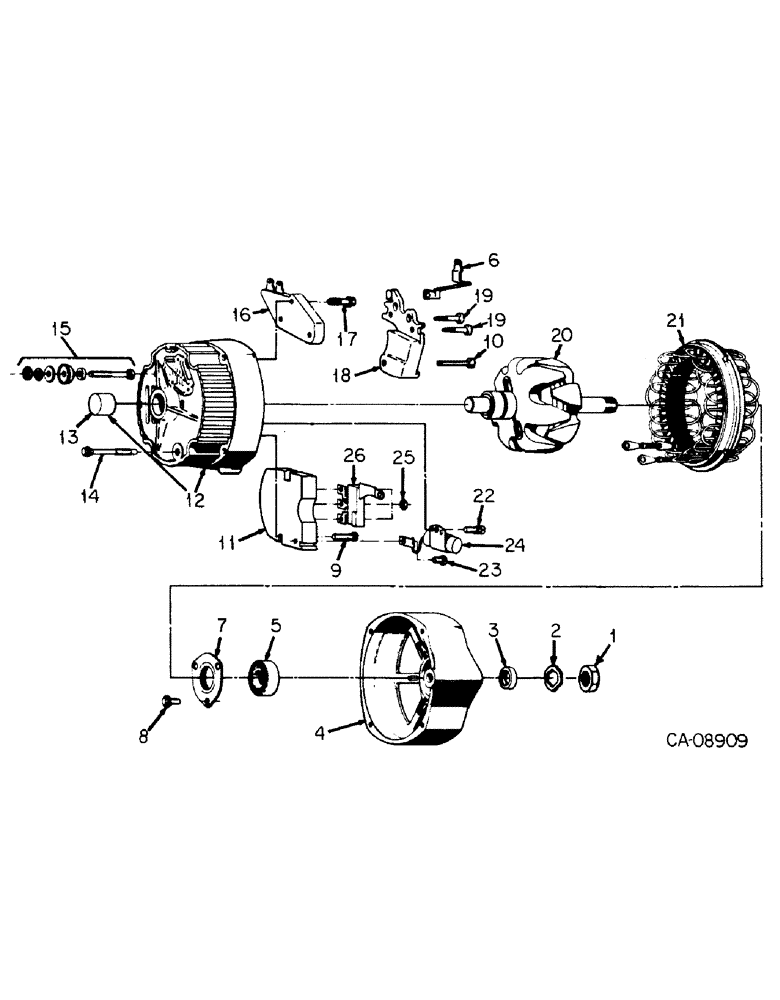

Запчасти Case IH 7488 (08-04) - ELECTRICAL, ALTERNATOR-GENERATOR, DELCO-REMY (06) - ELECTRICAL

1105538

GENERATOR

ALTERNATOR GENERATOR ASSY, 105 ampere

1шт.

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

103808A1GV

ALTERNATOR

Value, 12V, 105A

1шт.

103808A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

103808A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1915172

NUT

drive shaft end

1шт.

2

1941978

WASHER

drive shaft lock

1шт.

3

1985999

COLLAR

drive end shaft, outside

1шт.

4

1986590

FRAME

drive end

1шт.

5

908419

BEARING

drive end

1шт.

6

1979726

TERMINAL CONNECTOR

TERMINAL, relay

1шт.

7

1911263

LARGE PLATE

PLATE, drive end bearing retainer

1шт.

8

1975736

SCREW

brg retainer plate attaching

3шт.

9

1984458

SCREW

rectifier support

1шт.

10

1979727

SCREW

brush holder pivot

1шт.

11

1979721

SUPPORT

rectifier

1шт.

12

1979719

PACKAGE

FRAME, slip ring end, Includes Ref: 13

1шт.

13

9439542

BEARING

slip ring end roller

1шт.

14

1956975

BOLT

frame attaching

1шт.

15

1975471

PACKAGE

battery output terminal

1шт.

16

1988949

REGULATOR

voltage

1шт.

17

1894586

SCREW

W/LOCK WASHER, reg attaching end

1шт.

18

1979724

HOLDER

BRUSH & HOLDER ASSY

1шт.

19

1876681

SCREW

ASSY, brush holder insulated

2шт.

20

1975333

ROTOR

ASSY

1шт.

21

1979722

STATOR

ASSY

1шт.

22

1851612

SCREW

capacitor bracket

1шт.

23

1851612

SCREW

capacitor lead attaching

1шт.

24

1978146

CAPACITOR

W/BRACKET ASSY

1шт.

25

453996

NUT,#8-32

no. 8 mach screw type 1

1шт.

26

1984459

RECTIFIER

diode trio

1шт.
