Запчасти Case IH 7488 (08-01) - ELECTRICAL, BATTERY TRAY (06) - ELECTRICAL

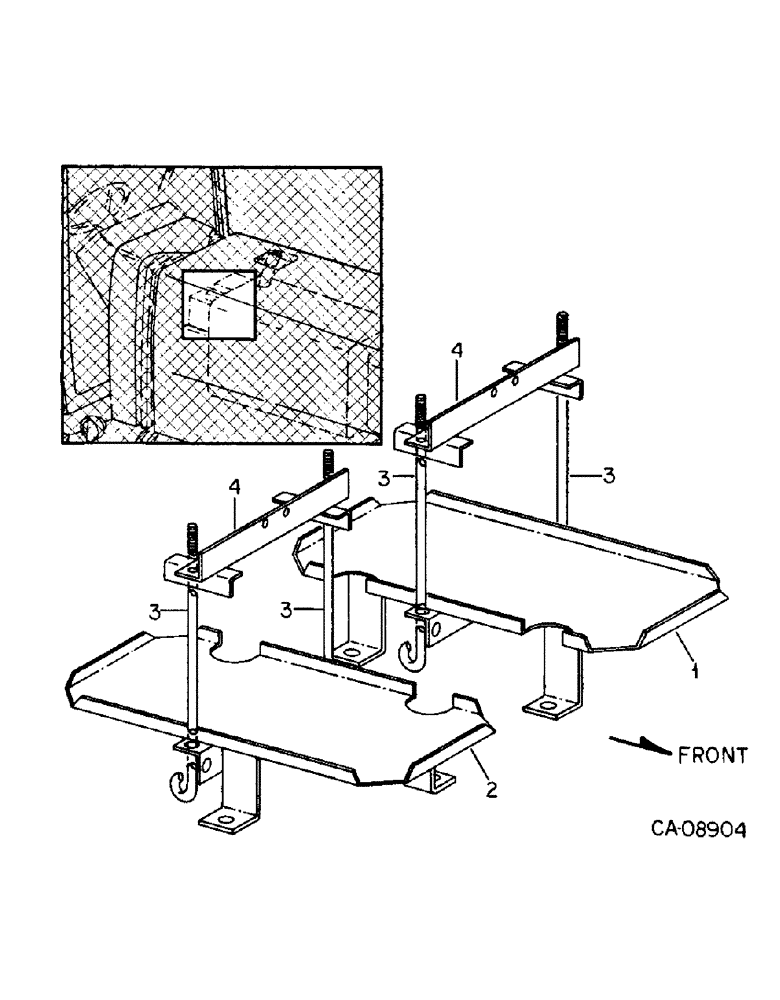

Схема запчастей Case IH 7488 - (08-01) - ELECTRICAL, BATTERY TRAY (06) - ELECTRICAL
3
1
4
4
3
2
3
3

Артикул

Название

Примечание

Количество

1

1268956C1

TRAY ASSY.

TRAY ASSY, battery LH

1шт.

31068R1

BOLT,Hex Flange, M12 x 1.75 x 25mm, Grade 10.9

M12 x 25 phc cl 10.9 flg/hd

3шт.

2

1268953C1

TRAY ASSY.

TRAY ASSY, battery RH

1шт.

31068R1

BOLT,Hex Flange, M12 x 1.75 x 25mm, Grade 10.9

M12 x 25 phc cl 10.9 flg/hd

3шт.

3

1255734C2

BOLT,5/16" - 18 x 242mm

BOLT, battery hold down

4шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

4шт.

4

1269249C1

BRACKET

ASSY, battery hold down

2шт.

Выбрано товаров: 7
