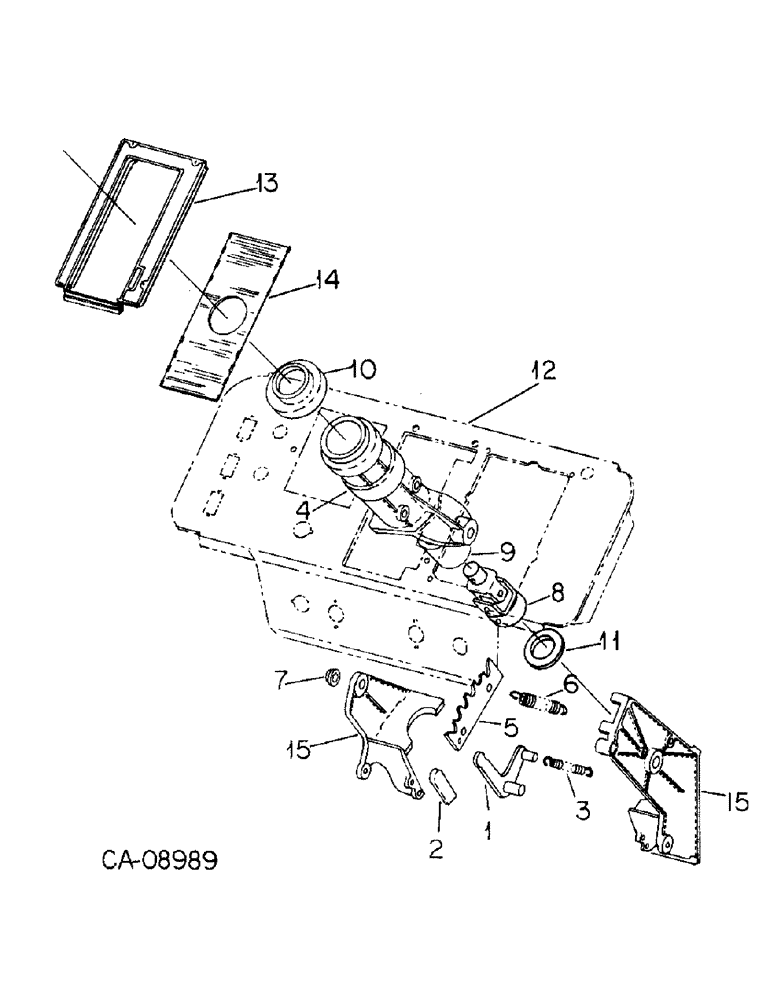

Запчасти Case IH 7488 (05-02) - STEERING, TILT-TELESCOPING STEERING (04) - STEERING

1

148904C1

LEVER

ASSY, tilt steering lock

1шт.

2

1259793C1

GRIP

tilt steering lock, knob

1шт.

3

538321R1

SPRING

lever detent

1шт.

4

148422C3

HOUSING

tilt steering support

1шт.

5

148915C1

PLATE

tilt steering detent

1шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

2шт.

6

148480C1

SPRING

tilt wheel support

1шт.

7

148920C1

BUSHING

tilt wheel support

2шт.

931492R1

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

M12 x 50 pln class 8.8

2шт.

933966R1

LOCK WASHER,M12

WASHER, 12MM lock

2шт.

8

148431C1

JOINT

steering universal

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

9

148424C2

BUSHING,19.1mm ID x 35.05mm OD x 19.05mm L

steering tube inner

2шт.

10

148921C1

CAP

steering column

1шт.

11

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

hand pump shaft

1шт.

12

PANEL ASSY, instrument, Refer to instrument panel and gages group 11

1шт.

13

148409C1

SUPPORT

TRACK, tilt wheel support

1шт.

14

148411C2

COVER

tilt wheel

1шт.

103957C1

NUT

speed type J

3шт.

1270762C1

SELF-TAP SCREW

#10 x 3/4 p/hd polyseal

3шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

2шт.

15

148426C91

SUPPORT

ASSY, tilt steering

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

30910R1

NUT,M8, Cl 10

M8 class 10

2шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

1шт.
