(07-47) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF CONTROLS

Запчасти Case IH 7488 (07-47) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF CONTROLS (04) - Drive Train

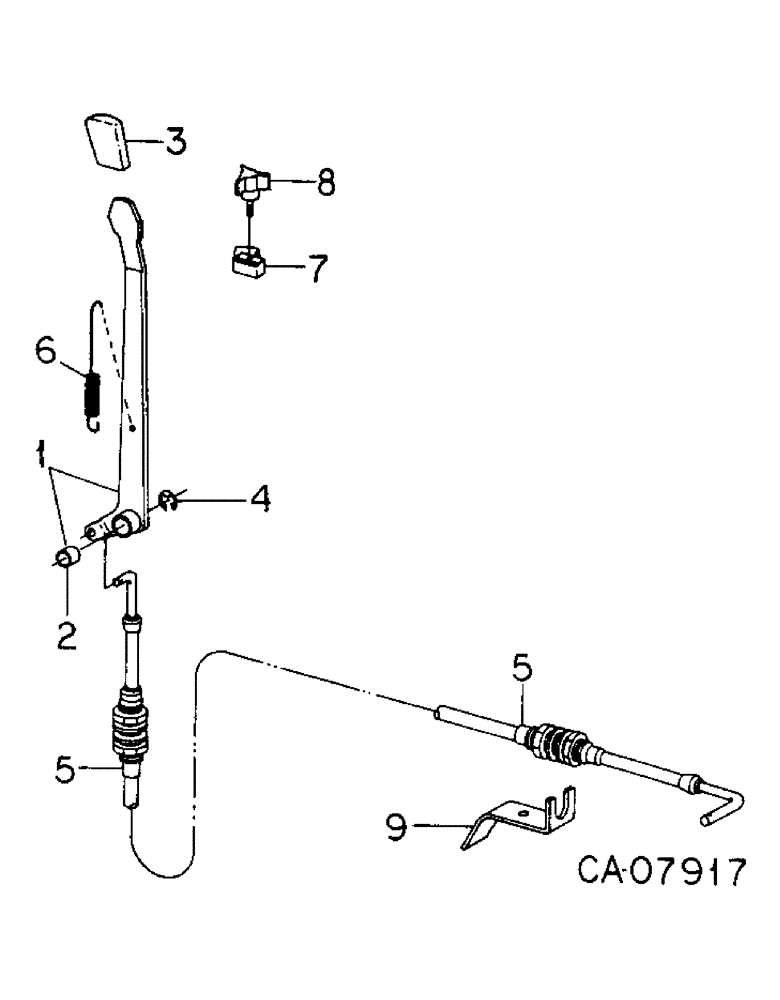

Схема запчастей Case IH 7488 - (07-47) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF CONTROLS (04) - Drive Train
3
6
5
9
4
7
2
5
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1267374C92

HANDLE

ASSY, IPTO control

1шт.

2

143960C1

BUSHING

IPTO handle

1шт.

3

1267353C1

KNOB

ASSY, IPTO handle

1шт.

4

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

5

143961C1

CABLE

ASSY, IPTO control

1шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

2шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 pln cot

2шт.

6

1259809C2

SPRING

IPTO handle return

1шт.

7

1252740C1

STOP

gov PTO overspeed

1шт.

8

399023R2

KNOB

fluted

1шт.

16559R1

WASHER,1/4"

.266 x .625 x .036

1шт.

9

1251904C3

SUPPORT

IPTO cable

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.
