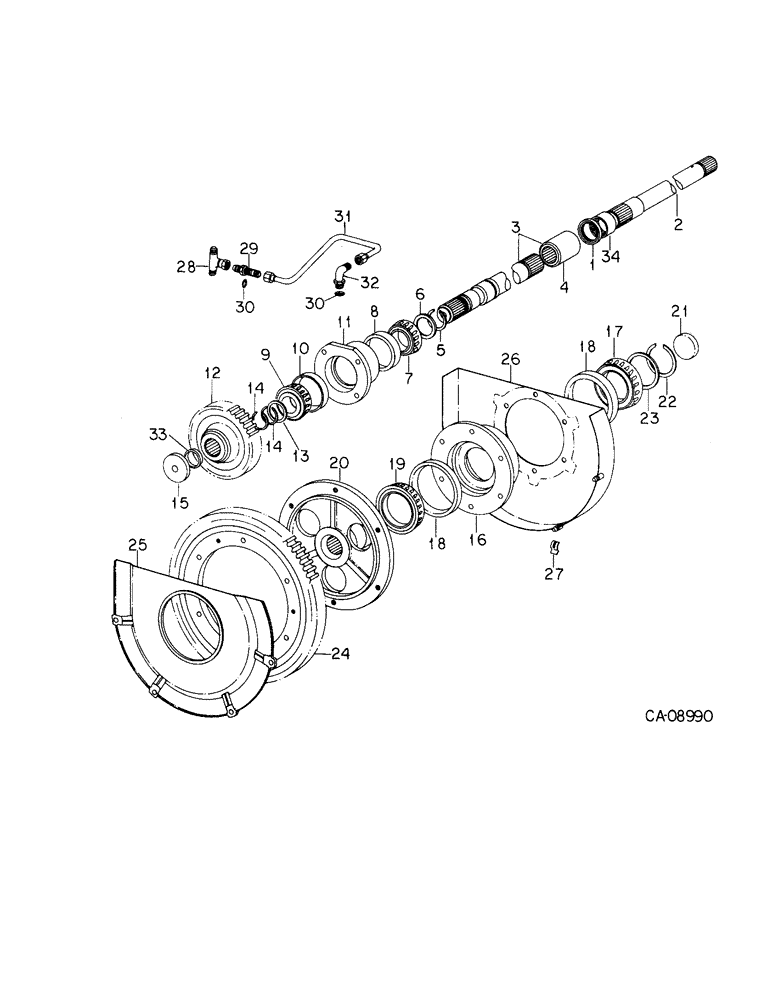

Запчасти Case IH 7488 (07-43) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF DRIVE (04) - Drive Train

1

1277193C1

SEAL

range counter & IPTO shaft oil

1шт.

2

1277192C1

SHAFT

intermediate drive

1шт.

3

1286280C91

SHAFT

ASSY, IPTO rear drive, Includes Ref: 4

1шт.

4

109651C

COUPLING, rear drive shaft

1шт.

5

139298C1

RING

external snap

1шт.

6

139299C1

RING

bearing cone backing

1шт.

7

139295C91

BEARING

ASSY, drive shaft front cone

1шт.

8

165964R1

BEARING CUP

BEARING, drive shaft front cup

1шт.

9

871244R91

ROLLER BEARING

BEARING ASSY, drive shaft rear cone

1шт.

10

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

BEARING, drive shaft rear cup

1шт.

11

139300C2

CAGE

drive shaft brg

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

12

1285866C1

GEAR

IPTO drive 54T

1шт.

13

1264753C91

PACKAGE

drive gear brg shim, Consists of

1шт.

SHIM, 3.814MM (NSS)

2шт.

SHIM, 3.89MM (NSS)

2шт.

SHIM, 3.974MM (NSS)

2шт.

SHIM, 4.054MM (NSS)

2шт.

SHIM, 4.134MM (NSS)

2шт.

SHIM, 4.214MM (NSS)

2шт.

SHIM, 4.294MM (NSS)

2шт.

SHIM, 4.374MM (NSS)

2шт.

14

1259828C1

RING

driven gear bearing

2шт.

15

139306C2

WASHER

driving gear ret

1шт.

931703R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

M12 x 30 pln class 8.8

1шт.

16

139307C2

CAGE

driven gear bearing

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

17

496535C91

BEARING ASSY,2.438" ID x 4.3317" OD x 0.8661"

ASSY, driven gear front cone

1шт.

18

29214H

BEARING CUP,110mm OD x 18.82mm W

BEARING, driven gear cup

2шт.

19

59718H

CONE

BEARING ASSY, driven gear rear cone

1шт.

20

1264951C91

HUB ASSY, IPTO driven gear, 7488 tractor

1шт.

20

148871C92

HUB

ASSY, IPTO driven gear, 7288 tractor, Includes Ref: 21

1шт.

21

70129R1

PLUG,Cup, 2"

2.0 cup, 7488 tractor

1шт.

21

30734R1

PLUG,M45, Tapered

45MM tapered cup, 7288 tractor

1шт.

22

1259698C1

CIRCLIP

RING, IPTO driven gear bearing snap

1шт.

23

1259699C1

WASHER

WASHER, bearing shim 3.482

1шт.

23

1259700C1

WASHER

WASHER, bearing shim 3.522

1шт.

23

1259701C1

WASHER

WASHER, bearing shim 3.562

1шт.

23

1259702C1

WASHER

WASHER, bearing shim 3.602

1шт.

23

1259703C1

WASHER

WASHER, bearing shim 3.642

1шт.

23

1259704C1

WASHER

WASHER, bearing shim 3.682

1шт.

23

1264638C1

WASHER

WASHER, bearing shim 3.442

1шт.

23

1264639C1

WASHER

WASHER, bearing shim 3.722

1шт.

24

139314C1

GEAR

IPTO driven 129T

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

6шт.

25

139335C3

COVER

IPTO oil shield

1шт.

26

139329C1

SHIELD

ASSY, IPTO driven gear oil

1шт.

27

139327C1

CLIP

cover retaining

4шт.

28

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

3/8 C-Z hyd fld tube swivel

1шт.

29

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube bulkhead

1шт.

30

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

31

139315C1

HYD TUBE,9.525 mm OD, 348.488 mm Length

TUBE ASSY, driving gear brg lube

1шт.

32

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90d

1шт.

33

395082R1

RING

IPTO drive gear wedge

1шт.

34

1277191C1

NEEDLE BEARING

ASSY, needle

1шт.
