(07-40) - DRIVE TRAIN, FRONT DRIVE AXLE, AXLE SHAFTS AND DRIVE

Запчасти Case IH 7488 (07-40) - DRIVE TRAIN, FRONT DRIVE AXLE, AXLE SHAFTS AND DRIVE (04) - Drive Train

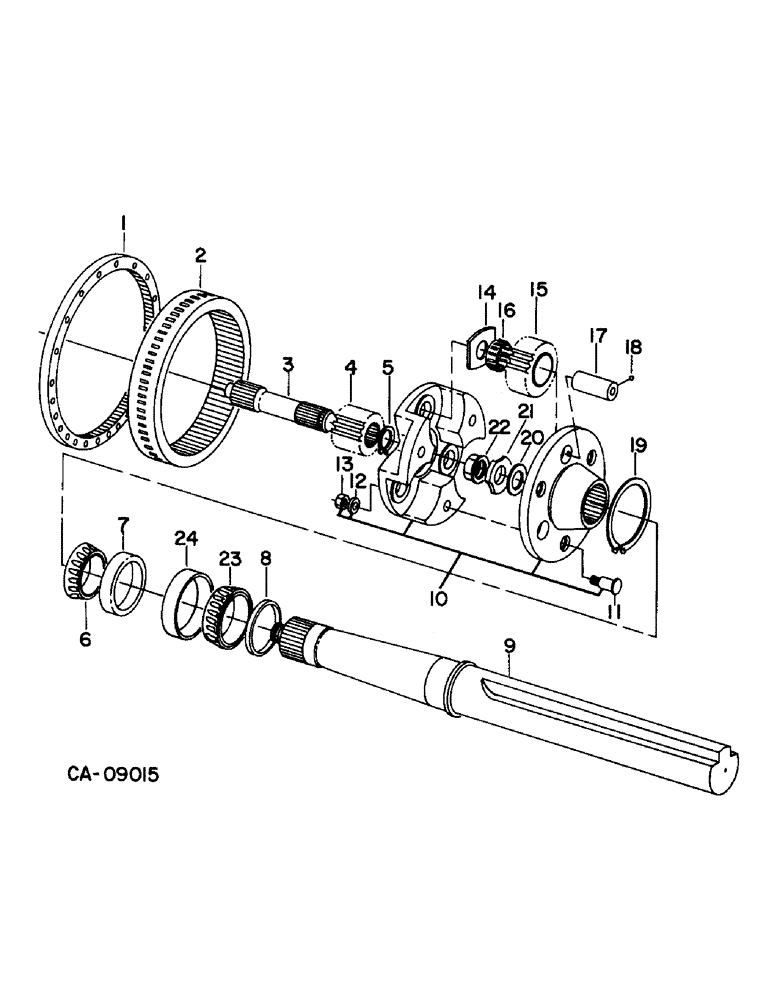

Схема запчастей Case IH 7488 - (07-40) - DRIVE TRAIN, FRONT DRIVE AXLE, AXLE SHAFTS AND DRIVE (04) - Drive Train
7
2
1
9
3
5
19
10
17
6
24
23
12
22
21
13
20
8
14
11
16
4
18
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84901C1

RING

planet ring gear mtg

2шт.

474517C2

GASKET

TUBE, gasket eliminator, loctite

1шт.

2

84902C1

GEAR, RING

2шт.

3

84883C1

SHAFT

sun

2шт.

4

84884C1

PLATE

GEAR, sun

2шт.

5

84885C1

RING

retaining

2шт.

6

84862C91

BEARING

ASSY, inner cone

2шт.

7

84859C1

BEARING

inner cup

2шт.

8

84888C1

SLEEVE

shaft

2шт.

9

84886C1

SHAFT

axle

1шт.

10

84889C91

CARRIER

planetary, Includes Ref: 11-13

2шт.

11

84892C1

BOLT

planetary

6шт.

12

84893C1

WASHER

planetary carrier

6шт.

13

84894C1

NUT

planetary carrier

6шт.

14

84898C1

WASHER

planet thrust

12шт.

15

84896C1

GEAR

planet

6шт.

16

84897C91

NEEDLE BEARING

ASSY, needle

12шт.

17

84899C1

SHAFT

planet

1шт.

18

30822R1

BALL,8mm Dia

no. 8 grade 28 metal

6шт.

19

84900C1

RING

planet shaft retainer

2шт.

20

84821C1

PACKAGE

axle bearing shim, Consists of

2шт.

SHIM, 1.0MM (NSS)

3шт.

SHIM, 0.5MM (NSS)

3шт.

SHIM, 0.3MM (NSS)

3шт.

SHIM, 0.25MM (NSS)

3шт.

SHIM, 0.2MM (NSS)

3шт.

21

84895C1

WASHER

axle shaft

2шт.

22

84887C1

NUT

flanged lock

2шт.

23

84857C91

BEARING

ASSY, outer cone

2шт.

24

84852C1

BEARING

ASSY, outer cup

2шт.
