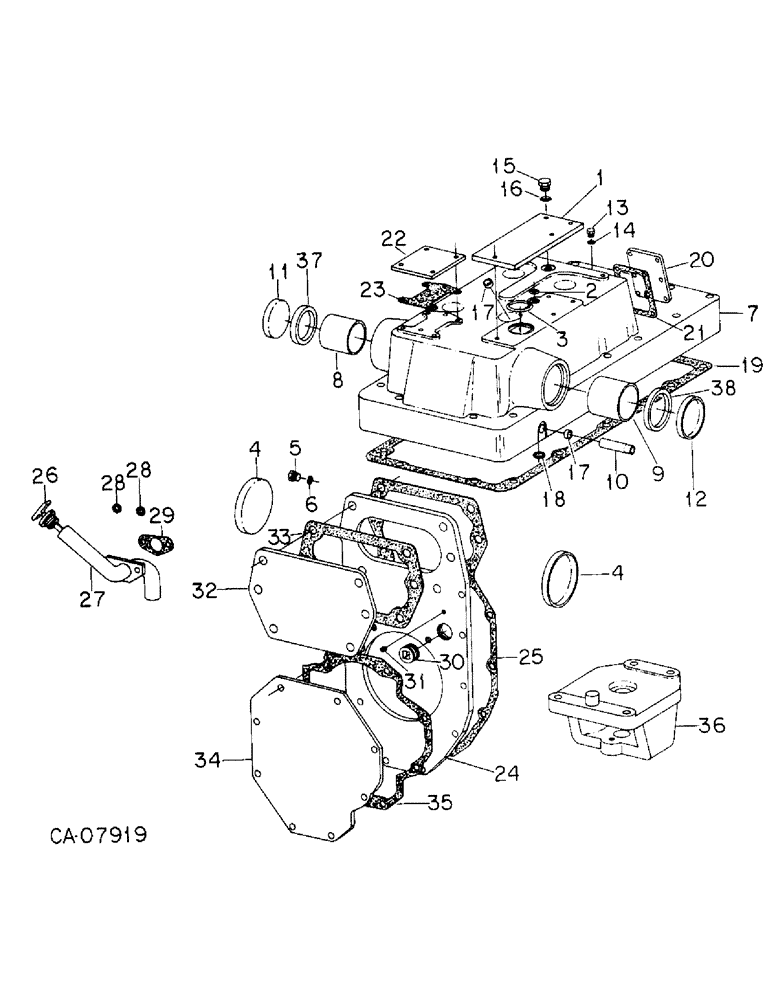

Запчасти Case IH 7488 (07-31) - DRIVE TRAIN, REAR AXLE HOUSING COVERS (04) - Drive Train

1

145460C1

BAR

DC supply port, cover

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

3шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2 x 3/4 type 5

1шт.

30351R1

DOWEL,M16 x 35

PIN, 16 x 35MM pln hdn dowel

1шт.

2

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

1шт.

3

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32

1шт.

4

383331R1

PLUG,Cup, 4.26"

4.260 OD cup

2шт.

5

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

7

142633C91

COVER

ASSY, rear frame

1шт.

931730R1

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

M16 x 100 pln class 8.8, Includes Ref: 8-18

16шт.

8

382774R2

BUSHING,70.78mm ID x 76.2mm OD x 80.26mm L

BEARING, rockshaft LH

1шт.

9

382775R2

BUSHING,76.85mm ID x 81.28mm OD x 80.26mm L

BEARING, rockshaft RH

1шт.

10

382798R1

BUSHING

eccentric shaft position control

1шт.

11

380174R1

PLUG,Cup, 3.510"

LH Cup, 3.510"

1шт.

12

380173R1

PLUG,Cup, 3.762"

RH Cup, 3.762"

1шт.

13

9410357

PLUG

5/16 C-Z str thd o-ring boss

1шт.

15

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

17

380263R1

PLUG

eccentric shaft & mtg bolt, opening cup

5шт.

18

387926R2

RING

draft control port cover seal

1шт.

19

380264R2

GASKET

rear frame cover

1шт.

20

382415R1

COVER

valve adj opening

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

5шт.

28253R1

BOLT

5/16 x 5/8 phc p/t type 5

1шт.

21

382416R1

GASKET

valve adj opening cover

1шт.

22

148842C1

BAR

IPTO valve opening, cover

1шт.

23

145287C1

GASKET

IPTO valve opening cover

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

24

139331C2

PLATE

IPTO adapter

1шт.

25

139332C1

GASKET

IPTO adapter plate

1шт.

931350R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

M12 x 35 pln class 8.8

2шт.

26

1268803C1

GAUGE

GUAGE ASSY, trans oil level

1шт.

27

139392C1

TUBE,92 mm Length

ASSY, dip stick guide

1шт.

930589R1

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

M12 x 45 pln class 8.8

1шт.

930052R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

M12 x 25 pln class 8.8

1шт.

28

108522C1

WASHER

flat copper sealing

3шт.

29

139395C1

GASKET,0.79mm Thk

dipstick guide tube

1шт.

30

20975R1

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG, 1-1/4 11-1/2 pln sq/skt auto pipe

1шт.

31

444689

PLUG,Hex Soc, 1/8"-27, Brass

1/8-27 pln hex/skt auto pipe cylinder pump

1шт.

32

139334C1

COVER

upper link bracket opening

1шт.

33

142630C1

GASKET

upper link bracket cover

1шт.

931605R1

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

M20 x 50 pln class 8.8

6шт.

34

139333C1

COVER

IPTO opening

1шт.

35

139286C1

GASKET

IPTO opening cover

1шт.

930052R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

M12 x 25 pln class 8.8

2шт.

930589R1

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

M12 x 45 pln class 8.8

6шт.

36

142619C1

SUPPORT

ASSY, drawbar pivot

1шт.

30368R1

DOWEL,M25 x 50

PIN, 25 x 50MM pln hdn dowel

1шт.

934738R1

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

30186R1

WASHER,M16 x 34.5 x 5, HT

17.3 x 34 x 5MM phc

4шт.

37

382776R91

OIL SEAL

rockshaft oil LH

1шт.

38

382778R91

OIL SEAL

rockshaft oil RH

1шт.

14

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

1шт.
