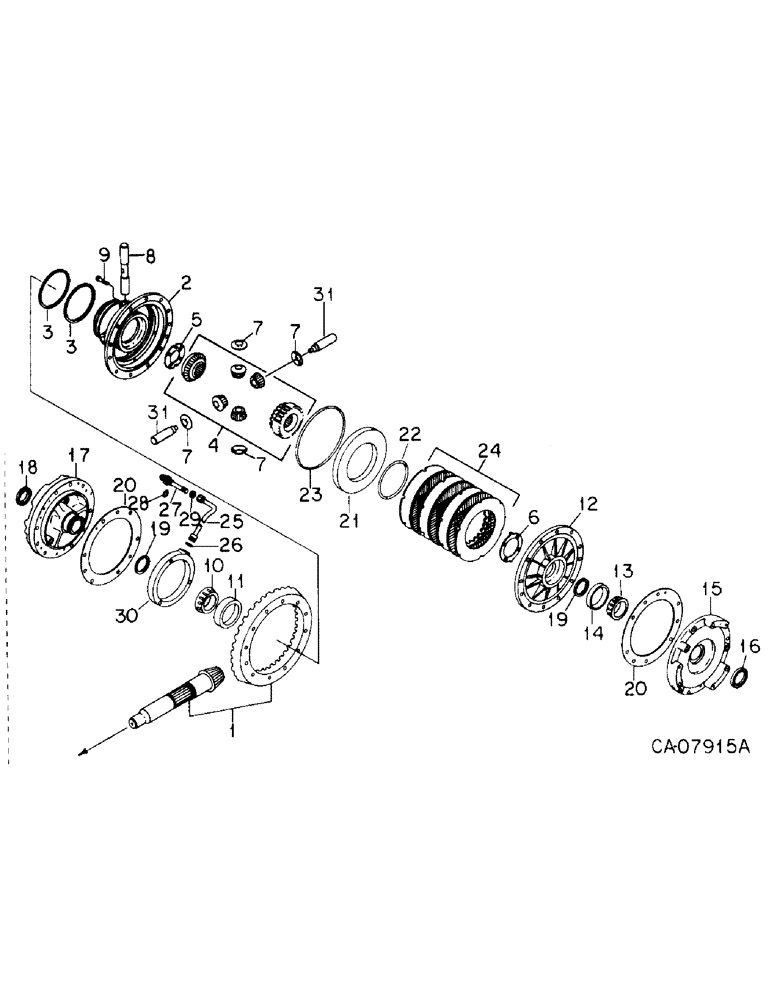

Запчасти Case IH 7488 (07-27) - DRIVE TRAIN, DIFFERENTIAL AND BEVEL GEARS, 7488 TRACTORS (04) - Drive Train

1

1270675C1

GEAR-SET

BEVEL GEARS, matched set

1шт.

2

120677C3

CASE

diff RH, Replaces 1264788C1

1шт.

30386R1

DOWEL,M10 x 55

PIN, 10HD x 55MM pln dowel

6шт.

3

148939C1

SEALING RING,OD 200.60 mm

RING, diff lock seal, or

2шт.

3

139068C1

RING

diff lock seal

2шт.

4

1259772C95

GEAR-SET

GEAR SET, differential, Consists of

1шт.

GEAR, diff. bevel, 20T (NSS)

1шт.

GEAR, diff pinion, 10T (NSS)

4шт.

GEAR, diff bevel, 20T diff lock (NSS)

1шт.

1259767C1

THRUST WASHER,38mm ID x 160mm OD x 1.6mm Thk

lock thrust

1шт.

1259766C1

THRUST WASHER

thrust

1шт.

1270574C1

THRUST WASHER,40mm ID x 70mm OD x 1.6mm Thk

pinion thrust, steel

4шт.

5

1259766C1

THRUST WASHER

differential thrust

1шт.

6

1259767C1

THRUST WASHER,38mm ID x 160mm OD x 1.6mm Thk

differential lock thrust

1шт.

7

1270574C1

THRUST WASHER,40mm ID x 70mm OD x 1.6mm Thk

pinion thrust

4шт.

8

1270641C1

SHAFT

diff pinion, long

1шт.

9

1285778C1

BOLT,Hex, M10 x 1.5 x 33mm, Cl 10.9

BOLT, diff pinion pin

2шт.

10

622336C91

ROLLER BEARING

cone RH

1шт.

11

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, diff cup RH

1шт.

12

120683C2

CASE

diff LH

1шт.

30329R1

WASHER,M17.5 x 30 x 4, HT

16MM hdn

12шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

13

67250C91

BEARING ASSY,3.5433" ID x 5.7087" OD x 1.378"

LH cone

1шт.

14

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

BEARING, LH cup

1шт.

15

120503C2

RETAINER

LH diff brg

1шт.

30350R1

DOWEL,M12 x 65

PIN, 12 x 65MM pln hdn dowel

5шт.

16

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

retainer diff lip LH

1шт.

17

139054C93

RETAINER

ASSY, RH diff

1шт.

30348R1

DOWEL,M10 x 60

PIN, 10 x 60MM pln hdn dowel

3шт.

30350R1

DOWEL,M12 x 65

PIN, 12 x 65MM pln hdn dowel

5шт.

18

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

retainer diff lip RH

1шт.

19

139060C1

SEALING RING

RING, diff retainer seal, or

2шт.

19

148941C1

RING

diff retainer seal

2шт.

934252R1

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

6шт.

20

1264586C91

PACKAGE

diff. retainer shim, Consists of

1шт.

SHIM, 0.178MM (NSS)

2шт.

SHIM, 0.305MM (NSS)

2шт.

SHIM, 0.737MM (NSS)

2шт.

SHIM, 0.102MM (NSS)

2шт.

SHIM, 0.089MM (NSS)

2шт.

21

120490C1

PISTON

diff lock

1шт.

22

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 class 5

1шт.

23

27929R1

O-RING,0.139" Thk x 11.984" ID, -278, Cl 5, 75 Duro

12 x 12-1/4 class 5

1шт.

24

1264587C91

PACKAGE

diff. lock friction plate, Consists of

1шт.

PLATE, diff lock friction (NSS)

3шт.

PLATE, diff lock separator (NSS)

4шт.

25

120653C2

TUBE,9.52 mm OD, 212, 64 mm Length

ASSY, diff lock

1шт.

26

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 class 5

1шт.

27

120674C1

UNION

diff lock

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

29

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock

1шт.

30

120675C1

RING

diff lock slip

1шт.

31

1285776C1

SHAFT

diff pinion, short

2шт.
