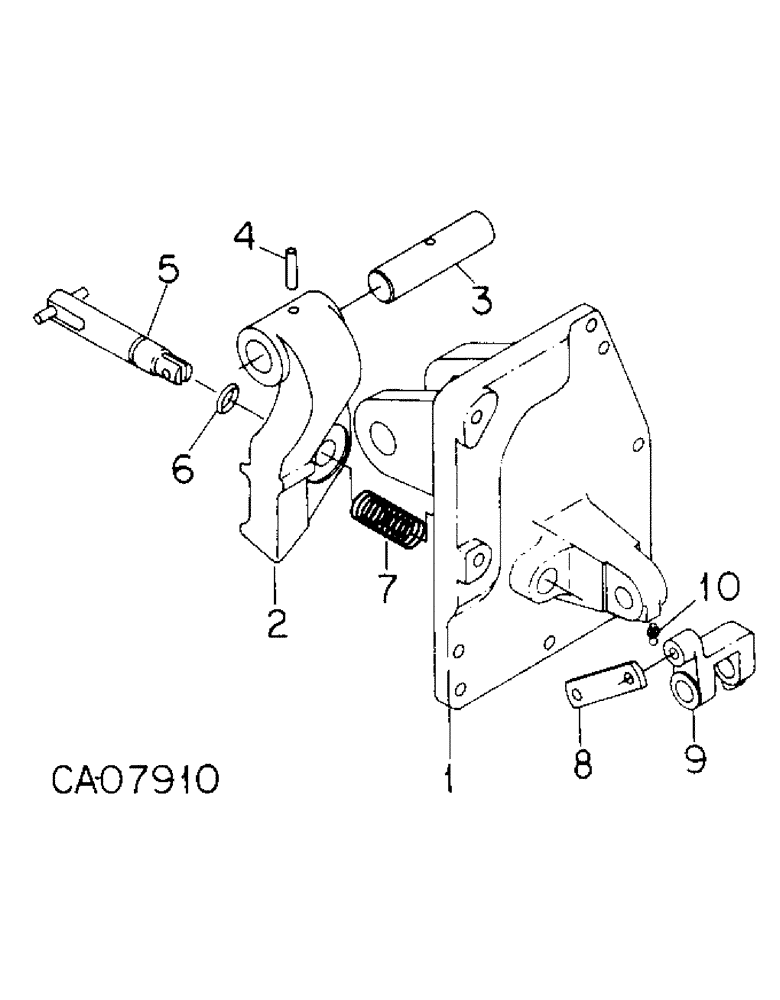

Запчасти Case IH 7488 (07-20) - DRIVE TRAIN, PARK LOCK, INTERNAL CONTROLS (04) - Drive Train

1

148737C2

COVER

ASSY, park lock

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

3шт.

930111R1

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

M10 x 45 pln class 8.8

2шт.

2

1270960C1

LEVER

park lock rack

1шт.

3

148740C1

SHAFT

PIN, park lock rack (Shaft)

1шт.

4

30681R1

PIN,M6 x 45, Coiled

6 x 45MM pln hvy coiled spring

1шт.

5

148770C94

ROD ASSY.

ROD ASSY, park lock lever pull

1шт.

30797R1

PIN,M6 x 36, Coiled

6 x 36MM pln cld spr

1шт.

6

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

0.549 x 0.755 x 0.103 class 5

1шт.

30741R1

WASHER,M20 x 37.5 x 4, HT

21.8 x 37 x 4MM pln

1шт.

7

148746C1

SPRING

park lock hold down rack

1шт.

30569R1

CLEVIS PIN,M8 x 25

PIN, 8 x 25MM phc clevis

1шт.

933347R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6MM pln

1шт.

934788R1

COTTER PIN,M2 x 16

PIN, 2 x 16MM pln cot.

1шт.

8

148743C1

BAR

park lock over-center (Link)

1шт.

9

148744C1

LEVER

park lock over-center (Bellcrank)

1шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

30739R1

CLEVIS PIN,M8 x 35

PIN, 8 x 35MM phc clevis

1шт.

933347R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6MM pln

1шт.

934788R1

COTTER PIN,M2 x 16

PIN, 2 x 16MM pln cot.

1шт.

30740R1

CLEVIS PIN,M16x 80

PIN, 16 x 80MM phc clevis

1шт.

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

17.3 x 30 x 3MM

1шт.

30243R1

COTTER PIN,M4 x 25

1шт.
