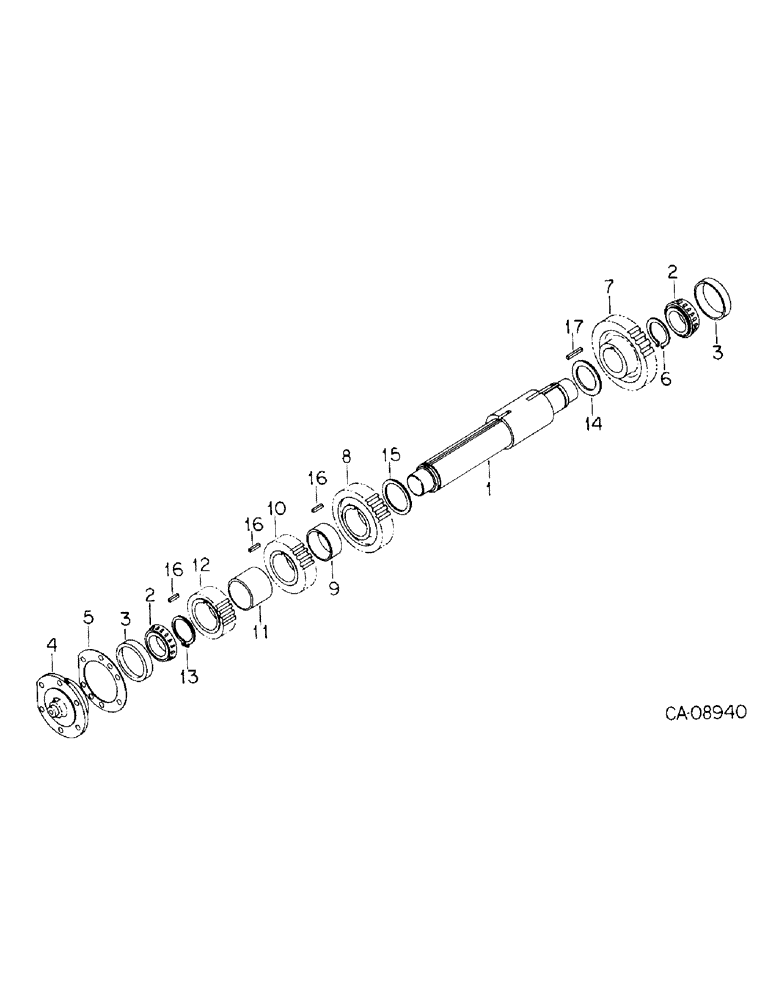

Запчасти Case IH 7488 (07-14) - DRIVE TRAIN, SPEED TRANS COUNTERSHAFT (04) - Drive Train

1

1277491C1

SHAFT

COUNTERSHAFT, speed

1шт.

2

PO12993

BEARING CONE

BEARING ASSY, cone

2шт.

3

22365V

BEARING CUP,3.6718" OD x 0.93"

BEARING, cup

2шт.

4

1286373C1

CAGE

speed ctr. shaft bearing

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

4шт.

5

1264551C92

STRIPPER PACKAGE

PACKAGE, ctr shaft brg cage shim, Consists of

1шт.

SHIM, .076MM (NSS)

2шт.

SHIM, .100MM (NSS)

2шт.

SHIM, .130MM (NSS)

2шт.

SHIM, .300MM (NSS)

2шт.

SHIM, .760MM (NSS)

2шт.

6

28629R1

SNAP RING,#243, Ext

Ring, Snap, , lo-driven gear #243, Ext

1шт.

7

1277492C1

GEAR

constant mesh lo-driven 45T

1шт.

8

1277493C1

GEAR

constant mesh hi-driven 43T

1шт.

9

1277494C1

SPACER

3rd & 4th drive gear

1шт.

10

1277495C1

GEAR

3rd & 4th drive gear, 36T

1шт.

11

1277496C1

SPACER

3rd & 4th drive gear

1шт.

12

1277497C1

GEAR

1st & 2nd drive, 31T

1шт.

13

233042R1

SNAP RING,#275, Ext

Ring, Snap, , hi-driven gear #275, Ext

1шт.

14

1286367C1

WASHER

countershaft gear, front

1шт.

15

1286368C1

WASHER

countershaft gear rear

1шт.

16

1286376C1

KEY

drive shaft, short

3шт.

17

1277498C1

KEY

drive shaft, long

1шт.
