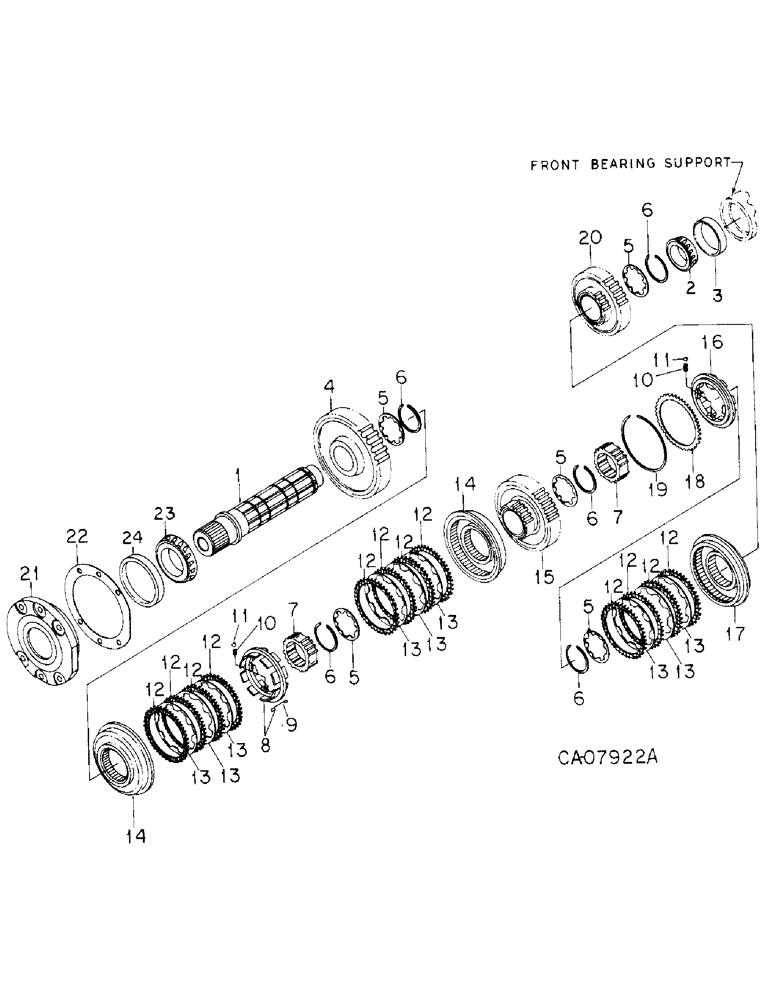

Запчасти Case IH 7488 (07-10) - DRIVE TRAIN, SPEED OUTPUT SHAFT (04) - Drive Train

1

1259864C92

SHAFT

ASSY, speed trans output

1шт.

120896C1

PLUG

36MM cup

1шт.

2

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

BEAR ASSY, cone

1шт.

3

376463C1

BEARING CUP

BEARING, cup

1шт.

4

1259831C1

GEAR

1st & 2nd speed driven, 58T

1шт.

5

110409C1

THRUST WASHER,57.4mm ID x 72mm OD x 2.5mm Thk

driven gear thrust

5шт.

6

139145C1

RING

driven gear retainer

5шт.

7

1259832C1

CARRIER

blocker ring

2шт.

8

1259866C92

RING

ASSY, synchronizer blocker

1шт.

9

1259834C2

RETAINER

synchronizer pack

2шт.

1270541C1

RIVET

synchronizer pack retainer

2шт.

10

144352C1

SPRING

blocker ring detent

8шт.

11

17005R1

BALL,5/32" Dia

5/32 grade 25 metal

8шт.

12

144333C1

DISC

ASSY, synchronizer friction

12шт.

13

144334C1

PLATE

separator

9шт.

14

1259835C1

DRUM

1-2, 3-4 synchronizer

2шт.

15

1259836C1

GEAR

3rd & 4th speed driven, 50T

1шт.

16

1259847C1

RING

5-6 blocker

1шт.

17

1259850C2

DRUM

5-6 synchronizer

1шт.

18

144355C2

THRUST WASHER

thrust

1шт.

19

1270622C1

RING

thrust washer retainer int

1шт.

20

1264897C1

GEAR

5th & 6th speed driven, 44T

1шт.

21

1259848C1

CAGE

output shaft bearing

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

6шт.

22

1264555C91

SHIM KIT

PACKAGE, output shaft brg cage shim, Consists of

1шт.

SHIM, .076MM (NSS)

2шт.

SHIM, .100MM (NSS)

2шт.

SHIM, .130MM (NSS)

2шт.

SHIM, .300MM (NSS)

2шт.

SHIM, .760MM (NSS)

2шт.

23

11991D

TAPERED BEARING

BEARING ASSY, cone

1шт.

24

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

1шт.
