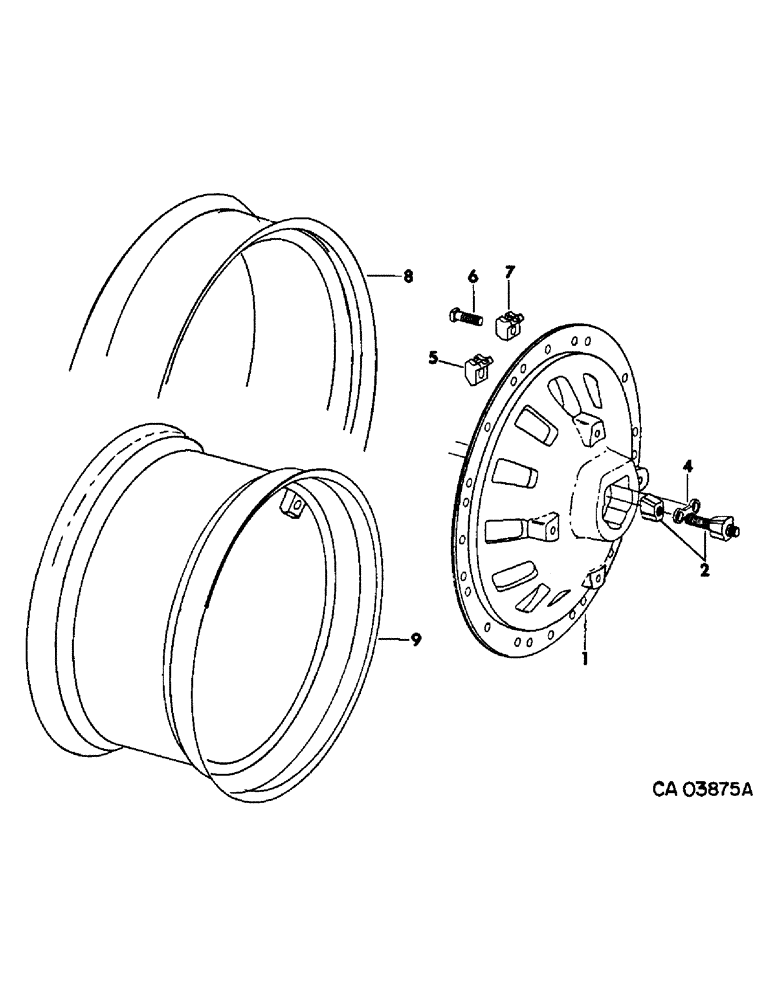

Запчасти Case IH 7488 (15-01) - WHEELS AND TRACTION, WHEELS Wheels & Traction

1

67338C1

WHEEL

38 in.

4шт.

1

67339C1

WHEEL

32 in.

4шт.

2

1287800C91

PACKAGE

wheel wedge, 2 per wheel

1шт.

3

NOT USED

1шт.

4

67478C1

LINK

wedge, 1 per wheel

1шт.

5

380870R1

CLAMP

wheel rim

1шт.

6

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

wheel rim, For use w/38 in. wheels, 48 required w/rim 392031R1, 64 required w/rim 529182R1 & 1270782C1

1шт.

6

380877R1

BOLT,3/4" - 16 x 4 3/4"

wheel rim, For use w/32 in. wheels, 10 required per rim

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 required per bolt

1шт.

352536R1

NUT

wheel rim clamp, 1 required per bolt

1шт.

7

397251R1

CLAMP

wheel rim, Use w/38 in. wheels, 2 required per wheel

1шт.

8

392031R1

RIM

W16L-38 wheel, For 18.4-38 tire

4шт.

8

529182R1

RIM

W18L-38 wheel, For 20.8-38 tire

4шт.

8

1270782C1

RIM

DM B16-42 wheel, For 18.4-42 tire

4шт.

9

392035R91

RIM

ASSY, DW21-32DC wheel w/clamps, For 24.5-32 tire

4шт.

9

67696C1

RIM

ASSY, DW27-32DC wheel w/clamps, For 30.5-32 tire

4шт.
