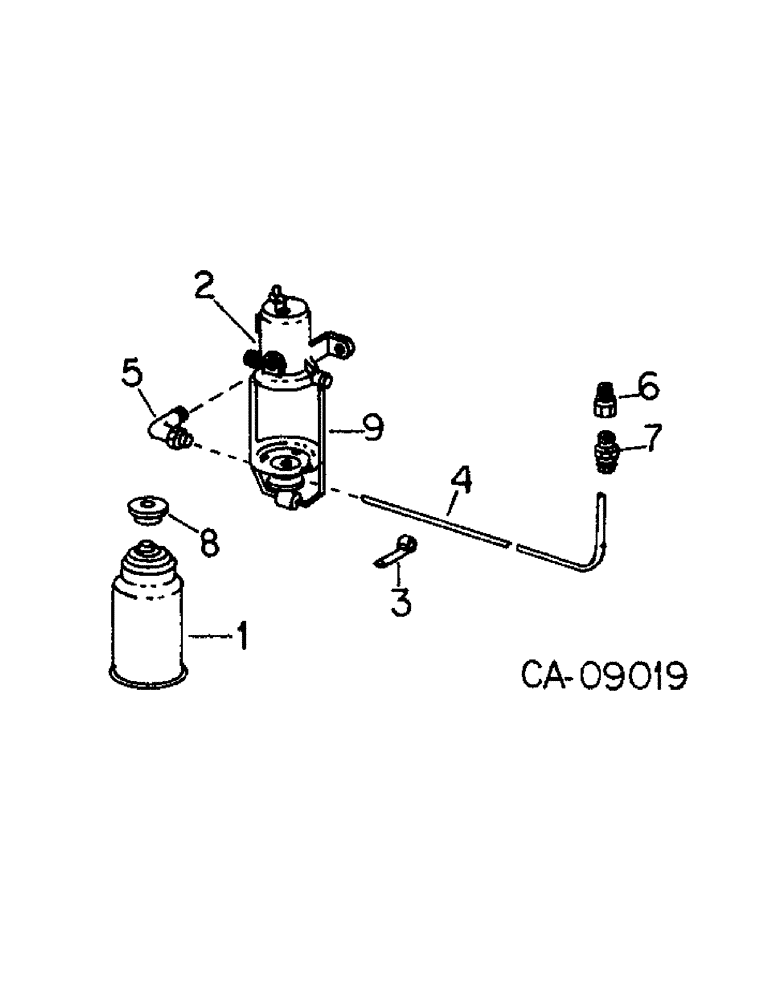

Запчасти Case IH 7488 (12-10) - POWER, ETHER STARTING Power

1

385064R91

FLUID

ether starting 12 oz. can

1шт.

2

121842C91

SOLENOID SWITCH

INJECTOR ASSY, ether starting

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

3

362667R1

CLIP

tube

1шт.

4

TUBE ASSY, ether solenoid to manifold, Use 50 in. of 1/8 OD tubing from 100 ft. roll marked 417195C1

1шт.

5

289970C91

FITTING

ELBOW, 1/8-27 90 deg ball sleeve tube

1шт.

6

269635R91

NOZZLE CAP

NOZZLE, starting fluid

1шт.

7

165206C1

CONNECTOR, ELEC

FITTING, 1/8 straight

1шт.

8

395686R1

GASKET

ether starting injector

1шт.

9

121851C1

RETAINER

ASSY, injector, bail

1шт.
