Запчасти Case IH 7488 (12-09) - POWER, GOVERNOR, CHOKE AND FUEL SHUT-OFF CONTROLS Power

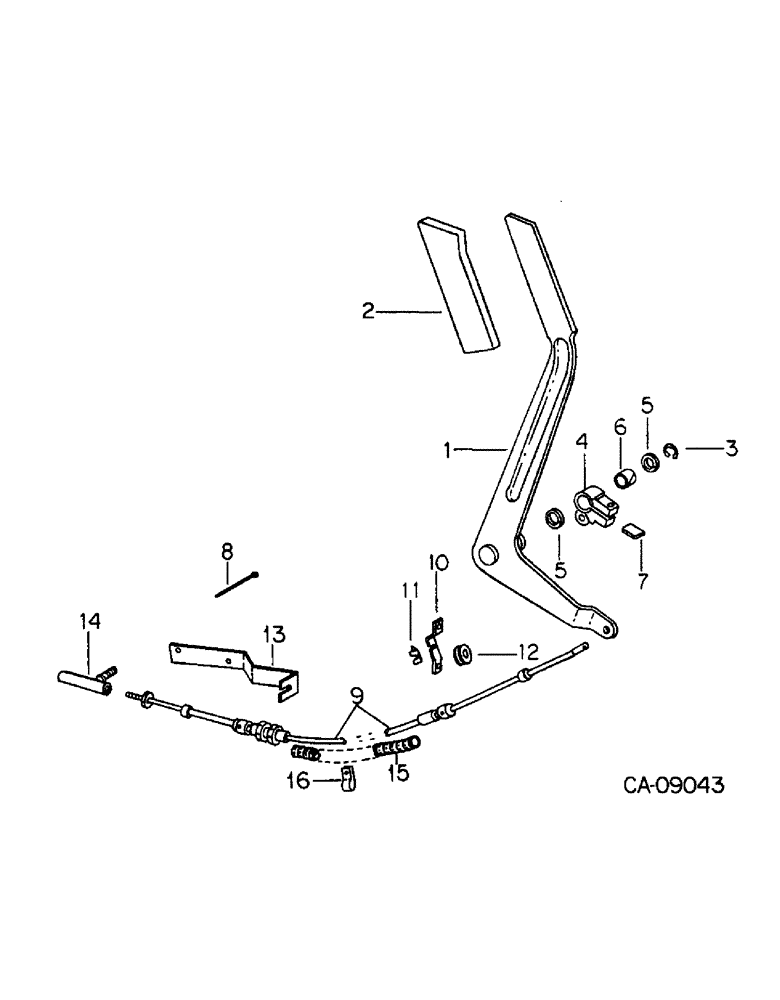

Схема запчастей Case IH 7488 - (12-09) - POWER, GOVERNOR, CHOKE AND FUEL SHUT-OFF CONTROLS Power
15
5
9
10
2
5
11
7
1
6
14
16
8
4
3
12
13

Артикул

Название

Примечание

Количество

1

104076C2

LEVER

ASSY, governor control

1шт.

2

1259765C1

GRIP

governor control lever

1шт.

3

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, , gov. control shaft #62, .480" Dia, E-Type

1шт.

4

104084C1

CLAMP

friction adjusting

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2 type 5

1шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

1шт.

137544C1

NUT

5/16-24 sq.

1шт.

532409R1

SPRING WASHER

.331 x .512 x .031 spring

1шт.

5

535684R1

WASHER

lever stop felt, split

2шт.

6

533210R1

BUSHING,19.07mm ID x 20.79mm OD x 17.02mm L

BEARING, friction

1шт.

7

535685R1

SPACER

felt

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP, tie wrap

1шт.

9

127338C2

CABLE

ASSY, governor control

1шт.

3479

WASHER,7/32" x 9/16" x .060"

.219 x .562 x .054 pln

2шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

1шт.

10

104080C1

SUPPORT

gov. cable, bracket

1шт.

931951R1

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

M6 x 16 pln class 8.8

2шт.

933825R1

LOCK WASHER,M6

WASHER, 6MM pln lock

2шт.

11

104081C1

CLIP

governor control

1шт.

12

52118D

GROMMET

control cable

1шт.

13

1270684C1

SUPPORT

gov. control cable

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2 type 5

2шт.

14

19725R1

BALL JOINT

JOINT, no. 10 C-Z type al ball

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

15

1280346C1

CONDUIT

CONVOLUTE

1шт.

16

892033C1

CLAMP

1.250 dia znp coated med clo

1шт.

30848R2

BOLT,Hvy Hex, M10 x 1.5 x 20mm, Cl 10.9

M10 x 20MM phc flg class 10.9

1шт.

Выбрано товаров: 28
