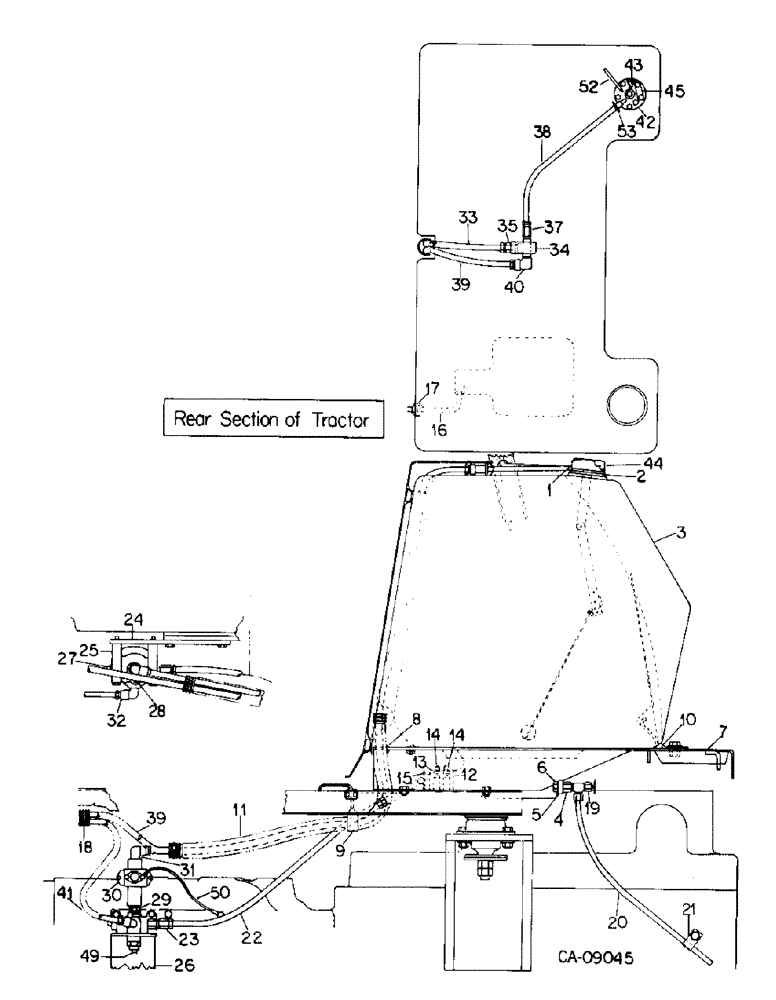

Запчасти Case IH 7488 (12-06) - POWER, AUXILIARY FUEL TANK ATTACHMENT Power

1

104781C1

CAP

fuel tank filler

1шт.

2

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

fuel tank filler cap

1шт.

3

137621C2

TANK

ASSY, auxiliary, 70 gal. fuel, Includes ref. no. 4, 5 & 6

1шт.

4

120156C1

NUT

fuel tank, well

1шт.

5

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

1шт.

6

120157C1

CONNECTOR, ELEC

CONNECTOR, fuel tank, stud

1шт.

7

144309C4

SUPPORT

ASSY, fuel tank

1шт.

30019R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

PHC Hex, M10 x 20, 10.9, Full Thd

4шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

4шт.

364289R1

CLIP, pin connector cable

1шт.

8

1250039C1

CLIP

aux fuel line

1шт.

598808R1

SCREW,Short NK, 3/8"-16 x 1/2", G5, Full Thd

BOLT, 3/8 x 1/2 crg type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

1250039C1

CLIP

aux fuel line

1шт.

30019R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

PHC Hex, M10 x 20, 10.9, Full Thd

1шт.

933965R1

LOCK WASHER,M10

1шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

1шт.

10

137630C2

BRACKET

fuel tank hold down

1шт.

1287737C1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, M10 x 25 polyseal

2шт.

1287738C1

SEALING WASHER

10.8 x 21 x 2.5MM polyseal

2шт.

11

1269374C1

CONDUIT

INSULATION, convolute conduit

1шт.

12

130345C1

FUEL HOSE

HOSE, fuel outlet

1шт.

13

130346C1

ADAPTER

fuel line

1шт.

14

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, fuel tank outlet hose

2шт.

15

161707C1

VALVE,5/8" - 18 x 1/4" NPTF

VALVE, shut-off

1шт.

16

120406C1

FUEL TUBE

TUBE ASSY, fuel line

1шт.

17

137597C1

ADAPTER,11/16" - 20

FUEL LINE

1шт.

18

1269256C1

CONDUIT

INSULATION, convolute conduit

1шт.

19

104465C1

DRAIN VALVE

VALVE, fuel tank drain

1шт.

20

TUBE, aux fuel drain line, Use 450MM (17.72 in.) of 3/8 OD nylon tube from a bulk roll marked 71814C1

1шт.

23

887714C91

CONNECTOR, ELEC

CONNECTOR, 1/2 tube x 3/8 npt

1шт.

24

1250037C1

SUPPORT

aux fuel filter

1шт.

930141R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

M10 x 35 pln class 8.8

2шт.

30476R1

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

M10 x 100 pln class 8.8

2шт.

25

1802072C1

HEAD (CYLINDER)

HEADER, fuel filter

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

3/8 x 3-3/4 pln type 5

2шт.

26

625625C1

FILTER, ELEMENT

ELEMENT, fuel filter

1шт.

27

444584

PLUG

3/8-18 auto sq-hd brass pipe

1шт.

28

444614

PLUG,Hex Hd, 1/8"-27, Brass

1/8-27 auto hex-hd brass pipe

1шт.

29

443980

NIPPLE, LUBE

NIPPLE, 3/8-18 stl pipe

1шт.

30

146397C1

PUMP

fuel electric

1шт.

31

127992H1

ELBOW

3/8 npt 1/2 OD tube

1шт.

32

175777H1

ELBOW

3/8 npt 3/8 OD tube

1шт.

33

TUBE, fuel pump to tee, Use 1550MM (61.02 in.) of 1/2 OD nylon tube from a bulk roll marked 74814C1

1шт.

34

444120

TEE,1/4"-18 NPTF Fem

1/4-18 auto pipe

1шт.

35

184820H1

CONNECTOR, ELEC

CONNECTOR, 1/2 tube 1/4 npt male

2шт.

36

TANK ASSY, fuel 89 gal, Refer to fuel tank, support & fuel lines in this group

1шт.

37

142241C1

VALVE

3/8 tube 1/4 npt ball check

1шт.

38

TUBE, fuel return, Use 380MM (14.96 in.) of 3/8 OD nylon tube from a bulk roll marked 74813C1

1шт.

39

TUBE, tee to main tank, Use 4260MM (167.71 in.) of 1/2 OD nylon tube from bulk roll marked 74814C1

1шт.

40

104469C1

ELBOW

1/4 npt x 1/2 OD tube male

2шт.

41

TUBE, fuel return, Use 3830MM (150.78 in.) of 3/8 OD nylon tube from a bulk roll marked 74813C1

1шт.

42

1250195C1

X

GAUGE, sending unit aux tank

1шт.

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP, fuel tank vent tube

1шт.

872436R1

HOSE CLAMP,#6, 3/8", Spring

CLAMP, fuel tank return

1шт.

423546

SCREW,Hex Hd, #10-24 x 3/4", w/LW

no. 10 x 3/4 znp h/hd l/w mach

5шт.

43

104812C1

GASKET

aux tank sending unit

1шт.

44

120194C1

CAP

fuel gauge sending unit

1шт.

45

120193C2

CLAMP

mounting bracket

1шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

no. 10 x 1/2 p/hdcr tap

1шт.

46

111619C1

STRAP

cable lock

2шт.

47

146398C2

FLOAT

sensor switch

1шт.

48

146399C1

TRANSMITTER

GAUGE, fuel tank sender main

1шт.

49

1250191C1

VALVE

1/2 tube x 3/8 npt ball check

1шт.

50

245629C1

CABLE

ASSY, fuel pump ground

1шт.

363660R1

CLIP

twisted

1шт.

51

1250508C1

CLAMP

CLIP, hose

1шт.

52

TUBE, fuel tank vent, Use 48 in. of 1/4 OD nylon tube from bulk roll marked 74812C1

1шт.

37903R1

CLIP, vent tube

1шт.

53

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP, no. 4 type E spring wire hose vent tube

1шт.

202013C2

TRAFFIC SIGN

PRODUCT GRAPHIC, SMV

1шт.

144261C2

FASTENER

SMV hold down

3шт.
