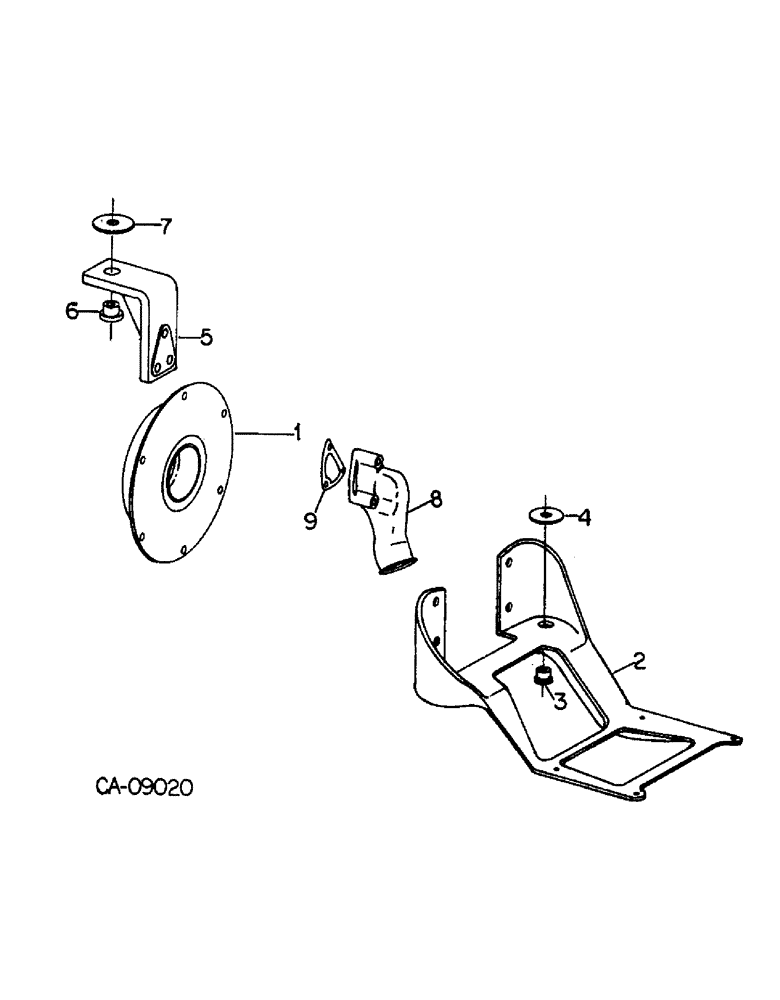

Запчасти Case IH 7488 (12-03) - POWER, ENGINE MOUNTING Power

1

138706C3

COUPLING

engine dampener

1шт.

930052R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

M12 x 25 pln class 8.8

6шт.

30177R1

WASHER,M12 x 24.5 x 3, HT

13.3 x 24 x 3MM phc

6шт.

2

147024C1

SUPPORT

engine front mount

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 type 5

4шт.

3

462300C2

SILENTBLOC

INSULATOR, front

2шт.

4

138869C1

WASHER

insulator

2шт.

24880R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

2шт.

25528R1

NUT,5/8"-11, G8

5/8 phc type 8

2шт.

5

146984C1

SUPPORT

MOUNT, engine rear

2шт.

931607R1

BOLT, M20 x 90 phc class 8.8

4шт.

30171R1

NUT,M20, Cl 10

M20 phc class 10

4шт.

6

462235C2

INSULATOR

rear

2шт.

7

484034R1

WASHER

insulator

2шт.

24893R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

2шт.

25529R1

NUT,3/4"-10, G8

3/4 phc type 8

2шт.

8

651055C2

ELBOW

water pump inlet

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

3шт.

9

673396C1

GASKET

1шт.
