Запчасти Case IH 7488 (12-01) - POWER, ASPIRATED AIR CLEANER AND EXHAUST Power

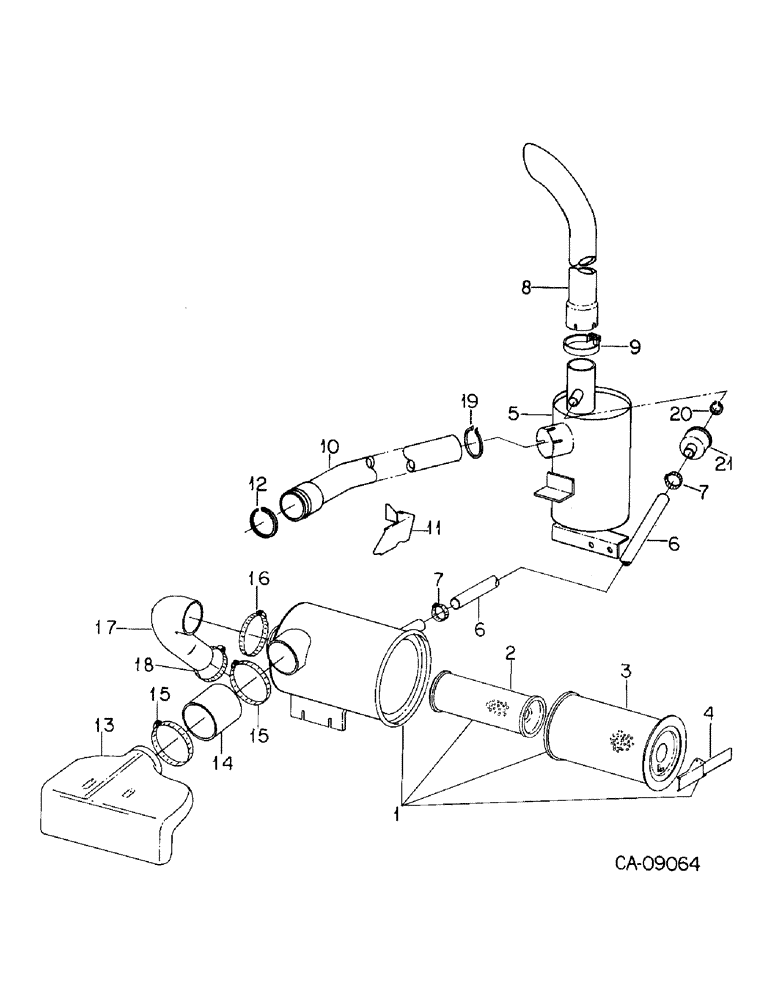

Схема запчастей Case IH 7488 - (12-01) - POWER, ASPIRATED AIR CLEANER AND EXHAUST Power
16
15
1
12
13
15
7
21
8
19
3
14
20
6
5
11
17
7
18
4
6
10
9
2

Артикул

Название

Примечание

Количество

1

146568C93

CLEANER

ASSY, air

1шт.

2

67975C1

AIR FILTER

ELEMENT, safety

1шт.

3

67974C4

AIR FILTER

ELEMENT, main filter

1шт.

4

67980C2

LATCH

ASSY

1шт.

5

1258467C2

MUFFLER

exhaust

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

2шт.

180199

SCREW,Hex, 9/16" - 12 x 1", Gr 5

BOLT, 9/16 x 1 type 5

1шт.

116122

WASHER

9/16 phc lock

1шт.

6

407003R1

HOSE

aspirator

1шт.

7

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, aspirator hose

2шт.

8

1289031C1

PIPE

exhaust

1шт.

9

530925R1

CLAMP,88.9mm - 92.71mm

exhaust pipe

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 phc hdn

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

1268677C1

TUBE ASSY.,225 mm Length

TUBE ASSY, turbo/muffler, pipe

1шт.

11

146458C2

SHIELD

heat & pipe support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

12

702299C1

ASSEMBLY

RING, turbo seal

1шт.

13

127340C2

DUCT

air inlet

1шт.

13

SEALER, duct, Use 45.3, 1150.0MM in. from bulk carton marked 146793C1

1шт.

14

127328C1

HOSE,127.00 mm ID x 105.00 mm

- Duct connector 127.00 mm ID x 105.00 mm

1шт.

15

327094R91

HOSE CLAMP,#84, 4.88/5.75 Type F Worm, W/liner

CLAMP, hose #84

2шт.

16

146570C1

CLAMP

hose #72

1шт.

17

132632C2

INTAKE AIR HOSE,75.18 mm ID, 100.58 mm ID

Turbo Inlet 75.18 mm ID, 100.58 mm ID

1шт.

18

146569C1

CLAMP

hose #56

1шт.

19

663432C1

CLAMP,69.85mm - 82.65mm

EXHAUST

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

1275854C1

CLAMP

check valve

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

21

1275839C1

VALVE

check

1шт.

Выбрано товаров: 38
