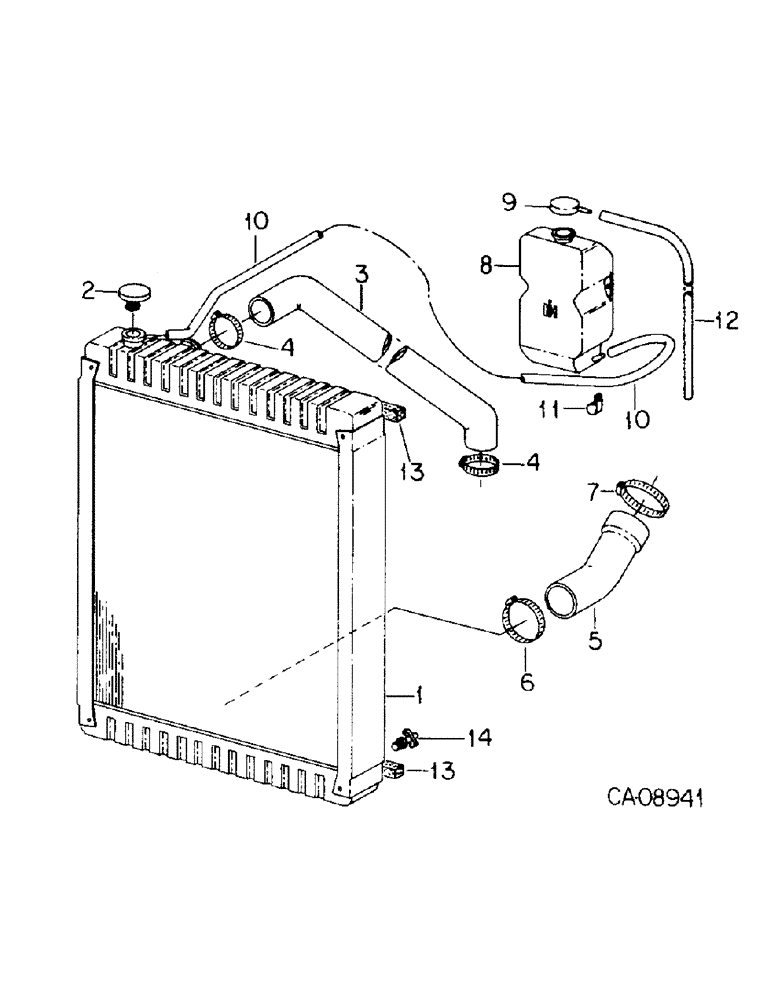

Запчасти Case IH 7488 (06-04) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

1265610C1

RADIATOR

ASSY, less cap

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

30326R1

WASHER,M8 x 17.5 x 2, HT

8.8 x 17 x 2MM

8шт.

2

130704C1

CAP

ASSY, radiator

1шт.

3

548216R1

RADIATOR HOSE,50.80 mm ID, 57.15 mm ID x 371.60 mm, SAE 20R4, GRADE 1A

Inlet 50.80 mm ID, 57.15 mm ID x 371.60 mm, SAE 20R4, GRADE 1A

1шт.

4

401345R1

HOSE CLAMP,#40, 2.06/3.00 Type F Worm, W/liner

CLAMP, hose

2шт.

5

147092C1

RADIATOR HOSE

Lower

1шт.

6

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

CLAMP, no. 44 type F hose

1шт.

7

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, no. 48 type F hose

1шт.

8

437703C1

TANK

RESERVOIR, radiator

1шт.

931416R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

M6 x 20 phc class 8.8

3шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

3шт.

9

437702C1

CAP

reservoir

1шт.

10

132882C3

RADIATOR HOSE,7.87 mm ID x 2006.00 mm

Radiator to Reservoir 7.87 mm ID x 2006.00 mm

1шт.

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, hose

2шт.

11

299413C1

CLAMP

.812 dia phc coated med clo

3шт.

31055R1

BOLT, M8 x 25 phc cl 8.8 flg/hd

2шт.

12

68694C3

RADIATOR HOSE,0.31" ID x 34.00"

Radiator to Reservoir 0.31" ID x 34.00"

1шт.

13

SEALER, radiator, Use 670.0MM - 26.4 in., from bulk carton marked 146793C1

4шт.

14

614201R1

VALVE

radiator drain

1шт.
