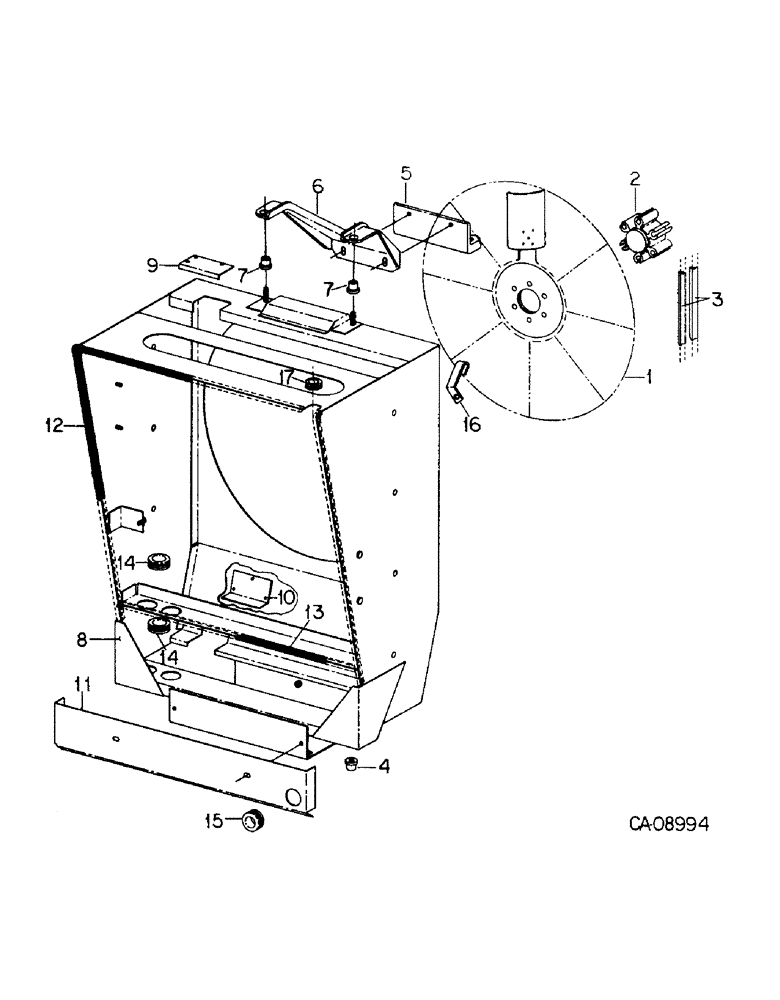

Запчасти Case IH 7488 (06-02) - COOLING, FAN, SHROUD AND BELTS Cooling

1

1265545C2

BLADE

ASSY, fan 24.0 dia

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

2

1258001C1

SPACER

fan

1шт.

3

131201C91

BELT

water pump & alternator, matched dual set, 7488 tractor

1шт.

3

537072R91

SET OF BELTS

Matched dual, Water pump & alternator, 7288 tractor

1шт.

4

536647R1

INSULATOR

lower

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

25724R1

WASHER

.406 x 1.125 x .134 hdn

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

5

1268557C1

BRACKET

shroud & air cleaner

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

180212

BOLT, 9/16 x 1-3/4 type 5 Hex, 9/16"-12 x 1 3/4", G5

1шт.

103344

.594 x 1.156 x .074 pln

1шт.

6

1250025C1

SUPPORT

shroud upper

1шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

M10 x 35 class 8.8

2шт.

933965R1

LOCK WASHER,M10

2шт.

30327R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5MM

2шт.

7

536647R1

INSULATOR

upper

2шт.

25724R1

WASHER

.406 x 1.125 x .134 hdn

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

8

1268744C2

SHROUD

ASSY, radiator

1шт.

9

1250213C1

COVER

upper

1шт.

70700C1

SCREW

1/4-14 x 5/8 cad c/r s/d tap

3шт.

10

1268737C1

COVER

lower

1шт.

70700C1

SCREW

1/4-14 x 5/8 cad c/r s/d tap

3шт.

11

1250210C1

BAFFLE

shroud

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

2шт.

12

1258303C1

SEAL

frt hood side & top

1шт.

13

1258302C1

SEAL

frt hood bottom

1шт.

14

587215R1

GROMMET,1 1/2" ID x 2 1/8" x .062"

1-1/2 x 1-1/8 x 7/16 N/C rub, oil cooler hoses

4шт.

15

587215R1

GROMMET,1 1/2" ID x 2 1/8" x .062"

1-1/2 x 1-1/8 x 7/16 N/C rub, front harness thru baffle

1шт.

16

1250570C2

CLAMP

CLIP, air conditioner hoses

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

17

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

1-1/8 x 1-3/4 x 7/16 D/C rub, air conditioner hoses

1шт.
