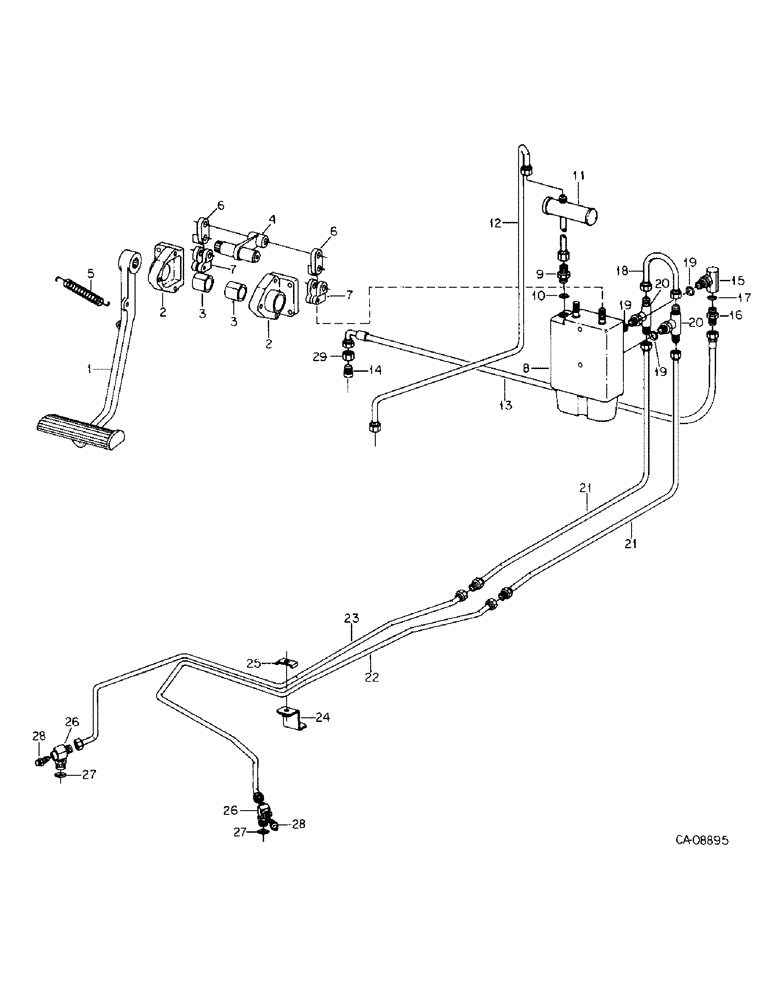

Запчасти Case IH 7488 (04-02) - BRAKES, MASTER BRAKE CONTROLS (5.1) - BRAKES

1

127257C1

PEDAL

brake

1шт.

2

120175C91

HOUSING

ASSY, brake pedal, Includes ref. 3

2шт.

3

120171C1

BUSHING

brake pedal pivot, bearing

2шт.

16073R1

BOLT, 5/16 x 2-3/8 pln type 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

181106

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 phc type 5

4шт.

4

127258C1

LEVER

ASSY, brake

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

23364R1

WASHER

.344 x 1.750 x .164

1шт.

5

104783C1

SPRING

brake pedal return

1шт.

6

384082R1

LINK

brake operating

2шт.

21263R1

CLEVIS PIN,1/2" x 1 11/16'"

PIN, 1/2 x 1.688 clevis

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

21994

PIN, 1/2 x 3.250 hd type 1

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

7

384083R2

YOKE

YOKE, brake operating

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

1272218C91

VALVE

PACKAGE, hyd brake valve, For list of serviceable parts see power brake valve this group

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 pln type 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20285H

WASHER

.406 x .750 x .105 pln

2шт.

102635

NUT,3/8"-16, G5

2шт.

9

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

11

1259635C2

TANK

ASSY, brake reservoir

1шт.

12

149081C3

HYD TUBE,0.375" OD, 735.25, 364 mm Length

TUBE ASSY, brake dump

1шт.

13

1269157C1

HOSE

brake supply

1шт.

14

9403402

REDUCER,37 Degree, 5/8" x 1/4" Tube

FITTING, 5/8 x 3/8 C-Z hyd fld tube redr

1шт.

15

1272021C1

ELBOW

1шт.

16

1272563C1

VALVE

check

1шт.

17

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

18

134575C1

TUBE ASSY.,0.375" OD

TUBE ASSY, brake valve junction

1шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

20

9411117

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Br

3/8 C-Z hyd fld tube adj

2шт.

21

1264710C2

HYD TUBE,0.375" OD, 620.5, 352 mm Length

TUBE ASSY, front brake

2шт.

22

1280691C1

HYD TUBE

TUBE ASSY, rear brake RH

1шт.

23

1280690C1

HYD TUBE

TUBE ASSY, rear brake LH

1шт.

24

1280694C1

SUPPORT

ASSY, brake tubes

1шт.

25

535307R1

CLAMP

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

26

1264836C1

VALVE

ASSY, brake bleeder

2шт.

27

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

28

82301R1

BLEEDER,3/8" - 24 x 117mm

brake bleeder, or

2шт.

28

3068777R1

SCREW

brake bleeder

2шт.

29

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT, 5/8 C-Z hyd fld tube style B

1шт.
