Запчасти Case IH 7488 (09-09) - FRAME, SWINGING DRAWBAR, PART OF THREE POINT HITCH (12) - FRAME

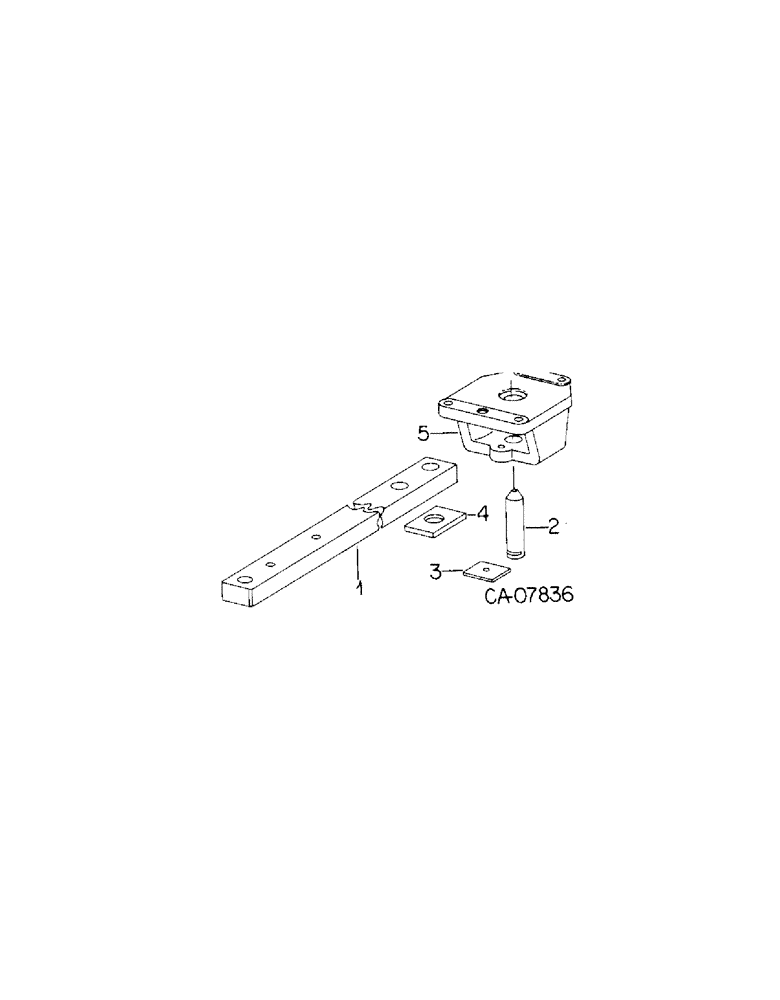

Схема запчастей Case IH 7488 - (09-09) - FRAME, SWINGING DRAWBAR, PART OF THREE POINT HITCH (12) - FRAME
5
3
1
2
4

Артикул

Название

Примечание

Количество

1

142616C2

BAR

DRAWBAR, swinging, 1535MM

1шт.

30077R1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

M16 x 120 phc class 10.9

2шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

2шт.

2

224618C1

PIN,34.87mm OD x 150mm L

drawbar pivot

1шт.

3

67828C1

RETAINER

drawbar pivot pin

1шт.

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

M12 x 30 phc class 10.9

1шт.

933834R1

LOCK WASHER,M12

WASHER, 12MM pln lock

1шт.

4

224619C2

SPACER

drawbar pivot

1шт.

5

SUPPORT ASSY, swinging drawbar pivot, Refer to rear axle housing covers in group 7

1шт.

149841C93

TRAILER HITCH

PARTS ACCESSORY, hammer strap

1шт.

Выбрано товаров: 10
