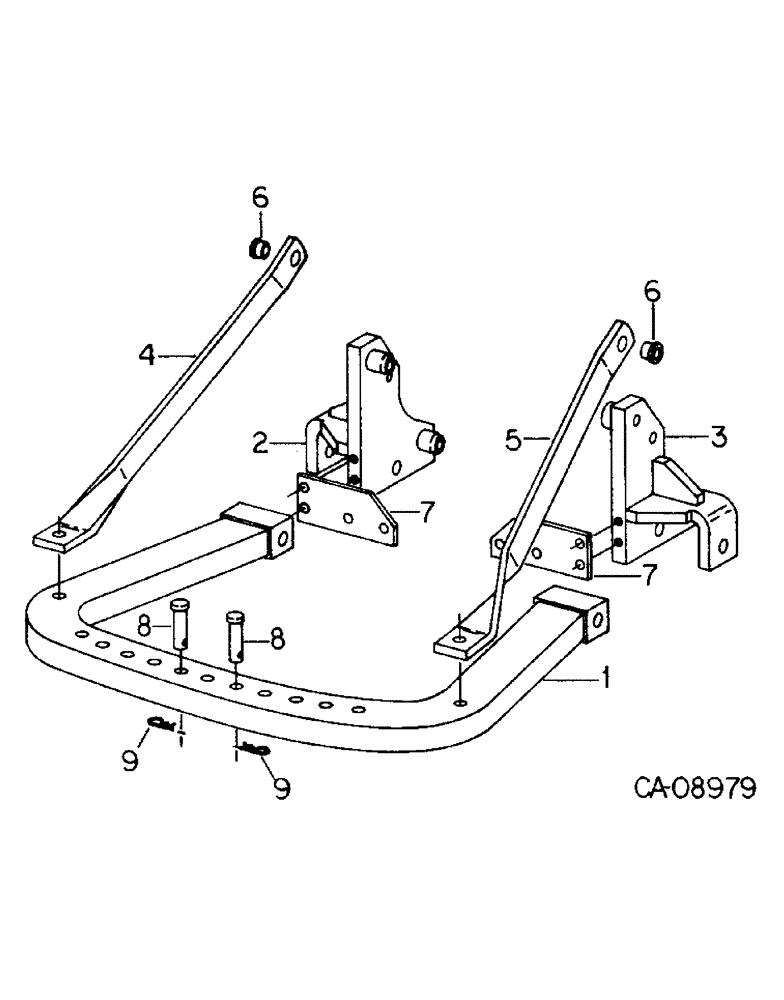

Запчасти Case IH 7488 (09-07) - FRAME, HEAVY DUTY SWINGING DRAWBAR SUPPORT, FOR TRACTORS WITHOUT DRAFT CONTROL AND THREE POINT HITCH (12) - FRAME

1

145265C2

SUPPORT

ASSY, hv duty swinging drawbar

1шт.

30125R1

BOLT,Hex, M24 x 3 x 170mm, Cl 10.9

M24 x 170 phc class 10.9

2шт.

30511R1

LOCK WASHER,M24

WASHER, 24MM lock

2шт.

30172R1

NUT

M24 phc class 10

2шт.

2

145197C2

BRACKET

& BUSHING, drawbar LH

1шт.

30319R1

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

Hex, M16 x 55, 8.8

1шт.

931730R1

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

M16 x 100 pln class 8.8

2шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 phc hdn

3шт.

3

145200C2

BRACKET

& BUSHING, drawbar RH

1шт.

930540R1

BOLT,Hex, M16 x 2 x 75mm, Cl 8.8

1шт.

931731R1

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

M16 x 120 pln class 8.8

2шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 phc hdn

3шт.

4

145205C1

SUPPORT ASSY.

SUPPORT, drawbar LH, brace

1шт.

931729R1

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

1шт.

30096R1

BOLT,Hex, M20 x 2.5 x 85mm, Cl 10.9

M20 x 85 phc class 10.9

1шт.

30171R1

NUT,M20, Cl 10

M20 phc class 10

1шт.

933815R1

LOCK WASHER,M20

WASHER, 20MM lock

1шт.

5

145207R1

SUPPORT

drawbar RH, brace

1шт.

931729R1

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

1шт.

30096R1

BOLT,Hex, M20 x 2.5 x 85mm, Cl 10.9

M20 x 85 phc class 10.9

1шт.

30171R1

NUT,M20, Cl 10

M20 phc class 10

1шт.

933815R1

LOCK WASHER,M20

WASHER, 20MM lock

1шт.

6

145204C1

BUSHING

drawbar support brace

2шт.

7

1286756C1

PLATE ASSY.

PLATE, drawbar bracket support

2шт.

30066R1

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

30064R1

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

30178R1

WASHER,M17.5 x 30 x 4, HT

17.3 x 30 x 4MM phc

8шт.

30269R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9

M16 x 35 phc p/t class 10.9

2шт.

8

P14608

AXLE PIN

PIN, 3/4 x 2.750 pln hd roller stop

2шт.

9

520175R1

CLIP

PIN, quick attachable cotter

2шт.
