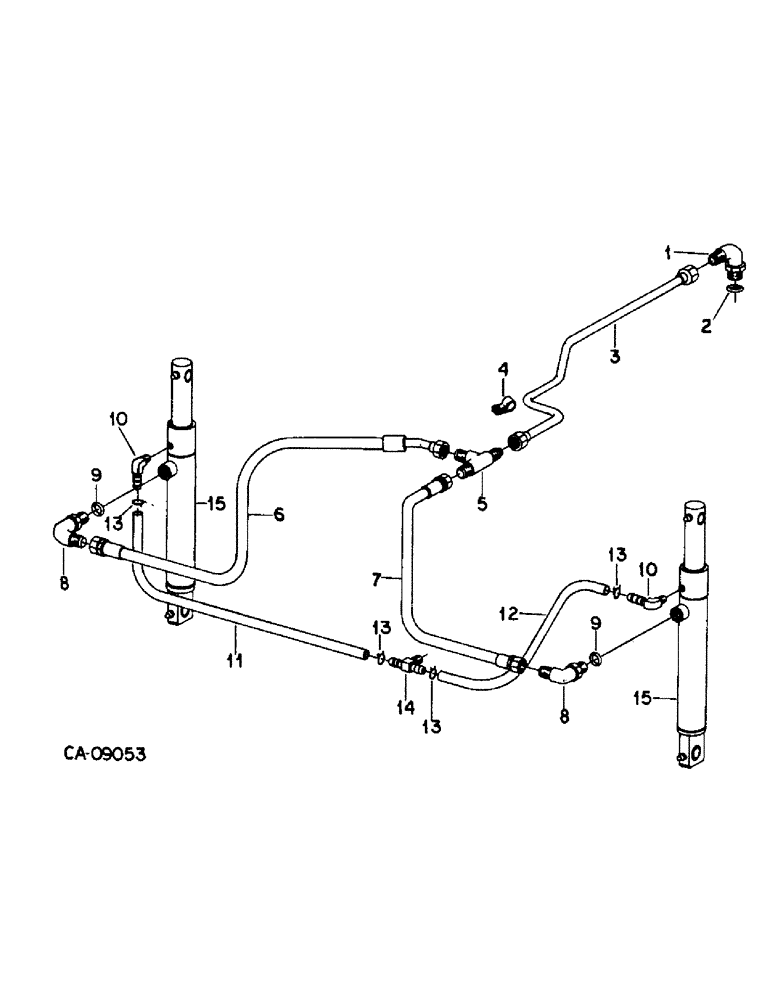

Запчасти Case IH 7488 (10-49) - HYDRAULICS, HITCH LIFT DOUBLE ASSIST CYLINDERS (07) - HYDRAULICS

1

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

3

145517C5

HYD TUBE,0.375" OD, 532.422 mm Length

TUBE ASSY, supply

1шт.

4

299615C1

CLAMP

.625 dia znp coated med clo

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

20285H

WASHER

.406 x .750 x .105 pln

1шт.

5

9402981

SHAFT

3/8 C-Z hyd flared three way

1шт.

6

1289010C1

HOSE

ASSY, LH booster cylinder

1шт.

7

1269383C1

HOSE

ASSY, RH booster cylinder

1шт.

8

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

2шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

10

401967R1

ELBOW

90 deg barb

2шт.

11

HOSE, Furnish 500MM from bulk roll marked 427683C1

1шт.

12

HOSE, Furnish 310MM from bulk roll marked 427683C1

1шт.

13

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, #5 worm hose

4шт.

14

1269180C1

FITTING

TEE ASSY

1шт.

15

1266760C91

CYLINDER BLOCK

CYLINDER ASSY, booster, 1.75 RAM, 7488 tractor, See parts catalog cyl-1 for service parts

2шт.

15

149699C94

CYLINDER

ASSY, booster, 1.50 RAM, 7288 tractor, See parts catalog cyl-1 for service parts

2шт.
