Запчасти Case IH 7488 (10-03) - HYDRAULICS, HYDRAULIC OIL SUCTION FILTERS, FOR PPH PUMP AND DUAL GEAR PUMP (07) - HYDRAULICS

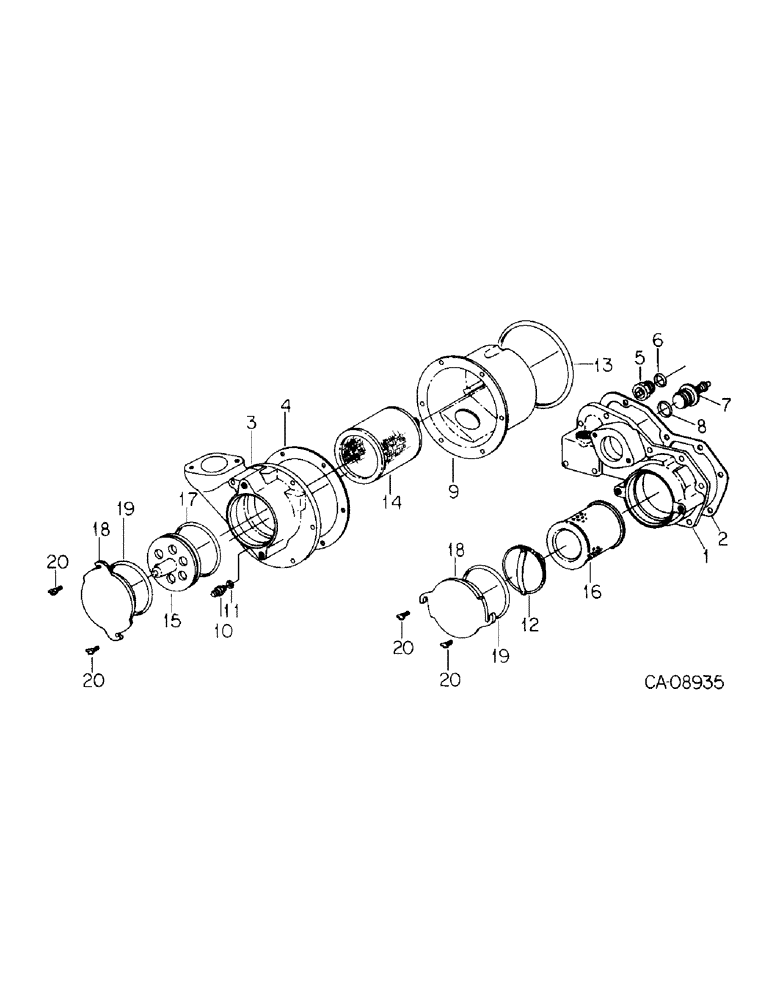

Схема запчастей Case IH 7488 - (10-03) - HYDRAULICS, HYDRAULIC OIL SUCTION FILTERS, FOR PPH PUMP AND DUAL GEAR PUMP (07) - HYDRAULICS
20
7
13
15
20
10
3
19
17
12
9
4
6
11
1
19
8
14
5
18
18
20
2
16
20

Артикул

Название

Примечание

Количество

1

139227C3

BASE

PPH suction

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

5шт.

930141R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

M10 x 35 pln class 8.8

2шт.

931714R1

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

M10 x 80 pln clas 8.8

2шт.

2

139228C1

GASKET

PPH suction filter base

1шт.

3

139239C4

BASE

dual pump filter suction

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

5шт.

931716R1

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

M10 x 110 pln class 8.8

1шт.

4

139241C2

GASKET

dual pump filter base

1шт.

5

224397C1

VALVE

ASSY, reservoir relief

1шт.

6

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

1шт.

7

224387C1

VALVE

ASSY, reservoir make-up

1шт.

8

343907R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro

1-3/8 x 1-5/8 class 6

1шт.

9

139242C3

CONTAINER

ASSY, dual pump suction filter

1шт.

10

1285853C1

VALVE

ASSY, drain hose check

1шт.

12

1272153C1

VALVE

ASSY, hyd filter relief

1шт.

13

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 class 5

1шт.

14

1282384C1

SCREEN

gear pump suction filter

1шт.

15

148960C2

PLUG

filter locator

1шт.

16

1272154C1

FILTER

CARTRIDGE, PPH filter

1шт.

17

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

5 x 5-1/4 class 5

1шт.

18

139252C3

COVER

filter frame

2шт.

19

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

5 x 5-1/4 class 5

2шт.

20

406040R1

SCREW,5/16" - 18 x 1.25"

filter cover

4шт.

933347R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6MM pln

4шт.

11

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

1шт.

Выбрано товаров: 26
