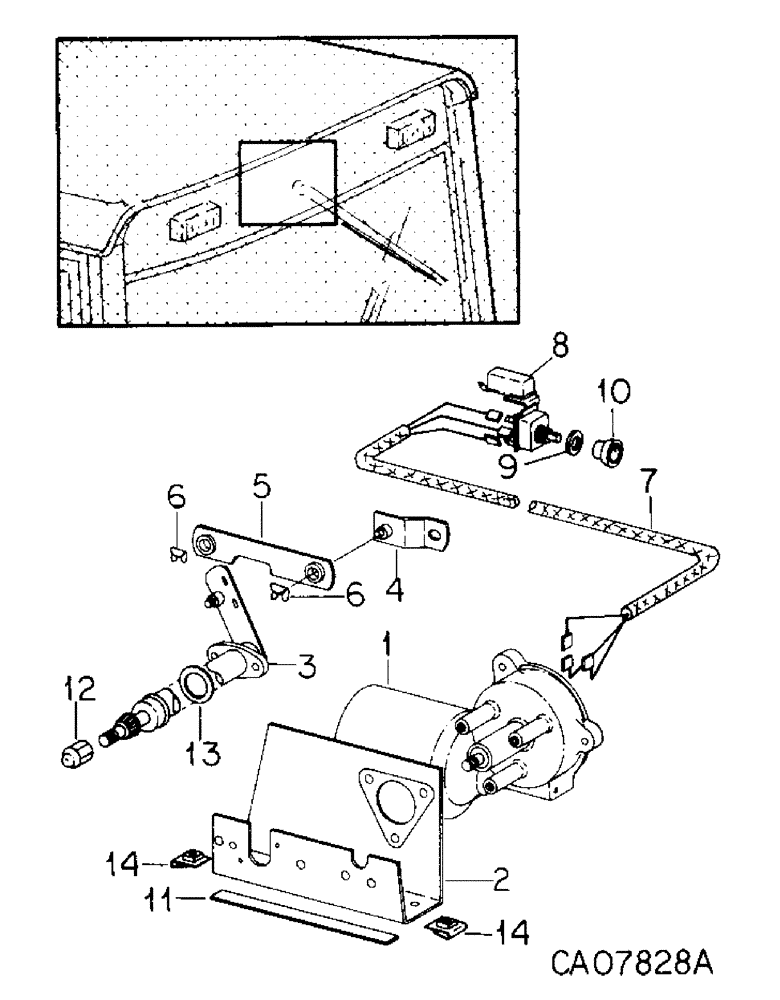

Запчасти Case IH 7488 (08-21) - ELECTRICAL, WINDSHIELD WIPER MOTOR AND CONNECTIONS (06) - ELECTRICAL

1267548C91

WIPER MOTOR

MOTOR ASSY, windshield wiper, Consists of Ref: 1-6, 12

1шт.

1

MOTOR, windshield wiper, Order motor assy, 1267548C91 (NSS)

1шт.

2

923480C1

BRACKET

mounting

1шт.

923479C1

BOLT

SCREW, w/lockwasher

3шт.

3

118123C1

PIVOT

SHAFT AND PIVOT ASSY

1шт.

118129C1

SCREW

w/lockwasher

2шт.

4

886257C1

ARM

ASSY, drive

1шт.

5

260514C91

LINK

ASSY, connecting

1шт.

148074C1

WASHER, link

2шт.

6

739487C1

CLIP

spring

2шт.

7

143340C1

HARNESS

ASSY, windshield wiper

1шт.

8

109222C1

SWITCH

W/CIRCUIT BREAKER, windshield wiper

1шт.

9

109311H

JAM NUT

7/16-28 hex face

1шт.

10

111282C1

KNOB

wiper control

1шт.

11

118149C1

BAR

wiper mounting, shim

1шт.

12

1267556C1

BUTTON

NUT, knurled driver

1шт.

13

23048R1

WASHER

.719 x 1.250 x .027 (Or as required)

4шт.

14

117829C1

NUT

J-type retainer

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
