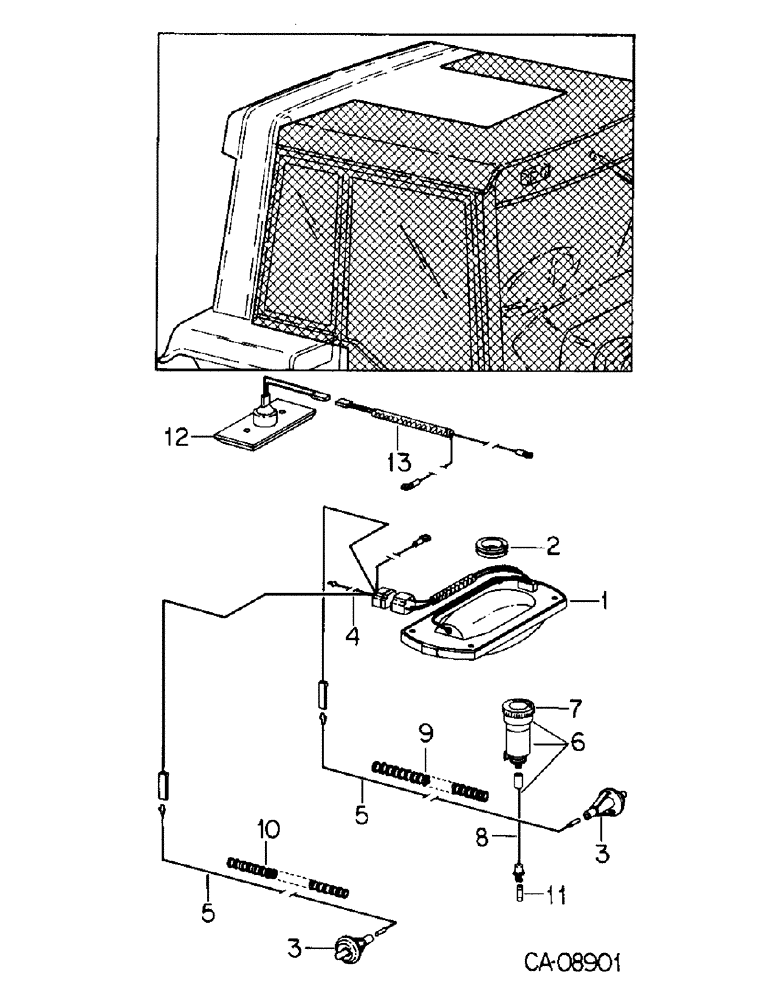

Запчасти Case IH 7488 (08-19) - ELECTRICAL, CIGAR LIGHTER, DOME LIGHT, CONSOLE LIGHT AND CONNECTIONS, RADIO AND SPEAKER HARNESS (06) - ELECTRICAL

1

245659C91

LAMP

LIGHT ASSY, dome, Only serviceable items are

1шт.

245679C1

LENS

dome light

1шт.

142457

BULB,C6, #1142, 12.8V

LAMP, type C-6 trade #1142

1шт.

1276099C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3 3/4"

SCREW, no. 8-18 x 2-3/4 polyseal o/hdcr tap

4шт.

118171C1

PACKAGE

KIT, fastener, Consists of

1шт.

FASTENER, TGL-type 2.0 plastic (NSS)

4шт.

2

363846R1

GROMMET

dome light

1шт.

3

1262107C1

SWITCH

ASSY, door

2шт.

4

83961C1

CABLE

HARNESS ASSY, dome light

1шт.

5

1262106C1

CABLE

ASSY, dome light

2шт.

6

1265632C91

CIGAR LIGHTER

LIGHTER ASSY, cigar, 12 volt, Includes Ref: 7, 8

1шт.

7

378781R91

PACKAGE

LIGHTER, pop-out unit

1шт.

8

1265633C1

CABLE

ASSY, cigar lighter

1шт.

9

CONDUIT, convoluted, LH wire, Furnish 31.0 in. from bulk roll marked 2643048R1

1шт.

10

CONDUIT, convoluted, RH wire, Furnish 31.0 in. from bulk roll marked 2643122R1

1шт.

11

9426334

FUSE,10 Amp, Type 3AG

3AG 10 amperes

1шт.

12

83882C91

LAMP

LIGHT ASSY, console illumination, Only service item is

1шт.

26617R1

BULB,C2F, #168, 14V

LAMP, type C-2F trade #168

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, oval hd cross rec tap

2шт.

13

83983C1

HARNESS

ASSY, console light

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 ext-int tooth lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

111619C1

STRAP

adjustable

1шт.

143177C1

HARNESS

ASSY, radio & speakers

1шт.

445635

FUSE,3 Amp, Type 1AG

1AG 3 amperes

1шт.
