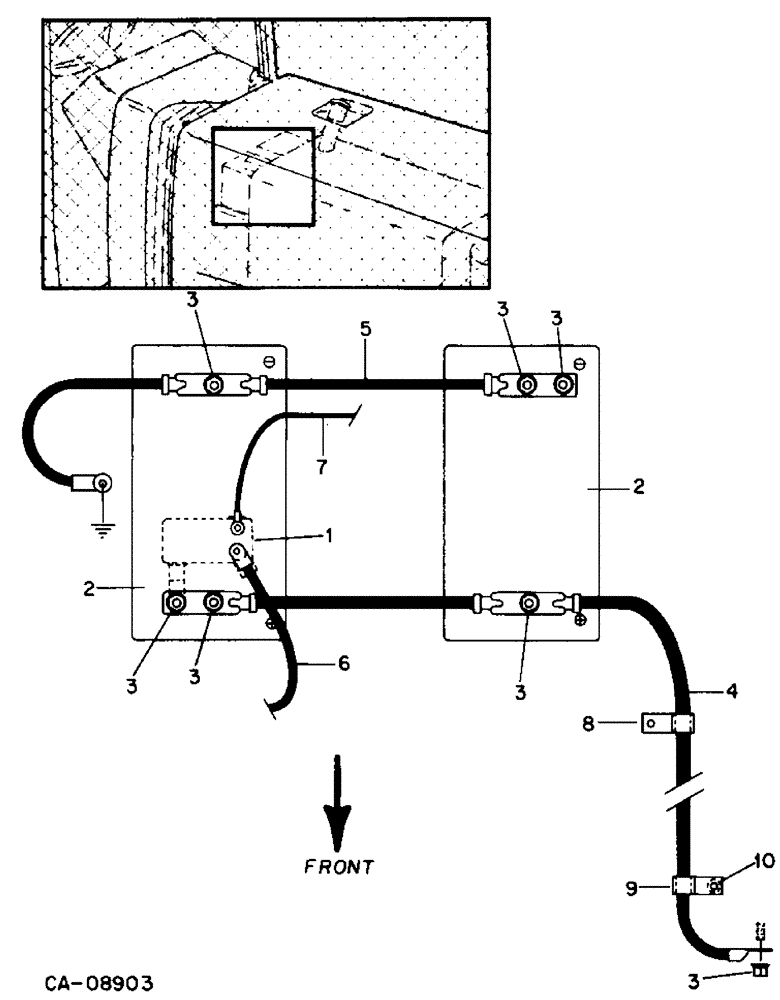

Запчасти Case IH 7288 (08-02) - ELECTRICAL, BATTERY, FUSE HOLDER AND CONNECTIONS (06) - ELECTRICAL

1

HOLDER, fuse, Refer to fuse holder & mounting listing, this group

1шт.

2

131010C1

BATTERY

12-volt maintenance free

2шт.

3

476074C1

NUT

3/8-16 terminal

7шт.

4

245504C1

CABLE PULLING GRIP

CABLE ASSY, battery negative

1шт.

30848R2

BOLT,Hvy Hex, M10 x 1.5 x 20mm, Cl 10.9

M10 x 20MM phc flg class 10.9

1шт.

6

245034C2

CABLE PULLING GRIP

CABLE ASSY, alternator output w/boot

1шт.

364910R1

BOOT

rubber

1шт.

7

245035C2

CABLE

ASSY, cab power w/boot

1шт.

364910R1

BOOT

rubber

1шт.

892033C1

CLAMP

1.250 dia. znp coated med clo, cab power cable

1шт.

8

892033C1

CLAMP

1.25 dia. znp coated closed, front frame LH side

3шт.

30664R2

BOLT,Hex Flg, M10 x 25, 10.9

M10 x 25MM phc flg class 10.9

1шт.

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2MM

1шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

1шт.

9

892033C1

CLAMP

1.25 dia. znp coated closed, on engine LH side behind fuel filters

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

10

561277R1

SPACER,5/8" Tube x 1/2"

5/8 x .500 tube, Used w/ref. no. 9

1шт.
