Запчасти Case IH 7288 (13-26) - SUPERSTRUCTURE, BLOWER ASSY, WITH PERMANENT MAGNET (05) - SUPERSTRUCTURE

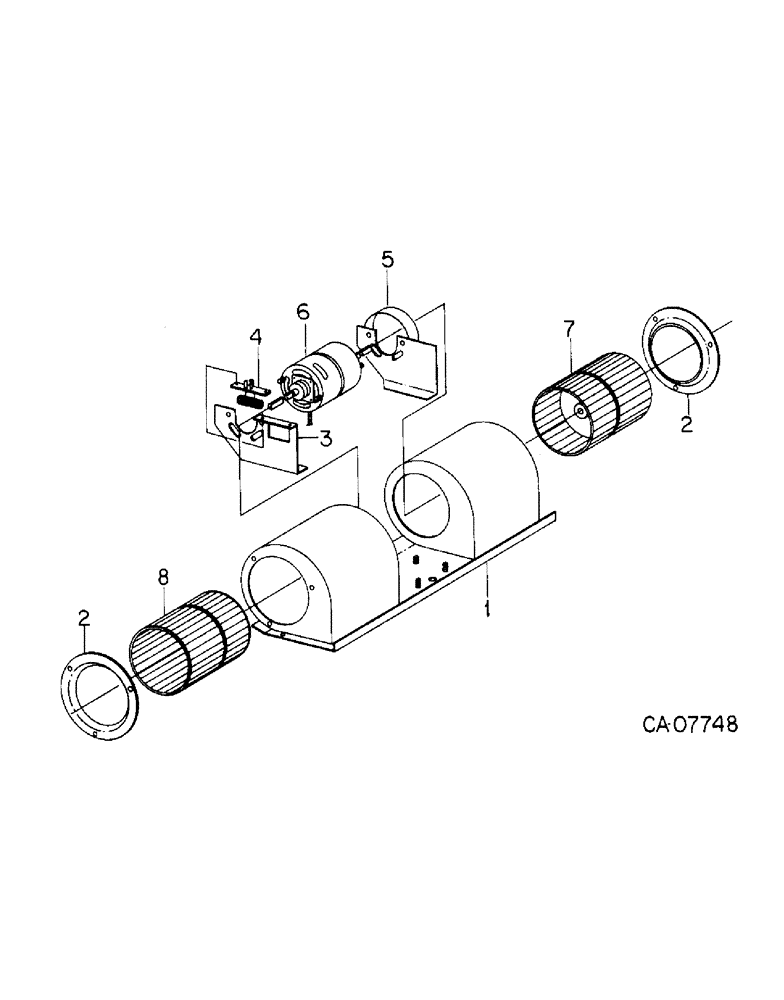

Схема запчастей Case IH 7288 - (13-26) - SUPERSTRUCTURE, BLOWER ASSY, WITH PERMANENT MAGNET (05) - SUPERSTRUCTURE
2
6
4
1
8
2
7
5
3

Артикул

Название

Примечание

Количество

1255878C91

BLOWER ASSY.

BLOWER ASSY W/PERMANENT MAGNET

1шт.

1

117785C2

HOUSING ASSY.

HOUSING ASSY, weldment

1шт.

2

65010C1

RETAINER

inlet

2шт.

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 polyseal p/hdcr tap

6шт.

3

1262098C1

SUPPORT ASSY.

SUPPORT ASSY, resistor

1шт.

66299C1

NUT

10-32 hex keps

2шт.

4

1255876C1

RESISTOR

ASSY

1шт.

449603

SCREW

no. 6 x 3/8 p/hdcr tap

2шт.

5

143167C1

SUPPORT ASSY.

BRACKET ASSY, RH

1шт.

66299C1

NUT

10-32 hex Keps

2шт.

6

142990C2

MOTOR, ELECTRIC

MOTOR, 12V, DC, P.M.

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

7288, 7488, Reman For New P/N's 142990C2 & 190333A1

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

66299C1

NUT

10-32 hex Keps

4шт.

7

539018R2

FAN

wheel LH

1шт.

8

539077R2

FAN

wheel RH

1шт.

Выбрано товаров: 16
