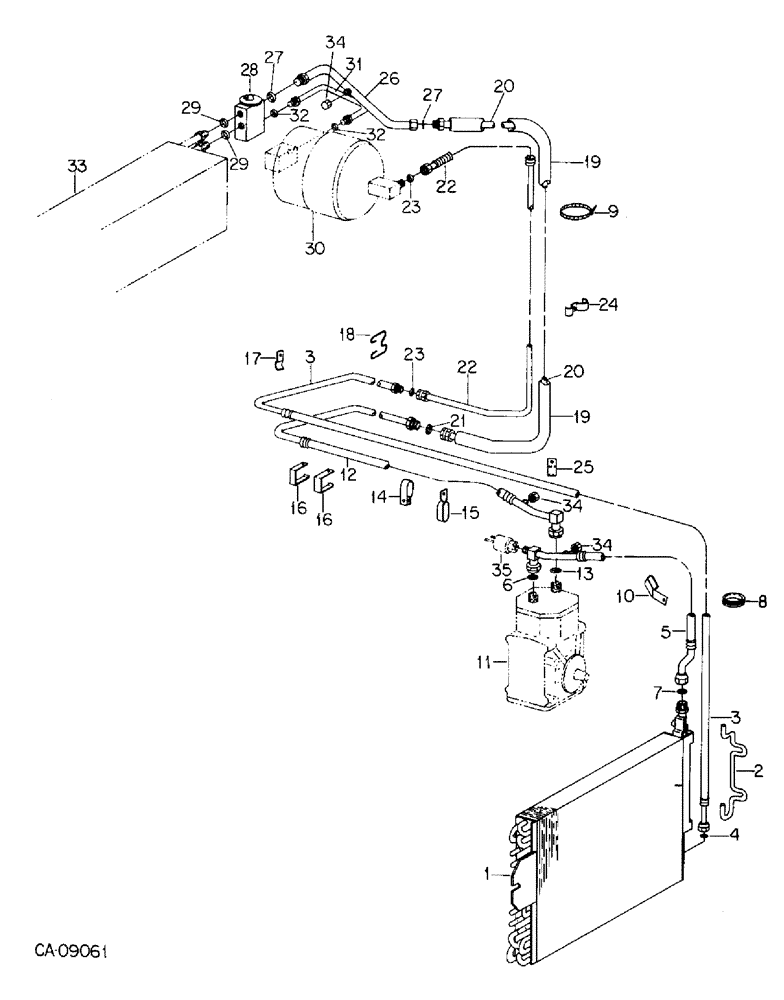

Запчасти Case IH 7288 (13-24) - SUPERSTRUCTURE, AIR CONDITIONING AND CONNECTIONS (05) - SUPERSTRUCTURE

1

1275806C2

CONDENSER

core

1шт.

1269395C1

NUT

5/16 - 18 large flange lock

1шт.

2

127361C2

ROD

HINGE, condenser

1шт.

1269395C1

NUT

5/16 - 18 large flange lock

2шт.

3

245891C1

HOSE ASSY.

HOSE ASSY, chassis liquid, Includes Ref: 4

1шт.

4

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

5

245892C1

HOSE ASSY.

HOSE ASSY, compression dishcarge, Includes Ref: 6, 7, 34

1шт.

6

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 class 5

1шт.

7

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5

1шт.

8

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

1-1/8 x 1-3/4 x 7/16 d/c rub, top of radiator shroud

1шт.

9

111619C1

STRAP

adjustable

6шт.

10

1250570C1

CLIP

twisted double hose

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

11

COMPRESSOR, air conditioning, See compressor, pulley & belts in this group

1шт.

12

245893C1

HOSE

ASSY, chassis suction, Includes ref. no. 13 & 34

1шт.

13

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 class 5

1шт.

14

224971C1

CLAMP

closed hose 1.875 dia.

1шт.

15

1250507C1

CLIP

twisted double hose

1шт.

16

1250508C1

CLAMP

CLIP, double hose, Under platform

2шт.

933965R1

LOCK WASHER,M10

2шт.

30284R1

NUT,M10, Cl 10

M10 CLASS 10

2шт.

17

1250581C1

CLAMP

liquid line

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

18

1262082C1

CLAMP

CLIP, double hose

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

19

1250573C1

TUBE,17.1 - 19.2 mm ID, 29.2 - 34.3 mm OD

HOSE, suction tube insulation

1шт.

20

143115C1

TUBE,0.625" OD, 1735 mm Length

ASSY, suction, Includes Ref: 21

1шт.

21

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 class 5

1шт.

22

143114C1

TUBE

ASSY, liquid, Includes Ref: 23

1шт.

23

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

24

143411C1

CLAMP

a/c tubes

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 polyseal p/hdcr tap

1шт.

118461C1

COVER

moulded rubber screw tip

1шт.

25

1250580C1

CLAMP

closed one hole

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

26

143267C3

TUBE,0.625" OD, 196 mm Length

ASSY, evaporator discharge, Includes Ref: 27, 34

1шт.

27

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 class 5

2шт.

28

118321C1

VALVE

bulbless expansion, 1-1/2 ton

1шт.

28

118321C1GV

VALVE

bulbless expansion, 1-1/2 ton

1шт.

29

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5

2шт.

30

RECEIVER, dryer, See heating and air conditioning core in this group

1шт.

31

1250438C1

TUBE ASSY.

TUBE ASSY, receiver dryer, Includes ref. no. 32

1шт.

32

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

33

CORE, combination evaporator & heater, See heating & air conditioning core in this group

1шт.

34

118188C1

CAP

3шт.

TAPE, insulation, Use 2440MM from bulk roll marked 118468C1

1шт.
