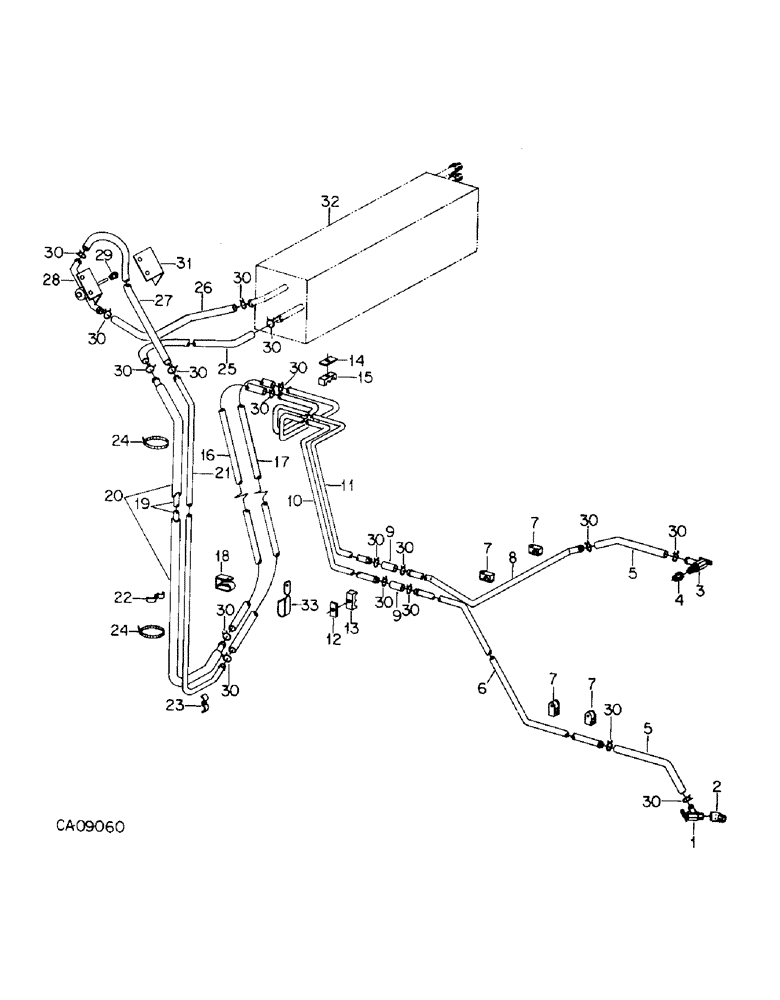

Запчасти Case IH 7288 (13-22) - SUPERSTRUCTURE, HEATER AND CONNECTIONS (05) - SUPERSTRUCTURE

1

914980R91

VALVE ASSY

1шт.

2

444056

ELBOW

3/8-18 pln auto 45D pipe street

1шт.

3

1287760C1

VALVE

ASSY

1шт.

4

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

ADAPTER, 1/2 to 3/8 pln out/h/hd pipe

1шт.

5

HOSE, heater outlet & inlet, Use 11 in. of 5/8 I.D. heater hose from bulk roll marked 117724C1

2шт.

6

1269308C2

HEATER TUBE

TUBE, return, front

1шт.

7

183822C1

CLAMP

4шт.

31050R1

BOLT, M6 x 50 phc cl 8.8 flg/hd

4шт.

31081R1

NUT,M6 x 1, Flg, Cl 8

M6 class 10 phc flg

4шт.

8

1269310C2

HEATER TUBE

TUBE, supply, front

1шт.

9

HOSE, connecting, Use 3 in. of 5/8 I.D. heater hose from bulk roll marked 117724C1

2шт.

10

1269309C2

HEATER TUBE

TUBE, return, rear

1шт.

11

1269307C2

HEATER TUBE

TUBE, supply, rear

1шт.

12

224905C1

STRIP

PLATE

1шт.

13

224968C2

STRIP

CLAMP

1шт.

30006R1

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

M8 x 40 phc class 10.9

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

14

224905C1

STRIP

PLATE

1шт.

15

224968C2

STRIP

CLAMP

1шт.

30008R1

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

30382R1

NUT,M8 x 1.25, Cl 10

M8 phc p/t class 10

1шт.

16

HOSE, heater supply, Use 70 in. of 5/8 I.D. heater hose from bulk roll marked 1255859C1

1шт.

17

HOSE, heater return, Use 70 in. of 5/8 I.D. heater hose from bulk roll marked 117724C1

1шт.

18

1250508C1

CLAMP

CLIP, double hose

1шт.

30504R1

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

BOLT, M10 x 20 crg class 8.8

1шт.

933965R1

LOCK WASHER,M10

1шт.

30284R1

NUT,M10, Cl 10

M10 class 10

1шт.

19

143116C1

HEATER TUBE,0.625" OD, 2000 mm Length

TUBE, heater inlet

1шт.

20

1250573C1

TUBE,17.1 - 19.2 mm ID, 29.2 - 34.3 mm OD

INSULATION, heater inlet tube

1шт.

21

143117C1

HEATER TUBE,0.625" OD, 1863.895 mm Length

TUBE, heater outlet

1шт.

22

143410C1

CLIP

one hole double

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 polyseal p/hdcr tap

1шт.

118461C1

COVER

moulded rubber screw tip

1шт.

23

1250579C1

CLAMP

CLIP, one hole double

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

111619C1

STRAP

adjustable

3шт.

25

HOSE, inlet tube to heater core, Use 11 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

26

HOSE, heater core to valve, Use 11 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

27

HOSE, valve to outlet tube, Use 23 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

28

111221C4

VALVE

heater control

1шт.

29

111282C1

KNOB

heater control

1шт.

30

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 type F hose

18шт.

31

109134C1

BRACKET

heater control

1шт.

1275100C1

SCREW, 10-16 x 3/8 polyseal p/hdcr tap

2шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 znd reg lock

2шт.

32

CORE, combination evaporator & heater, See heating & air conditioning core in this group

1шт.

33

1250507C1

CLIP

twisted double hose, open

1шт.
