Запчасти Case IH 7288 (13-10) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, SEARS, WITH AIR-OIL SUSPENSION (05) - SUPERSTRUCTURE

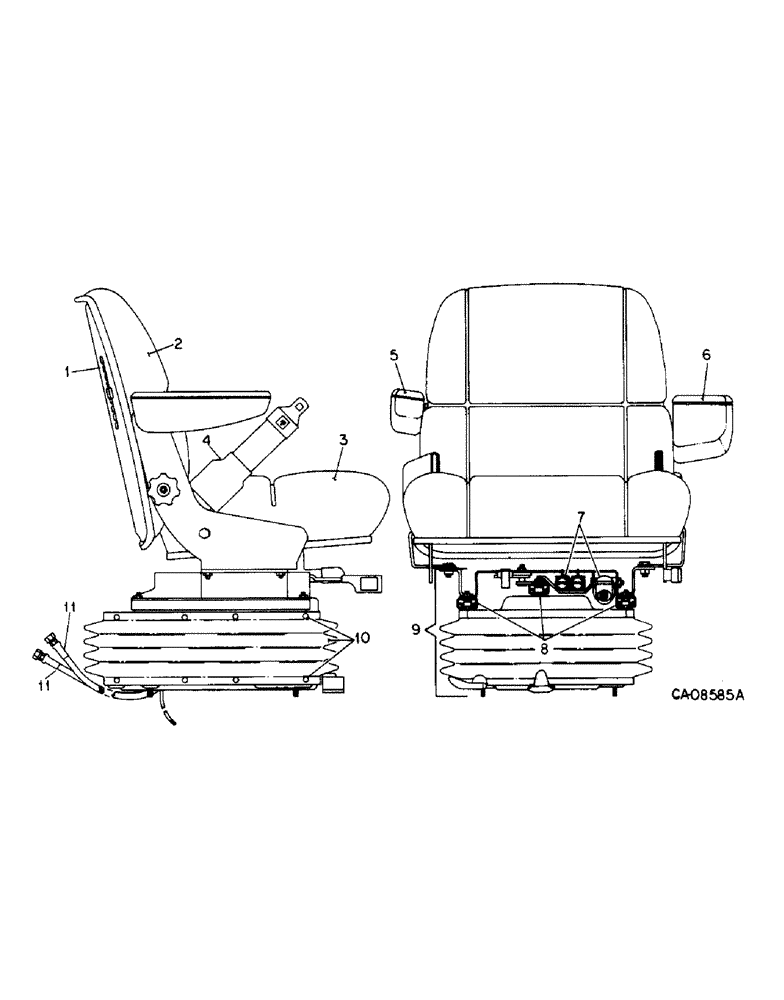

Схема запчастей Case IH 7288 - (13-10) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, SEARS, WITH AIR-OIL SUSPENSION (05) - SUPERSTRUCTURE
1
10
8
3
2
7
9
5
4
11
11
6

Артикул

Название

Примечание

Количество

SEAT ASSY, w/air oil suspension

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

1

245984C1

KIT

upper seat assy, Consists of

1шт.

SEAT ASSY, upper (NSS)

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

4шт.

2

143437C2

CUSHION

ASSY, back

1шт.

3

143436C1

CUSHION

ASSY, seat

1шт.

4

245987C1

SAFETY BELT

SAFETY BELT, Western, Brown, Replaces 143440C1, Consists of Bolt and Nut

1шт.

BELT ASSY, seat (NSS)

1шт.

BOLT, seat belt mounting (NSS)

2шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 phc p/t lock type 5

2шт.

5

245989C1

KIT

RH armrest assy, Consists of

1шт.

ARMREST ASSY, RH (NSS)

1шт.

BOLT, armrest stop (NSS)

2шт.

PLATE, RH cover (NSS)

1шт.

SCREW, tapping (NSS)

1шт.

WASHER, spring (NSS)

1шт.

6

245988C1

ARM

KIT, LH armrest assy, Consists of

1шт.

ARMREST ASSY, LH (NSS)

1шт.

BOLT, armrest stop (NSS)

2шт.

PLATE, LH cover (NSS)

1шт.

SCREW, tapping (NSS)

1шт.

WASHER, spring (NSS)

1шт.

7

245990C1

KIT

isolator service, Consists of isolator latch, lever springs, shock absorber and attaching parts

1шт.

8

245997C1

PACKAGE

KIT, slide rail service, Consists of

1шт.

SLIDE RAIL ASSY, outer (NSS)

2шт.

SLIDE RAIL ASSY, center (NSS)

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 phc type 8

6шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

6шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

12шт.

9

83814C1

KIT

isolator and suspension assy, Consists of

1шт.

HOUSING ASSY, lower (NSS)

1шт.

HOUSING/ISOLATOR ASSY, upper (NSS)

1шт.

SCISSORS ASSY (NSS)

1шт.

ROLLER (NSS)

4шт.

SHAFT, torque tube (NSS)

1шт.

BEARING, tube shaft (NSS)

1шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

2шт.

BUMPER, rubber (NSS)

2шт.

MODULE FINAL ASSY, hydraulic (NSS)

1шт.

PIN, trunnion (NSS)

2шт.

SPRING (NSS)

2шт.

WIRE, control (NSS)

1шт.

CLIP, LH and RH wire (NSS)

2шт.

CONTROL ASSY, height adjusting (NSS)

1шт.

HANDLE, height adjusting (NSS)

1шт.

SPRING (NSS)

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

TIE, cable (NSS)

1шт.

BEARING, tube (NSS)

4шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

4шт.

10

245992C1

BOOT

KIT, boot w/buttons, Consists of

1шт.

BUTTON, boot (NSS)

32шт.

BOOT, suspension (NSS)

1шт.

11

245996C1

KIT

hose service, Consists of

1шт.

HOSE ASSY (NSS)

2шт.

HOSE, drain (NSS)

1шт.

FITTING, coupler (NSS)

1шт.

CLAMP, hose (NSS)

1шт.

CABLE, tie (NSS)

1шт.

245994C1

KIT

accumulator service, inside boot, Consists of accumulator and connector w/o-ring

1шт.

245993C1

PACKAGE,SERVICE

KIT, air/oil suspension bearing, inside boot, Consists of

1шт.

ROLLER (NSS)

4шт.

BEARING, tube (NSS)

4шт.

SHAFT, cam roller (NSS)

1шт.

BEARING, roller (NSS)

2шт.

BEARING, cam follower (NSS)

1шт.

NUT, push (NSS)

1шт.

BEARING, shock absorber (NSS)

1шт.

245995C1

KIT

hydraulic module service, inside boot, Consists of

1шт.

MODULE, hydraulic (NSS)

1шт.

PIN, trunnion (NSS)

2шт.

SPRING, pin (NSS)

2шт.

245986C1

KIT

seat controls service, Consists of all necessary parts when servicing seat

1шт.
