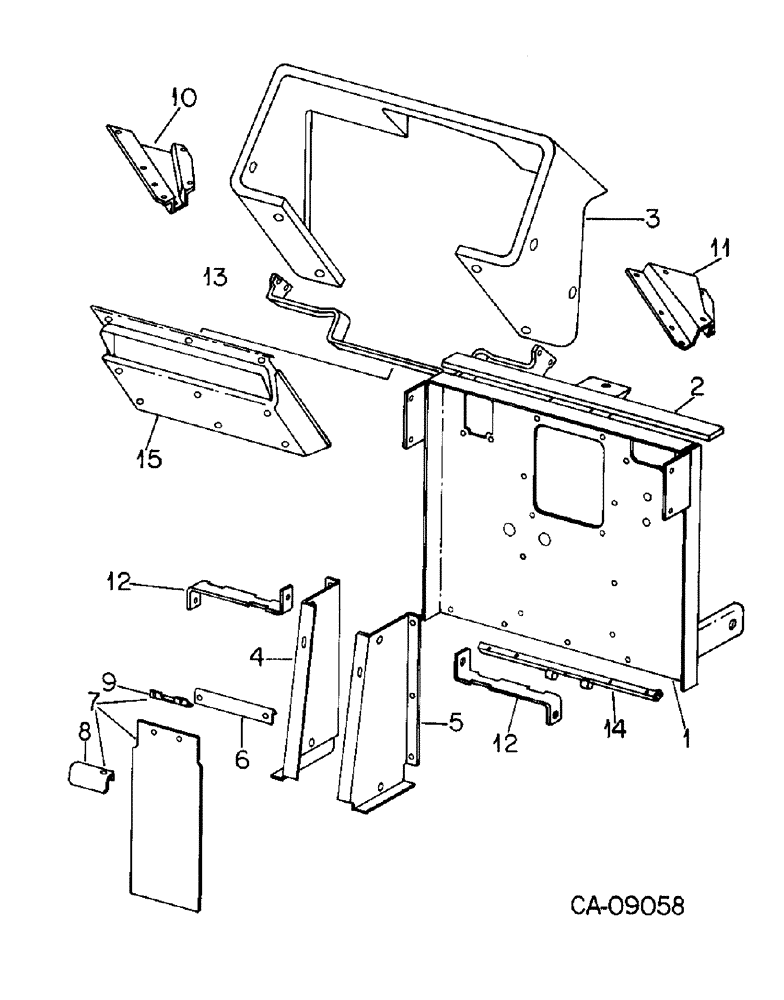

Запчасти Case IH 7288 (13-05) - SUPERSTRUCTURE, FIREWALL PANEL AND INSTRUMENT HOUSING (05) - SUPERSTRUCTURE

1

146932C2

PANEL

ASSY, firewall

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

6шт.

20285H

WASHER

.406 x .750 x .105 pln

6шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

5шт.

30284R1

NUT,M10, Cl 10

M10 class 10

5шт.

2

109350C1

SEALING STRIP

cab & firewall top, seal

1шт.

3

1251804C2

HOUSING

upper instrument

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, instrument hsg mtg, No. 10 x 3/4

11шт.

4

148858C4

SUPPORT

ASSY, firewall LH

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln clas 8.8

2шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2MM pln

2шт.

5

148859C3

SUPPORT ASSY.

SUPPORT ASSY, firewall RH

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

2шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2MM pln

2шт.

6

104027C1

SUPPORT

ASSY, supp cover mtg, plate

1шт.

1276073C1

SELF-TAP SCREW,Cross Flat Hd, 1/46" x 1/2"

SCREW, 1/4 x 1/2 polyseal mach

2шт.

7

120441C91

SUPPORT

firewall support, cover, Includes Ref: 8, 9

1шт.

8

104030C1

SUPPORT

firewall supp cover, handle

1шт.

9

104031C1

SUPPORT

firewall supp cover, retainer

1шт.

436525C1

RIVET,Pop, 1/4" x 1/2"

6.3 x 12.7MM break mandrel

2шт.

10

139364C1

SUPPORT

ASSY, inst. panel LH

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

3шт.

104036C1

NUT

instrument housing mounting

2шт.

11

139365C1

SUPPORT

ASSY, inst. panel RH

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

3шт.

104036C1

NUT

instrument housing mounting

2шт.

12

1270739C1

SUPPORT

pedal stop, bracket

2шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

13

104020C2

SUPPORT

inst. housing lower

1шт.

104036C1

NUT

instrument housing mounting

5шт.

931260R1

BOLT,Hex, M10 x 1.5 x 12mm, Cl 8.8, Full Thd

M10 x 12 pln class 8.8

2шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

2шт.

30284R1

NUT,M10, Cl 10

M10 class 10

2шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5MM phc

2шт.

1259543C1

SEAL

cable insul protector

1шт.

14

1251645C93

SUPPORT

ASSY, pedal return spring

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

2шт.

102635

NUT,3/8"-16, G5

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

Q1504

WASHER

10 x 22 x 1.5

1шт.

30523R1

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

M10 x 16MM class 8.8

2шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

M10 x 35 class 8.8

3шт.

15

148482C1

HOUSING

lower instrument

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, inst. housing mounting, No. 10 x 3/4

9шт.
