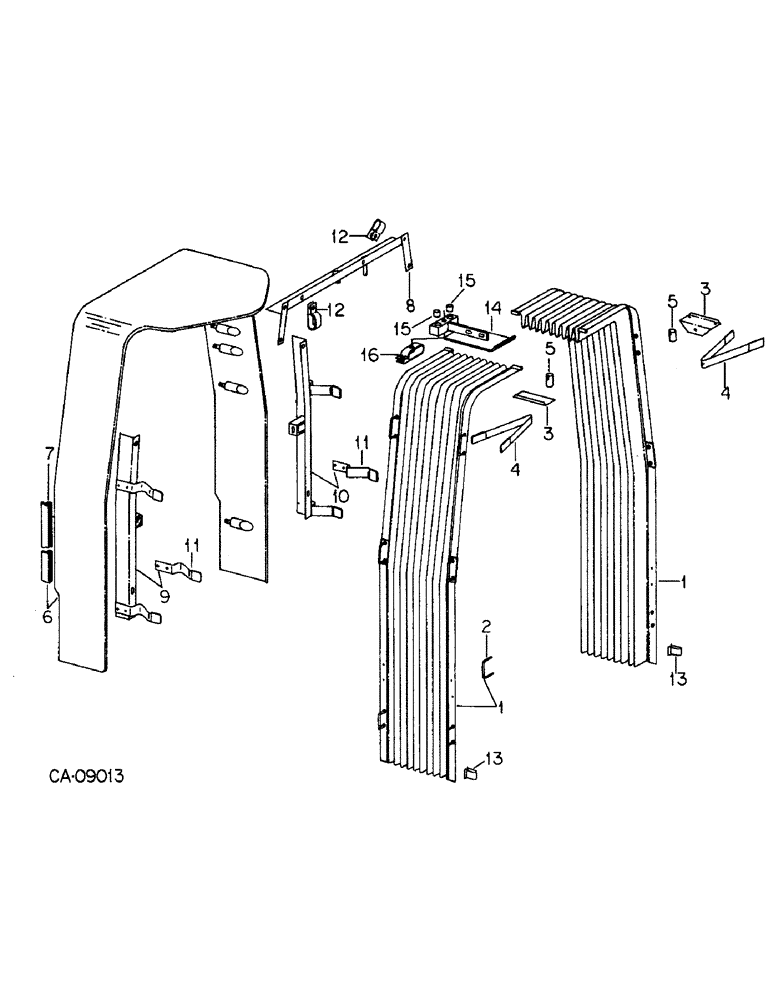

Запчасти Case IH 7288 (13-03) - SUPERSTRUCTURE, BELLOWS AND COWL (05) - SUPERSTRUCTURE

1

138683C5

SEAL

BELLOW ASSY, cab to hood, Includes Ref: 2

2шт.

2

138743C1

BOLT,#10 - 24 x 50mm W x 20mm L

U-BOLT

12шт.

26303R1

HARDWARE,#10-24

NUT, no. 10 phc mach screw type 1

24шт.

446153

WIRE CONNECTOR,10 Pole

.203 x .469 x .036 phc

24шт.

146741C1

NUT, 10-24 prevailing torque lock

24шт.

3

138761C1

BRACKET

bellow mtg

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

273924

SNAP RING

NUT, 1/4 cad p/t lock type 5

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

4

138716C1

SPRING

bellows support

2шт.

5

138710C1

SHAFT

bellows pivot

2шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad p/t lock type 5

2шт.

6

1269140C1

COWLING ASSY

COWL ASSY, cab, Includes Ref: 7

1шт.

7

147099C1

MOLDING

TRIM, cowl

1шт.

8

146935C3

BRACKET

ASSY, cowl top

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

9

146937C2

ANGLE

ASSY, cowl RH, Includes Ref: 11

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 flange lock

4шт.

177107C1

BOLT,Hex Serr, 1/2" - 13 x 3/4"

1/2-13 x 3/4 hex-hd flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

10

146938C2

ANGLE

ASSY, cowl LH, Includes Ref: 11

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 flange lock

4шт.

177107C1

BOLT,Hex Serr, 1/2" - 13 x 3/4"

1/2-13 x 3/4 hex-hd flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

11

138745C1

SPRING

cowl angle

4шт.

155499C1

RIVET

4шт.

12

224971C1

CLAMP

closed hose

2шт.

21889R1

HEADED PIN,3/8" x 1"

PIN, 3/8 x 1 hd type 1

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

120390

WASHER,1/2"

.562 x 1.375 x .086 (Use as required)

3шт.

13

146971C1

ANCHOR

CLIP, rear hood spring

2шт.

14

138713C3

BRACKET

bellows pivot

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

15

138770C1

BUSHING

bellow pivot

2шт.

16

1269385C1

CLIP

CLAMP, articulated pivot

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

22634R1

PIN,3/8" x 1 3/4"

3/8 x 1.750 hd type 1

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

22264R1

WASHER

.406 x 1.000 x .164

2шт.
