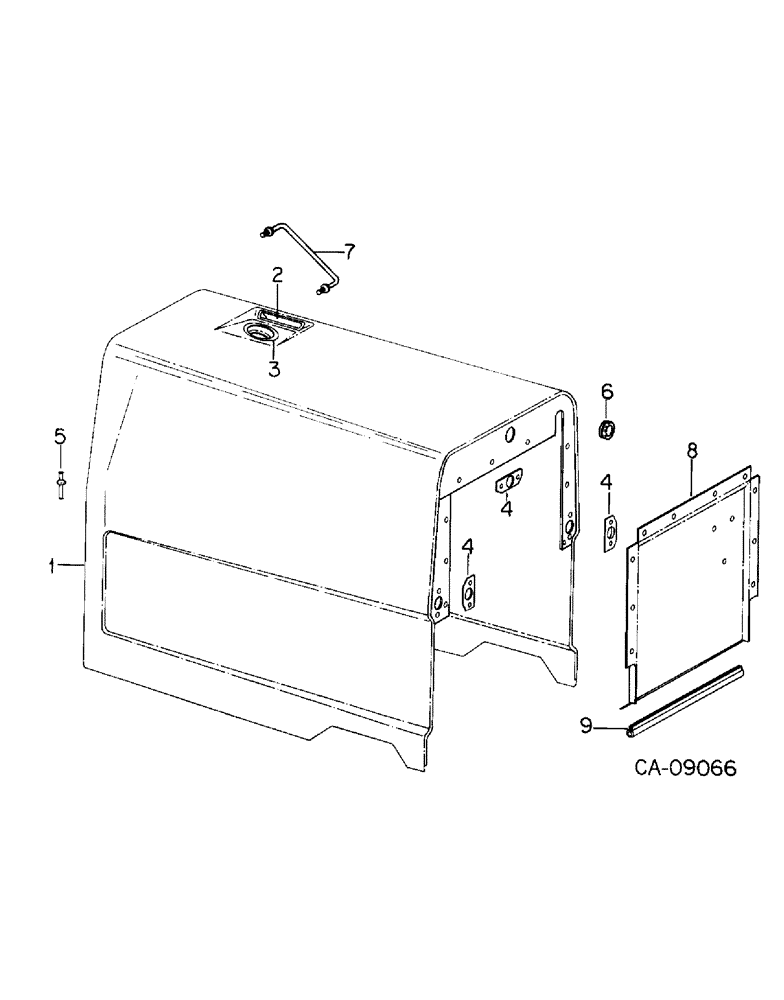

Запчасти Case IH 7288 (13-02) - SUPERSTRUCTURE, REAR HOOD (05) - SUPERSTRUCTURE

1

1268933C2

ENGINE HOOD

HOOD ASSY, rear

1шт.

931834R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

M12 x 30 class 8.8

4шт.

30185R1

WASHER,M12 x 28.5 x 4, HT

13.3 x 28 x 4MM phc

4шт.

2

138970C1

POCKET

rear hood hand

1шт.

3

141877C1

GROMMET

fuel filler neck

1шт.

4

132915C1

BAR

bumper, cup

3шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6mm

6шт.

931466R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

M8 x 12 phc class 8.8

6шт.

5

155499C1

RIVET

For fastening hood bellows springs

12шт.

6

376254R1

GROMMET

rear hood

1шт.

7

1251832C1

BOLT

BAR, assist handle

1шт.

120390

WASHER,1/2"

.562 x 1.375 x .086

2шт.

905263R1

NUT,M12 x 1.75, Cl 10

NUT, M12 phc p/t class 10

2шт.

8

1268722C1

SHIELD

ASSY, heat

1шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6mm

9шт.

931466R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

M8 x 12 phc class 8.8

9шт.

9

1268917C1

SEAL

heat shield

1шт.
