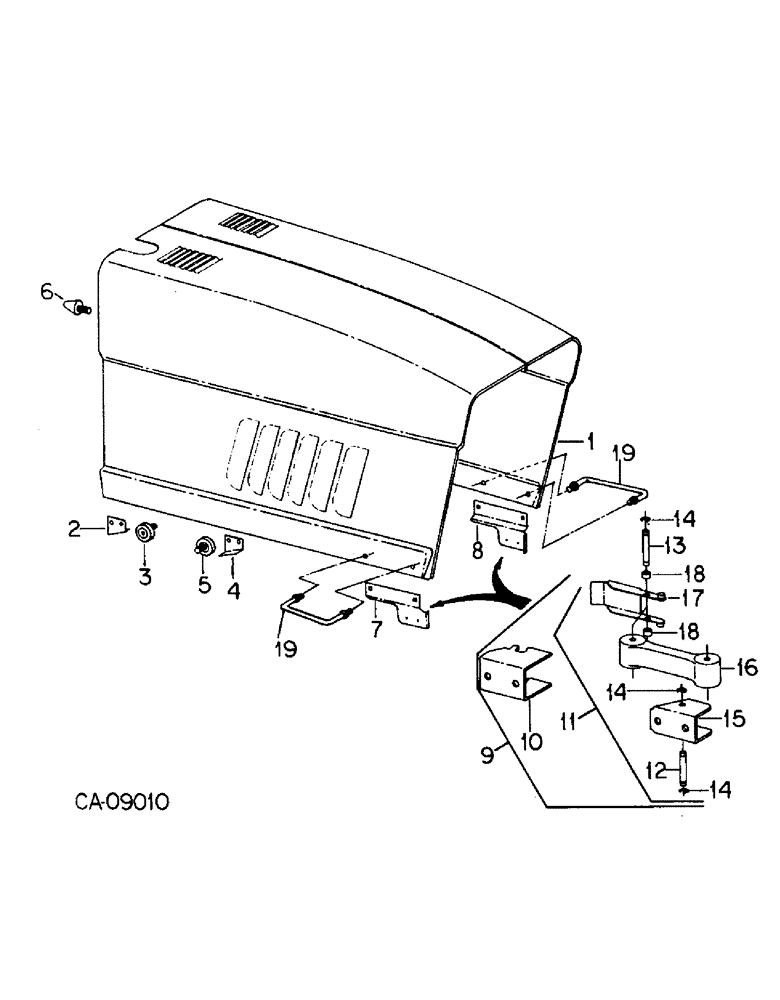

Запчасти Case IH 7288 (13-01) - SUPERSTRUCTURE, FRONT HOOD (05) - SUPERSTRUCTURE

1

1268880C2

HOOD ASSY, front, Includes Ref: 5, 8

1шт.

142271C1

SHIELD

heat 152.5 x 400MM

2шт.

142272C1

SHIELD

heat 305 x 850MM

1шт.

2

138786C1

STOP

rear RH channel

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

2шт.

931951R1

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

M6 x 16 pln class 8.8

2шт.

3

141831C3

ROLLER

track

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

138800C1

STOP

rear LH channel

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

2шт.

931951R1

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

M6 x 16 pln class 8.8

2шт.

5

141831C3

ROLLER

track

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

437385C1

BUMPER

rubber

3шт.

120376

NUT,5/16"-18, G5

3шт.

7

1268964C1

SUPPORT

hood draw latch RH

1шт.

8

1268965C1

SUPPORT

hood draw latch LH

1шт.

9

LATCH ASSY, hood, Order Ref: 10, 11

2шт.

10

1269167C1

BRACKET

over center latch

2шт.

1269388C1

NUT

3/8, 16 special hex

4шт.

1269389C1

WASHER

3/8 special lock

4шт.

11

1269168C2

STRAP

ASSY, hood latch, Consists of Ref: 12-18

2шт.

1269390C1

BOLT

M6 x 16 special hex-hd

4шт.

1269391C1

WASHER

M6 special lock

4шт.

1269392C1

NUT

M6 special hex

4шт.

12

1269323C1

AXLE PIN

PIN, latch strap pivot

2шт.

13

1269322C1

AXLE PIN

PIN, latch handle pivot

2шт.

14

1269373C1

RING

E-RING, no. 25 ext ret

8шт.

15

BRACKET, front mounting, Order Ref: 11 (NSS)

2шт.

16

STRAP, hood latch, Order Ref: 11 (NSS)

2шт.

17

HANDLE ASSY, over center, Order Ref: 11 (NSS)

2шт.

18

ROLLER, locking, Order Ref: 11 (NSS)

4шт.

19

1289029C1

BAR

assist handle

2шт.

933966R1

LOCK WASHER,M12

WASHER, 12MM lock

4шт.

9706685

NUT,M12 x 1.75, Cl 8

M12 znd class 8

4шт.
