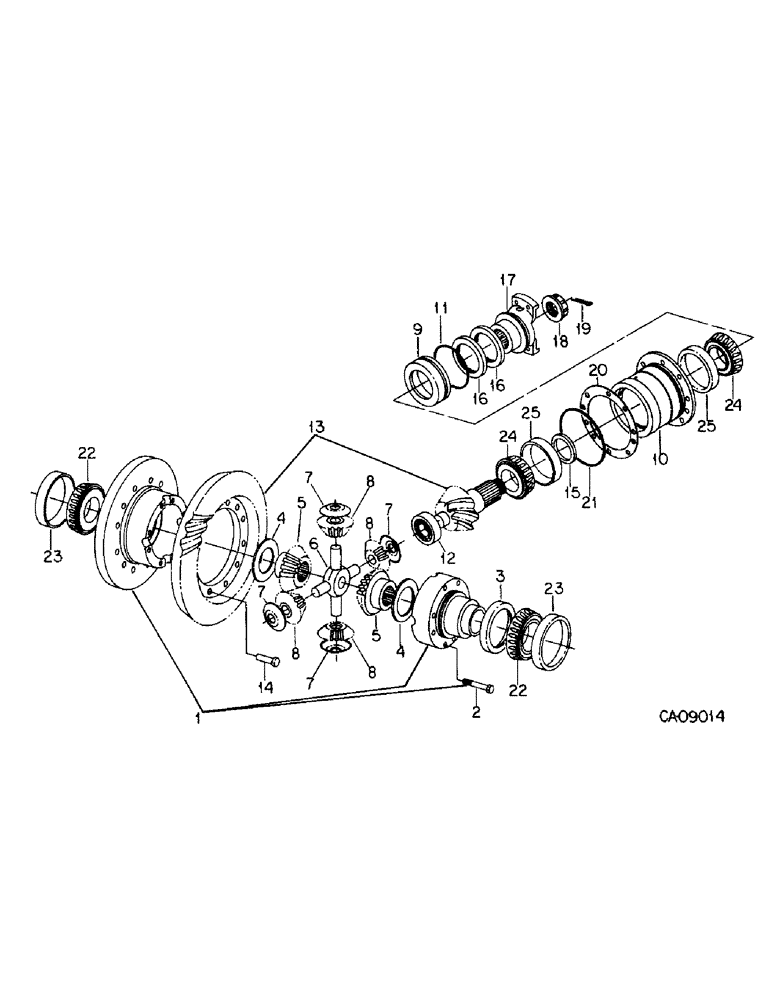

Запчасти Case IH 7288 (07-42) - DRIVE TRAIN, FRONT DRIVE AXLE, DIFFERENTIAL (04) - Drive Train

1

84861C91

CASE ASSY.

CASE ASSY, diff, w/screws, Includes Ref: 2

1шт.

2

84864C1

BOLT

M12 x 67MM 10.9

8шт.

3

84865C1

DEFLECTOR

oil

1шт.

4

84870C1

WASHER

diff bevel gear

2шт.

5

84869C1

GEAR

diff bevel

2шт.

6

84866C1

SPIDER ASSY.

SPIDER, diff

1шт.

7

84868C1

WASHER

diff pin thrust

4шт.

8

84867C1

GEAR

GAR, diff pinion

4шт.

9

84853C1

RETAINER

pinion seal

1шт.

10

84829C1

RETAINER

input bearing

1шт.

84831C1

WASHER

12MM

8шт.

30043R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

M12 x 35 phc clas 10.9

8шт.

11

84822C1

O-RING,120.65mm ID x 4.77mm Width

1шт.

12

84833C91

BEARING

cylindrical roller

1шт.

13

84856C91

GEAR-SET

GEAR SET, ring & pinion, Includes Ref: 14

1шт.

14

157490R1

RIVET

12шт.

15

84834C1

PACKAGE

pinion bearing shim, Consists of

1шт.

SHIM, 6.9MM (NSS)

2шт.

SHIM, 7.0MM (NSS)

2шт.

SHIM, 7.02MM (NSS)

2шт.

SHIM, 7.04MM (NSS)

2шт.

SHIM, 7.06MM (NSS)

2шт.

SHIM, 7.08MM (NSS)

2шт.

SHIM, 7.10MM (NSS)

2шт.

SHIM, 7.20MM (NSS)

2шт.

SHIM, 7.32MM (NSS)

2шт.

SHIM, 7.44MM (NSS)

2шт.

SHIM, 7.56MM (NSS)

2шт.

SHIM, 7.68MM (NSS)

2шт.

SHIM, 7.80MM (NSS)

2шт.

SHIM, 7.92MM (NSS)

2шт.

16

84854C91

OIL SEAL

SEAL, oil

2шт.

17

84855C1

YOKE

ASSY W/SHIELD

1шт.

18

84860C1

NUT

flanged castellated

1шт.

19

103390

COTTER PIN

PIN, 1/8 x 2-1/4 pln cot

1шт.

20

84848C1

PACKAGE

pinion retainer bearing shim, Consists of

1шт.

SHIM, 1.5MM (NSS)

3шт.

SHIM, 0.5MM (NSS)

3шт.

SHIM, 0.3MM (NSS)

3шт.

SHIM, 0.2MM (NSS)

3шт.

SHIM, 0.25MM (NSS)

3шт.

21

84832C1

O-RING

1шт.

22

84874C91

BEARING

ASSY, cone

2шт.

23

84873C1

BEARING

cup

2шт.

24

84881C91

BEARING

ASSY, cone

2шт.

25

84880C1

BEARING

cup

2шт.
