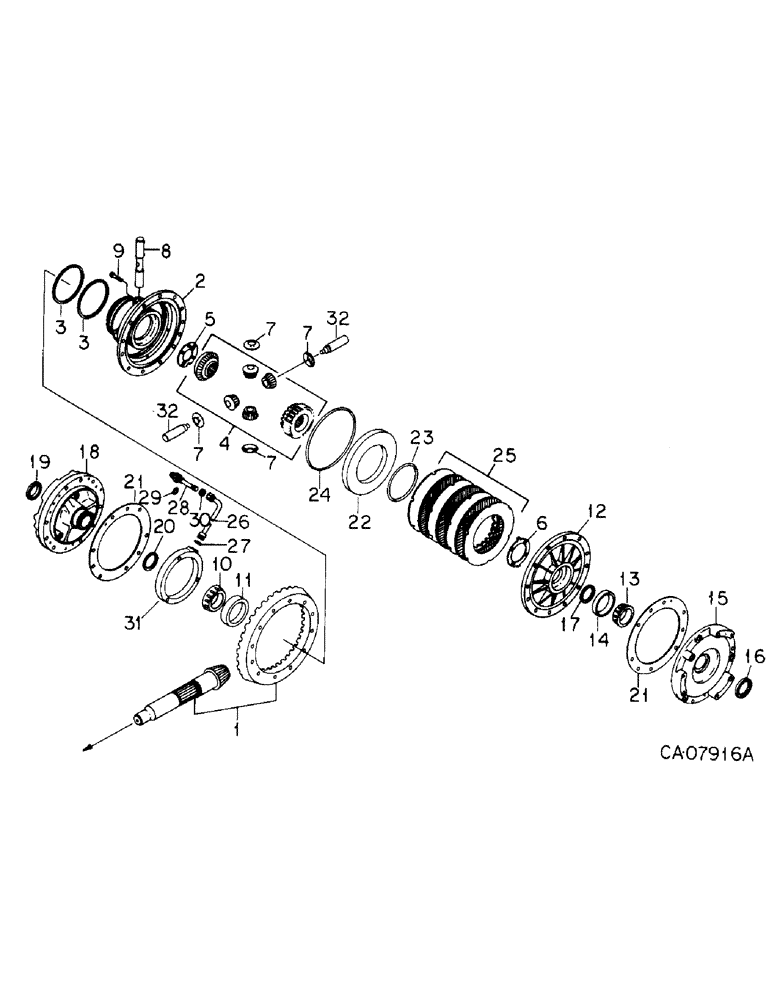

Запчасти Case IH 7288 (07-25) - DRIVE TRAIN, DIFFERENTIAL AND BEVEL GEARS, 7288 TRACTOR (04) - Drive Train

1

1270676C1

GEAR-SET

BEVEL GEARS, matched set

1шт.

2

120677C3

CASE

diff RH

1шт.

30386R1

DOWEL,M10 x 55

PIN, 10HD x 55MM pln dowel

6шт.

3

148939C1

SEALING RING,OD 200.60 mm

RING, diff lock seal, or

2шт.

3

139068C1

RING

diff lock seal

2шт.

4

1264890C93

GEAR-SET

GEAR SET, differential 10/20T, Consists of

1шт.

GEAR, dif. bevel, 20T (NSS)

1шт.

GEAR, dif pinion, 10T (NSS)

4шт.

GEAR, dif bevel, 20T w/lock (NSS)

1шт.

1259766C1

THRUST WASHER

thrust

1шт.

1259767C1

THRUST WASHER,38mm ID x 160mm OD x 1.6mm Thk

lock thrust

1шт.

1270574C1

THRUST WASHER,40mm ID x 70mm OD x 1.6mm Thk

pinion thrust, steel

4шт.

5

1259766C1

THRUST WASHER

diff thrust

1шт.

6

1259767C1

THRUST WASHER,38mm ID x 160mm OD x 1.6mm Thk

diff lock thrust

1шт.

7

1270574C1

THRUST WASHER,40mm ID x 70mm OD x 1.6mm Thk

diff pinion gear

4шт.

8

1270641C1

SHAFT

diff pinion, long

1шт.

9

1285778C1

BOLT,Hex, M10 x 1.5 x 33mm, Cl 10.9

BOLT, diff pinion pin

2шт.

10

622336C91

ROLLER BEARING

ASSY, cone RH

1шт.

11

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, cup RH

1шт.

12

1264905C1

CASE

diff LH

1шт.

30329R1

WASHER,M17.5 x 30 x 4, HT

17.3 x 30 x 4MM

12шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

13

622336C91

ROLLER BEARING

ASSY, cone LH

1шт.

14

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, cup LH

1шт.

15

137756C2

RETAINER

LH diff bearing

1шт.

30350R1

DOWEL,M12 x 65

PIN, 12 x 65MM pln hdn dowel

5шт.

16

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

retainer diff lip LH

1шт.

17

139060C1

SEALING RING

RING, diff bearing seal, or

1шт.

17

148941C1

RING

diff bearing seal

1шт.

18

1264784C92

RETAINER

S ASSY, RH differential

1шт.

30350R1

DOWEL,M12 x 65

PIN, 12 x 65MM pln hdn dowel

5шт.

30346R1

DOWEL,M10 x 20

PIN, 10 x 20Mm pln hdn dowel

2шт.

934252R1

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

6шт.

19

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

diff retainer lip RH

1шт.

20

139060C1

SEALING RING

RING, diff retainer seal, or

1шт.

20

148941C1

RING

diff retainer seal

1шт.

21

1264586C91

PACKAGE

diff. retainer shim, Consists of

1шт.

SHIM, 0.178MM (NSS)

2шт.

SHIM, 0.305MM (NSS)

2шт.

SHIM, 0.737MM (NSS)

2шт.

SHIM, 0.102MM (NSS)

2шт.

SHIM, 0.089MM (NSS)

2шт.

22

120490C1

PISTON

diff lock

1шт.

23

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 class 5

1шт.

24

27929R1

O-RING,0.139" Thk x 11.984" ID, -278, Cl 5, 75 Duro

12 x 12-1/4 class 5

1шт.

25

1264587C91

PACKAGE

diff. lock friction plate, Consists of

1шт.

PLATE, dif lock friction (NSS)

3шт.

PLATE, dif lock separator (NSS)

4шт.

26

1264894C1

HYD TUBE,9.52 mm OD, 212, 64 mm Length

TUBE ASSY, diff lock

1шт.

27

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 class 5

1шт.

28

120674C1

UNION

diff lock

1шт.

29

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

30

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock

1шт.

31

120675C1

RING

diff lock slip

1шт.

32

1285776C1

SHAFT

diff pinion, short

2шт.
