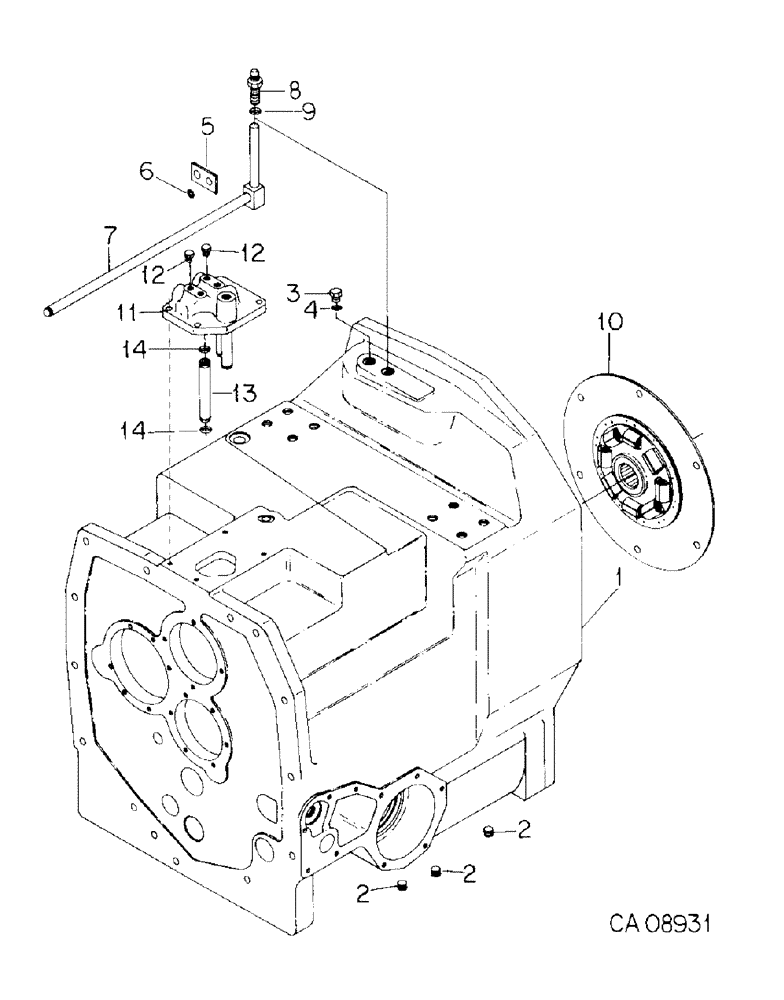

Запчасти Case IH 7288 (07-01) - DRIVE TRAIN, CLUTCH HOUSING (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
1277139C92
HOUSING
ASSY, clutch, Consists of
1шт.
HOUSING, clutch (NSS)
1шт.
30357R1
PLUG,M50, Tapered
50MM tapered cup
1шт.
30345R1
DOWEL,M10 x 25
PIN, 10 x 25MM pln hdn dowel
2шт.
30349R1
PIN
12 x 30MM pln hdn dowel
2шт.
148958C2
SEAL,25.95mm ID x 32.05mm OD x 7.5mm Thk
shift rail seal
1шт.
30591R1
PLUG,M25, Tapered
25MM tapered cup
1шт.
9409961
DRAIN PLUG,Sq Soc, 3/4"-14 NPTF
PLUG, 3/4-14 C-Z sq/skt auto drain
3шт.
9410358
PLUG
3/8 C-Z str thd o-ring boss
1шт.
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6
1шт.
1280561C1
SLEEVE
1шт.
2
9409961
DRAIN PLUG,Sq Soc, 3/4"-14 NPTF
PLUG, 3/4-14 C-Z sq/skt auto drain
3шт.
3
9410358
PLUG
3/8 C-Z str thd o-ring boss
1шт.
4
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6
1шт.
5
149018C2
BAR
spray tube seal
1шт.
6
355966R1
O-RING,0.424" ID x 0.103" Width
7/16 x 5/8 class 5
1шт.
7
1286377C1
TUBE,569,145 mm Length
ASSY, spray lub
1шт.
30487R1
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
M12 x 40 pln class 8.8
1шт.
8
9403255
FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree
UNION, 1/2 C-Z hyd fld tube bulkhead
1шт.
10
1251902C2
PLATE ASSY.
PLATE ASSY, drive
1шт.
930052R1
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
M12 x 25 pln class 8.8
6шт.
30177R1
WASHER,M12 x 24.5 x 3, HT
13.8 x 24 x 3MM phc
6шт.
11
144185C2
MANIFOLD
shift clutch press & lube
1шт.
930140R1
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
M10 x 30 pln class 8.8
4шт.
12
444614
PLUG,Hex Hd, 1/8"-27, Brass
1/8-27 pln h/hd pipe
2шт.
13
144183C1
TUBE,0.75" OD, 141.58 mm Length
shift clutch press & lub
3шт.
14
392385R1
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
-016, 90 Duro, .614" ID x .070" Thk
6шт.
