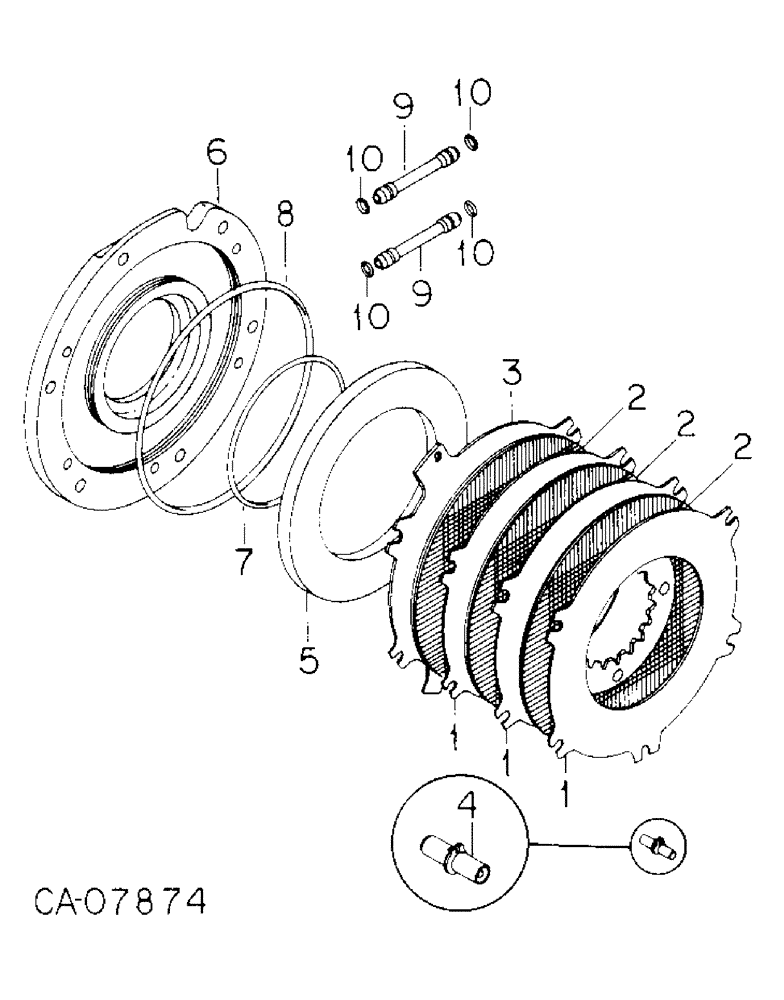

Запчасти Case IH 7288 (04-01) - BRAKES, MASTER BRAKES (5.1) - BRAKES

1

PLATE, separator, Note A, 7288-6 used, 7488-8 used

1шт.

2

PLATE, brake friction, Note A, 7288-6 used, 7488-8 used

1шт.

3

PLATE, brake return, Note A

2шт.

4

139185C2

TUBE

ASSY, brake adjust.

6шт.

5

120490C1

PISTON

brake

2шт.

6

137760C1

COVER

brake

2шт.

931730R1

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

M16 x 100 pln class 8.8, LH brake cover

6шт.

30391R1

BOLT,Hex, M16 x 110, 8.8

M16 x 110MM pln type 8.8, RH brake cover

6шт.

7

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 class 5

2шт.

8

27929R1

O-RING,0.139" Thk x 11.984" ID, -278, Cl 5, 75 Duro

12 x 12-1/4 class 5

2шт.

9

120514C1

TUBE

oil inlet brake

4шт.

10

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5

8шт.

1264581C91

KIT

PACKAGE, brake plate, Consists of

1шт.

PLATE, separator (NSS)

8шт.

PLATE, brake friction (NSS)

8шт.

PLATE, brake return (NSS)

2шт.
