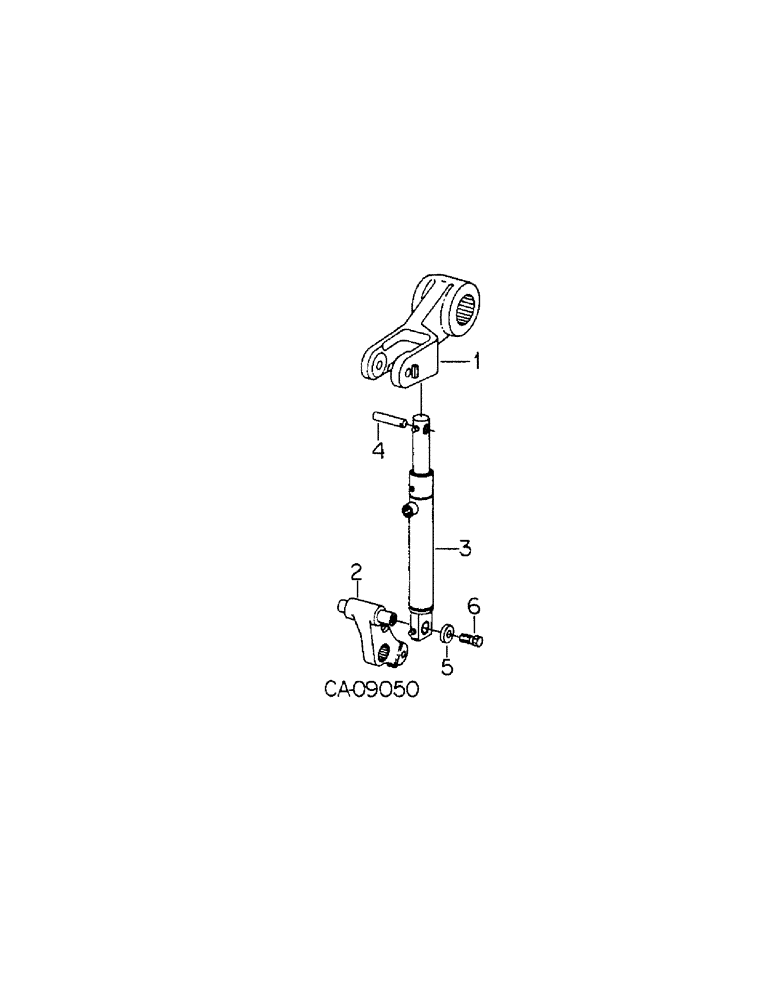

Запчасти Case IH 7288 (09-06) - FRAME, HITCH LIFT ASSIST, SINGLE CYLINDER, 7288 TRACTORS (12) - FRAME

1

145469C2

ARM

rockshaft RH

1шт.

2

145470C2

SUPPORT

BRACKET, torsion bar anchor RH

1шт.

30186R1

WASHER,M16 x 34.5 x 5, HT

17.3 x 34 x 5MM phc

2шт.

30075R1

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

M16 x 100 phc class 10.9

1шт.

30859R1

BOLT, M16 x 135MM phc class 10.9

1шт.

3

149699C94

CYLINDER

ASSY, hyd ram 1.5 inch, See parts catalog cyl-1 for service parts. See group 10 this catalog for connections

1шт.

4

145474C1

PIN,19.05mm OD x 112mm L

cylinder mtg

1шт.

30570R1

SPLIT PIN/SAFETY PIN

PIN, 6 x 55MM pln cld spr

1шт.

5

145678C2

WASHER

17MM flat

1шт.

6

30607R1

BOLT,Hex, M16 x 2 x 210mm, Cl 10.9

M16 x 210 phc class 10.9

1шт.
