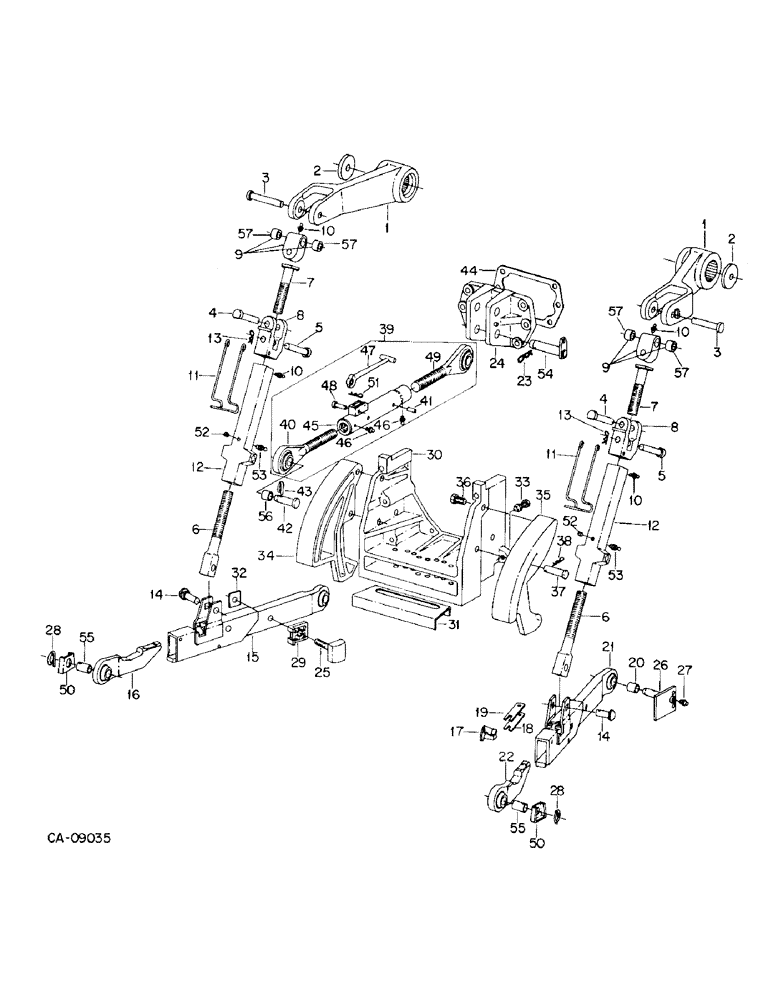

Запчасти Case IH 7288 (09-04) - FRAME, THREE POINT HITCH, 7288 TRACTORS (12) - FRAME

1

145655C1

ARM

rockshaft, w/o hitch lift assist

2шт.

1

ARM, rockshaft, w/hitch lift assist, Refer to hydraulic hitch lift assist listing, this group

1шт.

2

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

2шт.

3

108590C1

PIN,19.05mm OD x 120.65mm L

headed

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

108582C1

PIN

3/4 x 3-3/4 headed

2шт.

5

27357R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3.750 pln hd type 5

2шт.

6

149837C1

ROD

lower leveling

2шт.

7

149838C1

ROD

upper leveling

2шт.

8

108585C1

YOKE

lift link, w/o hitch lift assist, w/single hitch lift assist

2шт.

8

1266968C1

YOKE

lift link, w/double hitch lift assist

2шт.

9

1286725C91

BRACKET, PIVOT

SWIVEL ASSY, lift link w/bushings, Includes Ref: 57

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

11

123464C1

CLAMP

turnbuckle lock, bail

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

12

149836C2

TURNBUCKLE

lift link

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

13

480523R1

HAIR PIN COTTER

quick attachable

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

14

109088C3

CARRIAGE BOLT

PIN, leveling screw housing sq. neck

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

15

1266815C93

LINK

W/BUSHINGS, front section LH

1шт.

16

1266820C1

LINK

ASSY, rear section LH

1шт.

17

398399R1

LATCH

lower link

2шт.

18

382192R1

SPRING

lower link latch

2шт.

19

382193R1

SPRING

stiffener

2шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 pln type 5

2шт.

31029R1

PIN,M12 x 60, Coiled

12 x 60MM pln cld spr

2шт.

20

71808C1

BUSHING

front lower link ball

2шт.

21

1266816C93

LINK

W/BUSHING, front section RH

1шт.

22

1266821C1

LINK

ASSY, rear section RH

1шт.

23

486830R1

COTTER PIN

PIN, quick attachable cot.

1шт.

24

1266970C2

BRACKET

ASSY, upper link

1шт.

30095R1

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

M20 x 80 phc class 10.9

6шт.

22390R1

PIN,7/16" x 1 3/4", Coiled

1шт.

25

224499C3

BUMPER

ASSY, cam

2шт.

22244R1

LOCK NUT

3/4 p/t lock type 5

2шт.

26

70461C2

PIN

ASSY, lower link

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Lower link pin 1/4"-28 NPT x .54" lg

2шт.

28

392181R91

PIN

ASSY, lower link drawbar

2шт.

29

1266811C1

SPACER

cat. III

2шт.

30

142615C1

SUPPORT

cam limiter & drawbar

1шт.

67872C1

WASHER

.656 ID x 1.25 OD x .25 thk

8шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

30363R1

BOLT,Hex, M16 x 2 x 190mm, Cl 10.9

M16 x 10 phc class 10.9

4шт.

30819R1

BOLT,Hex, M16 x 2 x 190mm, Cl 10.9

M16 x 190 phc p/t class 10.9

2шт.

31

123121C1

CHANNEL

drawbar wear

1шт.

32

70479C1

SHIM

.067 thick

12шт.

32

70480C1

SHIM

.033 thick

2шт.

33

142621C1

BOLT,Hex, M16 x 55mm, Cl 10.9

SCREW, draft adjusting

2шт.

142622C1

NUT

M16 hex jam

2шт.

34

142583C1

CAM

sway limiter LH

1шт.

35

142584C1

CAM

sway limiter RH

1шт.

36

27432R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Cl 8

3/4 x 1-3/4 phc p/t type 8, cam mounting pivot

2шт.

37

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2.250 hd type 1

2шт.

38

PIN, QA cotter, Use two pins from package 402708R1

1шт.

39

1282062C91

UPPER LINK

LINK ASSY, top

1шт.

40

1282063C1

LIFT LINK END ASSY

ASSY, LH thread

1шт.

41

31042R1

PIN,M6 x 38, Coiled

6 x 38MM hv pln cld/spr

2шт.

42

392211R2

PIN

upper link implement

1шт.

42

374132R1

PIN

upper link implement, Note A

1шт.

43

392181R91

PIN

ASSY, upper link

1шт.

44

142630C1

GASKET

upper link bracket opening

1шт.

45

1272137C1

TURNBUCKLE, upper link

1шт.

46

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

47

108592C2

HANDLE

upper link turnbuckle

1шт.

48

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1.750 pln hd type 1

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

49

1282066C1

BALL JOINT

ASSY, RH thread

1шт.

50

404788R1

SHIELD

linch pin

2шт.

51

517843R1

COTTER PIN

PIN, QA cotter

1шт.

52

444691

PLUG

1/4-18 pln hex/skt auto pipe

2шт.

53

273349

FITTING

1/4 ptf x/short lub

2шт.

54

1266981C1

PIN

ASSY, upper link bracket

1шт.

55

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

lower link hitch point, Note A

2шт.

56

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

upper link rear ball, Note A

1шт.

57

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

lift link swivel

4шт.

407208R1

PACKAGE

QA cotter pins, Contains 14 #6 pins

1шт.
