Запчасти Case IH 7288 (10-50) - HYDRAULICS, HYDRAULIC SEAT CONNECTIONS (07) - HYDRAULICS

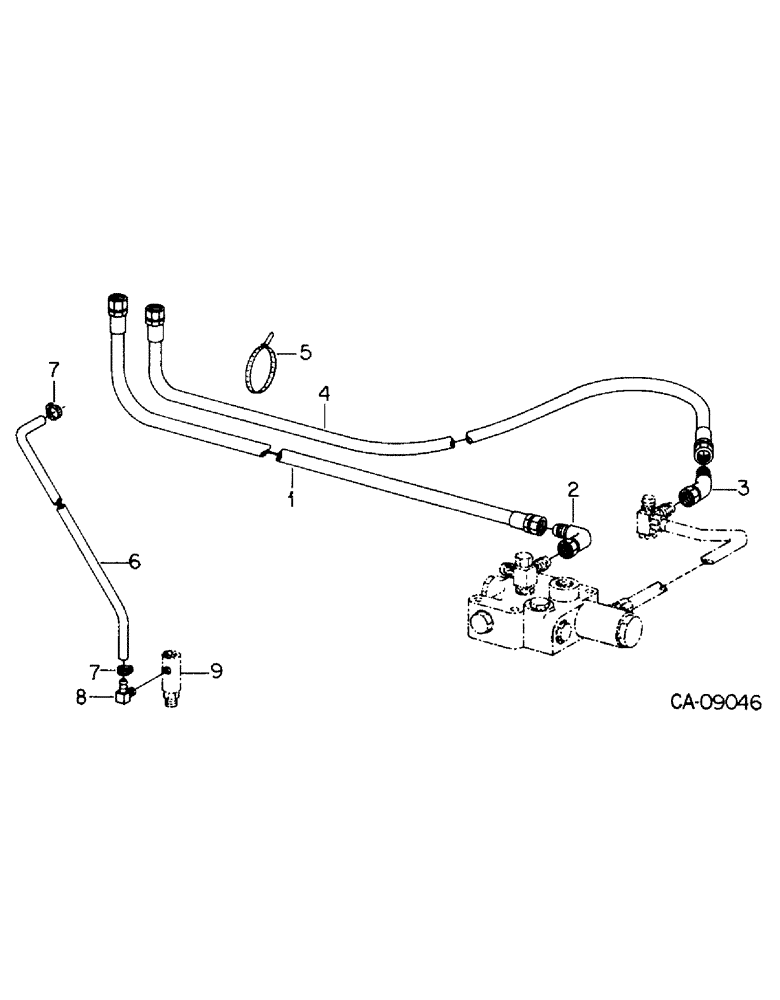

Схема запчастей Case IH 7288 - (10-50) - HYDRAULICS, HYDRAULIC SEAT CONNECTIONS (07) - HYDRAULICS
9
4
2
8
1
3
7
6
7
5

Артикул

Название

Примечание

Количество

1

1280005C1

HOSE

hydraulic pressure

1шт.

2

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel

1шт.

3

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 45D swivel

1шт.

4

1280005C1

HOSE

hydraulic, dump

1шт.

5

111619C1

STRAP

adjustable tie

1шт.

6

1280006C1

HYDRAULIC HOSE,6.35 mm ID x 550.00 mm

- Seat cylinder drain 6.35 mm ID x 550.00 mm

1шт.

299413C1

CLAMP

.812 dia phc coated med clo

1шт.

7

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP

2шт.

8

401967R1

ELBOW

hose barb, 90 degree

1шт.

9

ADAPTER, transmission breather, Refer to range transmission hsg listing in group 7

1шт.

Выбрано товаров: 10
