Запчасти Case IH 7288 (10-48) - HYDRAULICS, HITCH LIFT SINGLE ASSIST CYLINDER, 7288 TRACTOR (07) - HYDRAULICS

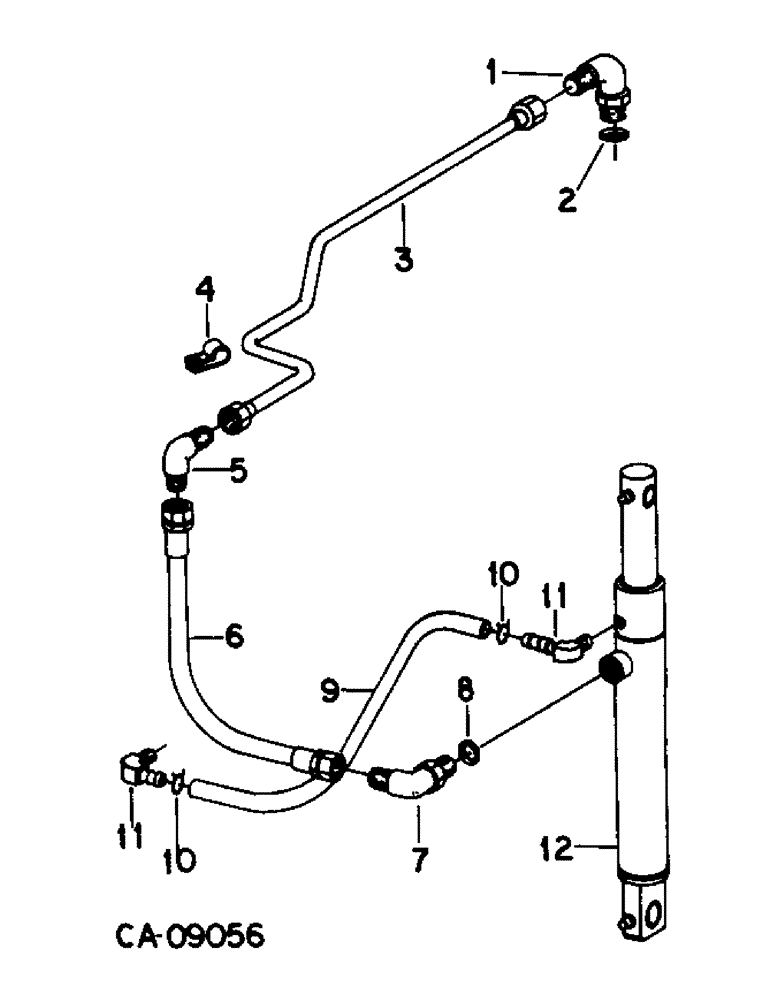

Схема запчастей Case IH 7288 - (10-48) - HYDRAULICS, HITCH LIFT SINGLE ASSIST CYLINDER, 7288 TRACTOR (07) - HYDRAULICS
6
7
11
11
4
5
12
3
10
8
9
2
10
1

Артикул

Название

Примечание

Количество

1

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

3

145517C5

HYD TUBE,0.375" OD, 532.422 mm Length

TUBE ASSY, supply

1шт.

4

299404C1

CLAMP

.375 dia znp coated med clo

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

5

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube 90D elbow

1шт.

6

1269383R1

HOSE ASSY, RH booster cylinder

1шт.

7

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

8

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

9

HOSE, Furnish 310MM from bulk roll marked 427683C1

1шт.

10

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, #5 worm hose

2шт.

11

401967R1

ELBOW

90 deg barb

2шт.

12

149699C4

CYLINDER ASSY.

CYLINDER ASSY, booster 1.50 RAM, See parts catalog cyl-1 for service parts

1шт.

Выбрано товаров: 13
