Запчасти Case IH 7288 (10-46) - HYDRAULICS, HYDRAULIC DRAFT CONTROL LINKAGE (07) - HYDRAULICS

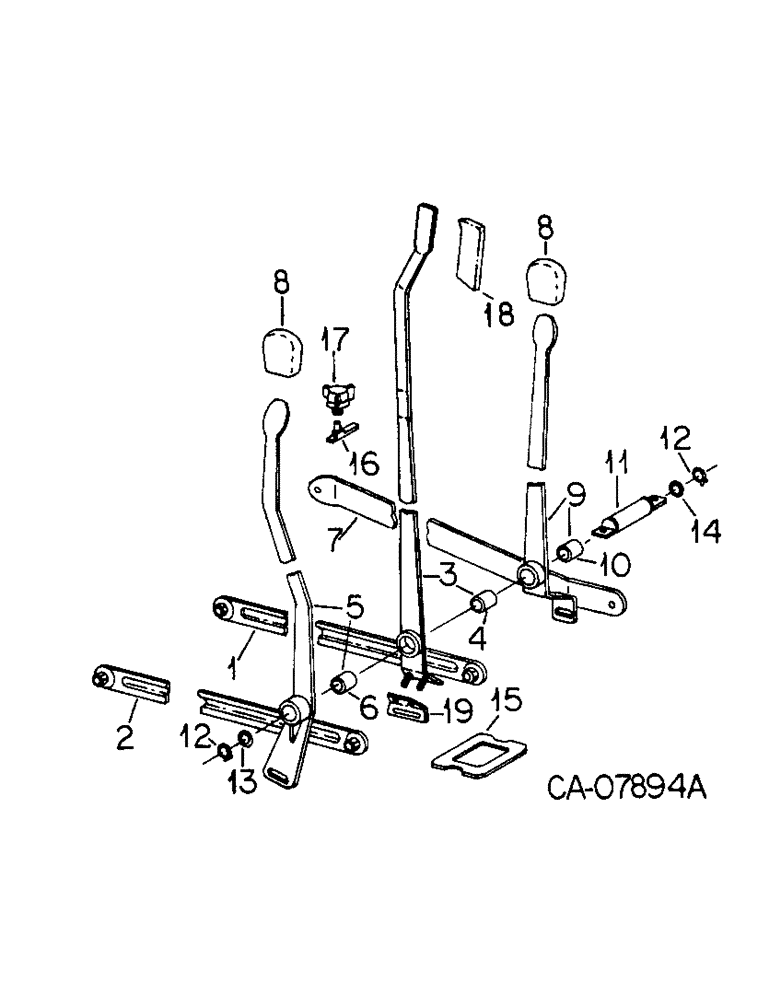

Схема запчастей Case IH 7288 - (10-46) - HYDRAULICS, HYDRAULIC DRAFT CONTROL LINKAGE (07) - HYDRAULICS
8
16
4
5
14
15
12
6
7
13
8
12
10
11
19
1
3
2
9
18
17

Артикул

Название

Примечание

Количество

1

143964C1

LINK

ASSY, position control

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

1шт.

532409R1

SPRING WASHER

serrated spring steel

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

serrated washer hd

1шт.

2

1251610C1

LINK

ASSY, draft control

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

1шт.

532409R1

SPRING WASHER

serrated spring steel

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

serrated washer hd

1шт.

3

1280100C91

HANDLE

ASSY, position control, Includes Ref: 4

1шт.

30986R1

NUT,M8 x 1.25, Flg, Cl 8

M8 class 10 h/flg

2шт.

4

144003C1

BUSHING

1шт.

5

1251596C1

HANDLE

ASSY, draft control, Includes Ref: 6

1шт.

6

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

1шт.

7

143971C1

LINK

raise rate connecting

1шт.

131402H

WASHER

.344 x .562 x .054 pln, Use as required, max 3

1шт.

103363

PIN, SPLIT (COTTER)

PIN, 1/16 x 1 pln cot

1шт.

21903R1

WASHER

.531 x .750 x .054

1шт.

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

5/16-18 shoulder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

1259760C1

BALL KNOB

KNOB, draft position

1шт.

8

1267352C1

KNOB

raise rate control

1шт.

9

1267377C91

HANDLE

ASSY, raise rate control

1шт.

10

144003C1

BUSHING

1шт.

11

104532C2

SHAFT

control pivot

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

12

661652R1

SNAP RING,#75, Ext

Control handle #75, Ext

2шт.

13

16066R1

WASHER

.781 x 1.500 x .054 pln

1шт.

14

16066R1

WASHER

.781 x 1.500 x .054 pln, Use 5 or less as required

5шт.

15

135877C1

SEAL

control platform

1шт.

16

1259806C1

BAR

ASSY, position control

1шт.

20600R1

WASHER

.281 x .750 x .105

1шт.

17

1259821C1

KNOB

fluted

1шт.

18

1259765C1

GRIP

KNOB, position control

1шт.

19

1253150C1

SUPPORT

handle extension

1шт.
