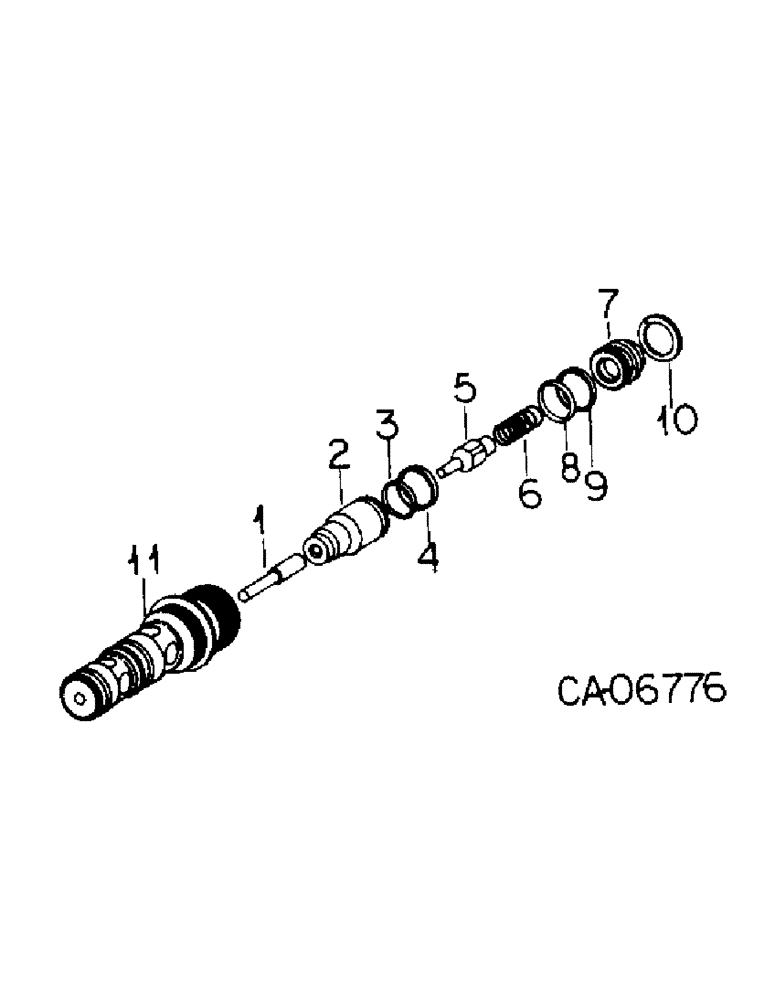

Запчасти Case IH 7288 (10-45) - HYDRAULICS, DROP VALVE ASSY (07) - HYDRAULICS

127835C93

VALVE

ASSY, drop

1шт.

1

123262C1

PIN

actuating

1шт.

2

123264C1

VALVE

POPPET, valve

1шт.

3

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5

1шт.

4

123279C1

RING

sealing

1шт.

5

123265C1

VALVE

POPPET, pilot

1шт.

6

123266C1

SPRING

drop valve

1шт.

7

123267C1

PLUG

drop valve

1шт.

8

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 class 6

1шт.

9

123268C1

RING

o-ring back-up

1шт.

10

123278C1

RING

drop valve retaining

1шт.

11

127838C2

BODY

ASSY, valve

1шт.
