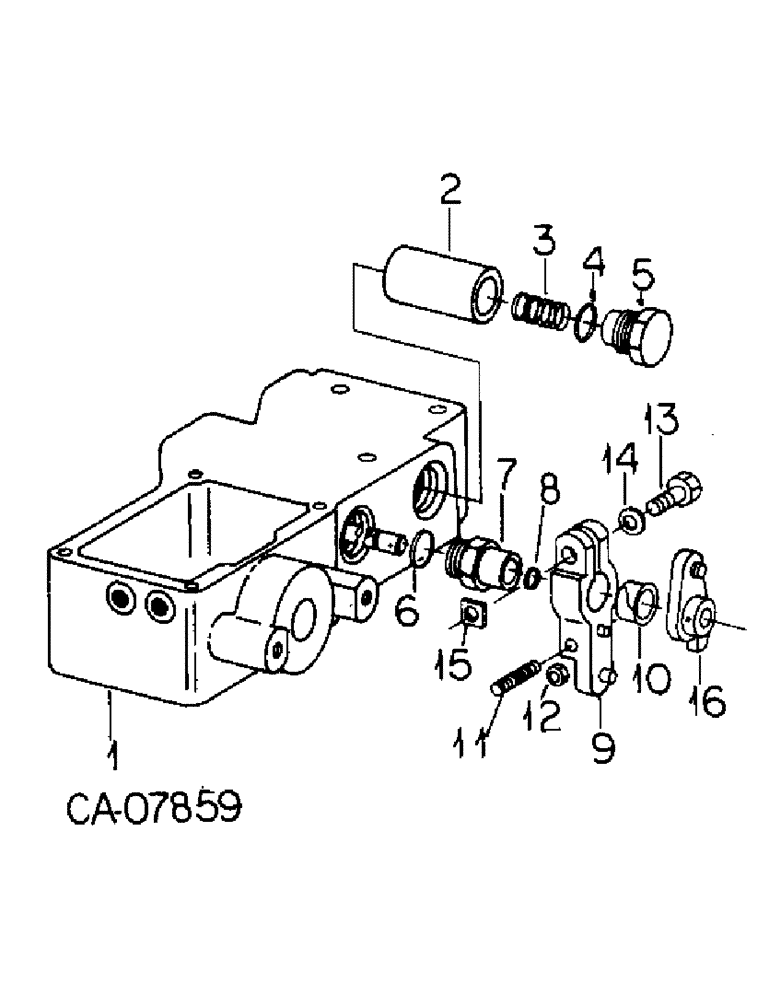

Запчасти Case IH 7288 (10-43) - HYDRAULICS, VARIABLE RAISE CONTROL VALVE (07) - HYDRAULICS

145380C93

VALVE

ASSY, variable raise control

1шт.

1

145381C3

BODY

ASSY W/SPOOL

1шт.

2

142532C1

PISTON

1шт.

3

1252058C1

SPRING

1шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

5

142534C1

PLUG

ASSY, valve spring retaining

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

7

127860C1

RETAINER

spool

1шт.

8

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

9

127854C1

LEVER

ASSY, friction

1шт.

10

532395R1

BUSHING,19.07mm ID x 20.63mm OD x 16.64mm L

BEARING, nylon

1шт.

11

102437

SCREW, 1/4 x 1-3/4 pln o/pt sq/hd set

1шт.

12

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

13

181341

BOLT,Hex, 5/16" - 24 x 1 1/4", Gr 5

5/16-NF x 1-1/4 pln type 5

1шт.

14

532409R1

SPRING WASHER

safety spring

1шт.

15

137544C1

NUT

friction lever

1шт.

16

127856C1

LEVER

ASSY, raise speed control

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.
