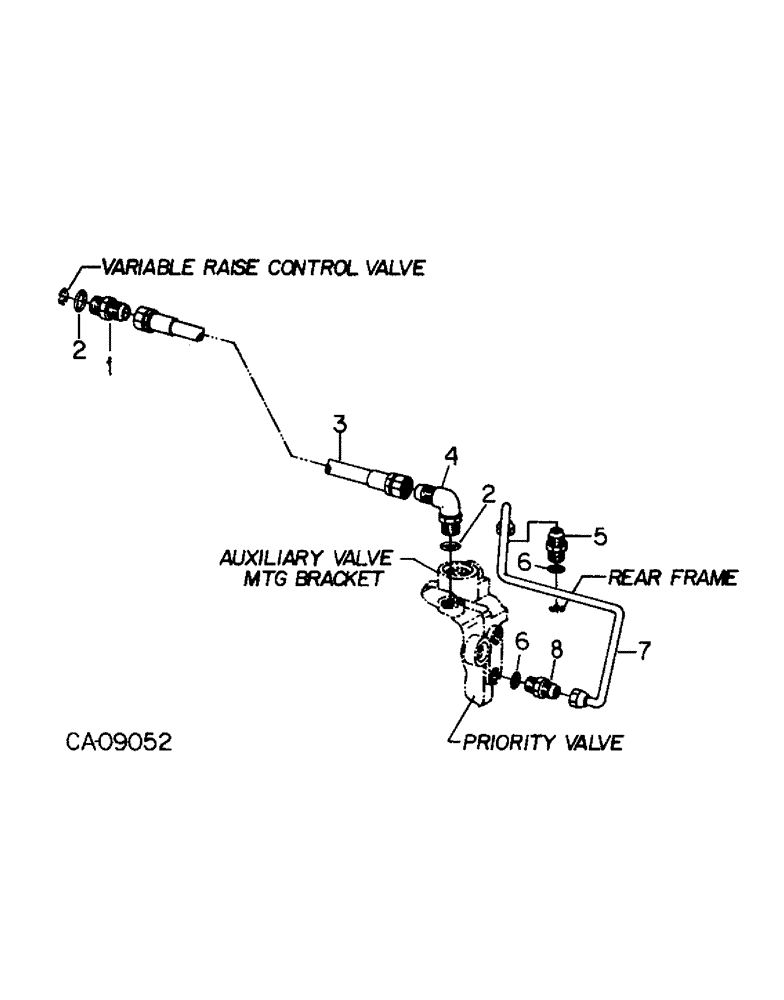

Запчасти Case IH 7288 (10-40) - HYDRAULICS, DRAFT CONTROL SUPPLY AND SIGNAL TUBES (07) - HYDRAULICS

1

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

2шт.

3

1272407C1

TUBE

HOSE ASSY, draft control supply

1шт.

4

1272189C1

ELBOW

3/4 C-Z hyd fld adj 90 deg

1шт.

5

9410201

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

CONNECTOR, 5/16 C-Z hyd fld short swvl

1шт.

7

1269227C1

TUBE ASSY.

TUBE ASSY, draft control signal

1шт.

8

127866C1

VALVE

ASSY, draft control signal check

1шт.

6

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

2шт.
