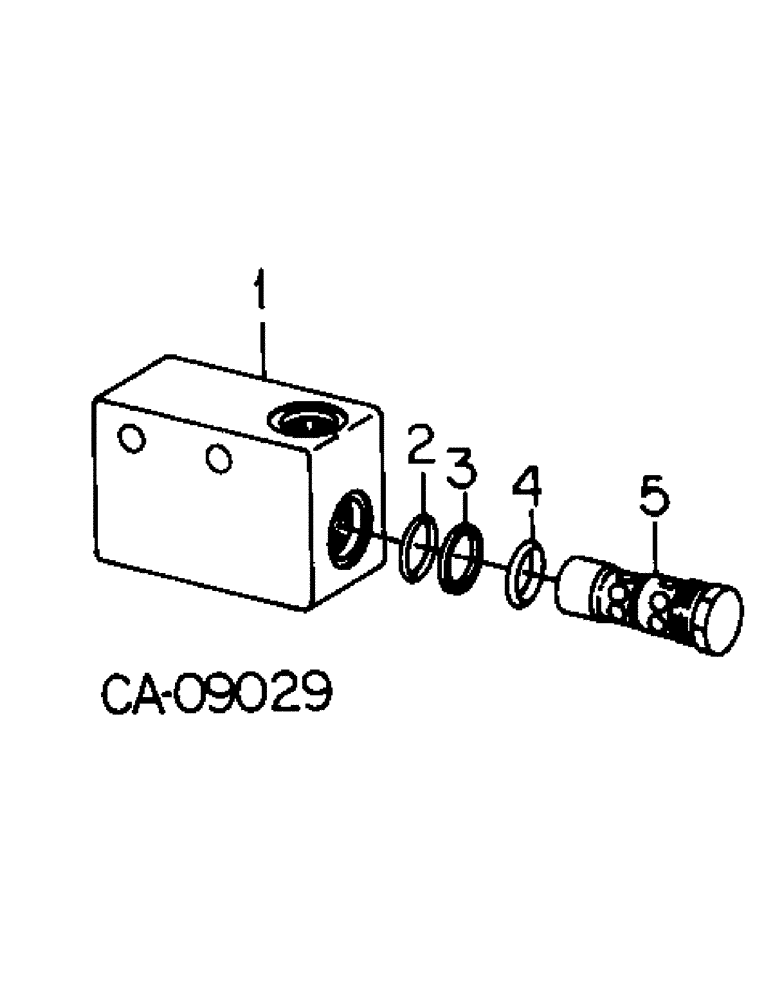

Запчасти Case IH 7288 (10-39) - HYDRAULICS, STEERING RELIEF VALVE (07) - HYDRAULICS

1285706C91

VALVE

ASSY, steering relief, 2950 PSI

1шт.

1

403187R1

BLOCK

1шт.

2

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

3

378985R2

BACK-UP RING

backup

1шт.

4

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 class 5

1шт.

5

1285704R1

VALVE, pilot relief, 2950 PSI

1шт.
