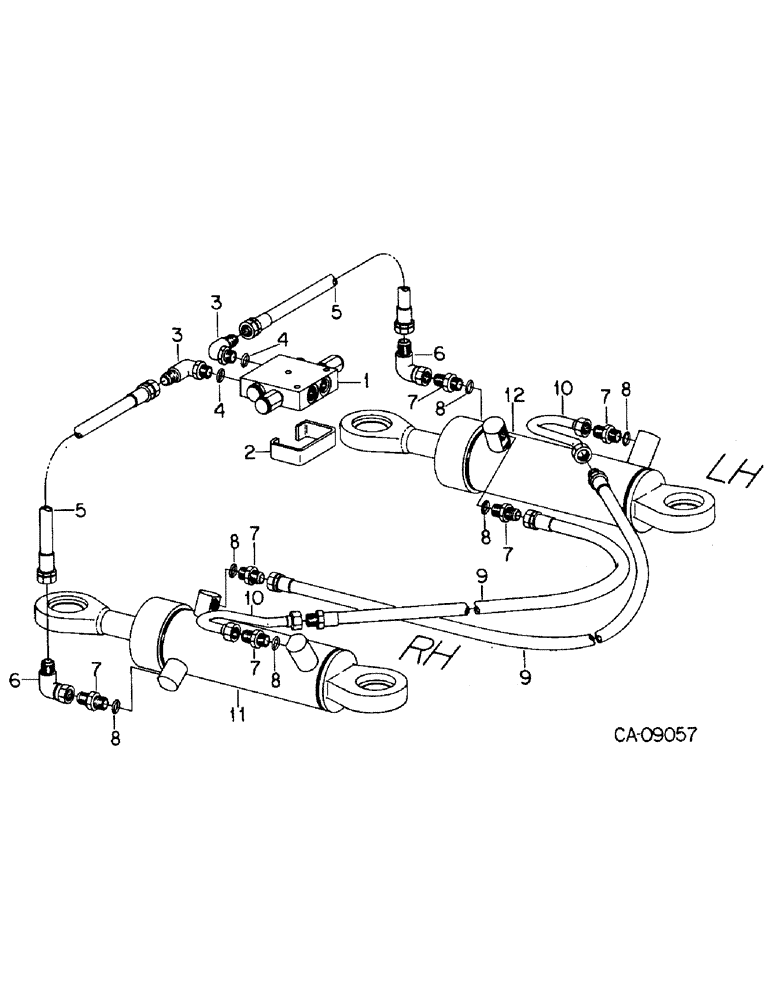

Запчасти Case IH 7288 (10-37) - HYDRAULICS, POWER STEERING CONNECTIONS, STEERING CHECK VALVE TO STEERING CYLINDERS (07) - HYDRAULICS

1

1282439C91

DUST VALVE

VALVE ASSY, power steering alternating check, Service parts not available

1шт.

30578R1

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

M10 x 85 pln class 8.8

3шт.

2

1269099C1

SPACER

valve mounting

1шт.

3

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

C-Z hyd fld adj 5/8 to 1/2 90D

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

5

1269246C2

HOSE,0.50" ID x 21.00"

- Steering cylinder supply 0.50" ID x 21.00"

2шт.

6

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 C-Z hyd fld 90D swivel

2шт.

7

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel

6шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

6шт.

9

1269003C1

HOSE ASSY.

HOSE ASSY, Serial Range: cylinder-cylinder

2шт.

10

1269004C1

TUBE ASSY.,0.5" OD, 121, 83 mm Length

TUBE ASSY, cylinder to cylinder

2шт.

11

CYLINDER ASSY, power steering RH, Refer to power steering cylinders and mounting, this group

1шт.

12

CYLINDER ASSY, power steering LH, Refer to power steering cylinders and mounting, this group

1шт.
