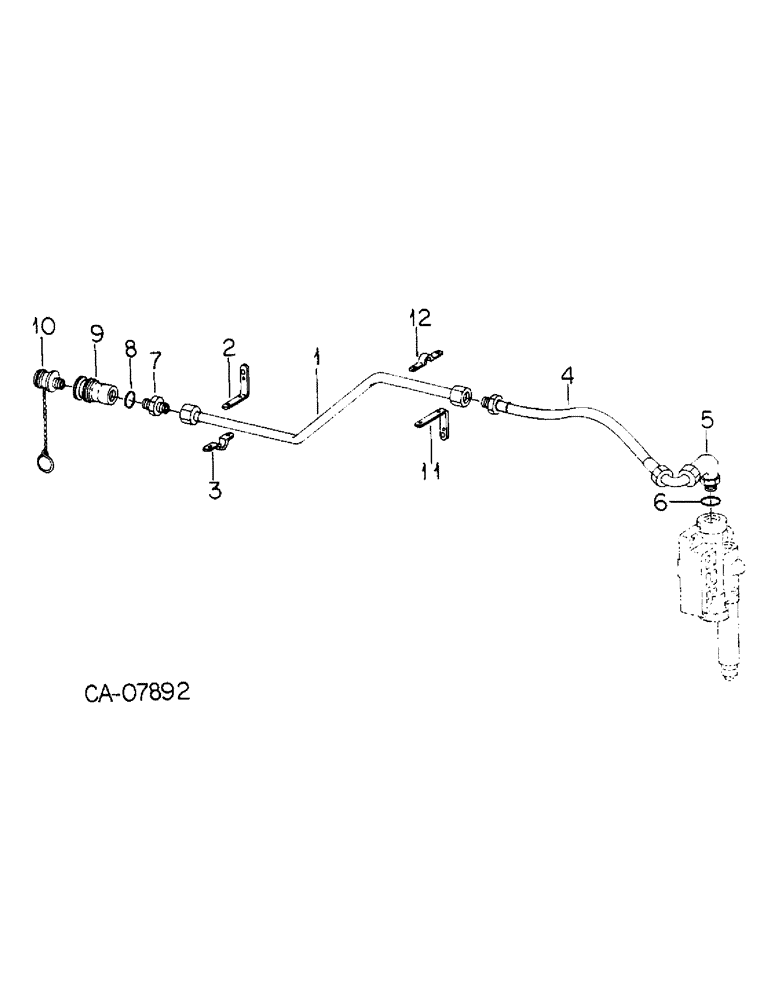

Запчасти Case IH 7288 (10-34) - HYDRAULICS, HYDRAULIC MOTOR RETURN (07) - HYDRAULICS

1

1251987C1

HYD TUBE,0.75" OD, 509, 206.5 mm Length

TUBE ASSY, motor return

1шт.

2

1264685C1

BRACKET

motor return tube, rear

1шт.

931426R1

BOLT,Hex, M16 x 35, 8.8, Full Thd

1шт.

3

1264686C1

CLAMP

motor return tube, rear

1шт.

931951R1

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

M6 x 16 pln class 8.8

2шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.

4

1251988C1

HOSE

ASSY, motor return

1шт.

5

1272189C1

ELBOW

3/4 C-Z hyd flared adj 90 deg

1шт.

6

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

7

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 3/4 to 5/8 sht

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

9

1272400C91

COUPLING

COUPLER ASSY, hyd self sealing str thd, Only serviceable component is

1шт.

1282217C1

SEALING RING

RING, sealing

1шт.

10

401757R1

PLUG ASSY, coupling dust, Only serviceable component is

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust

1шт.

11

1264685C1

BRACKET

motor return tube, front

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

1шт.

12

1264686C1

CLAMP

motor return tube, front

1шт.

931951R1

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

M6 x 16 pln class 8.8

2шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.
